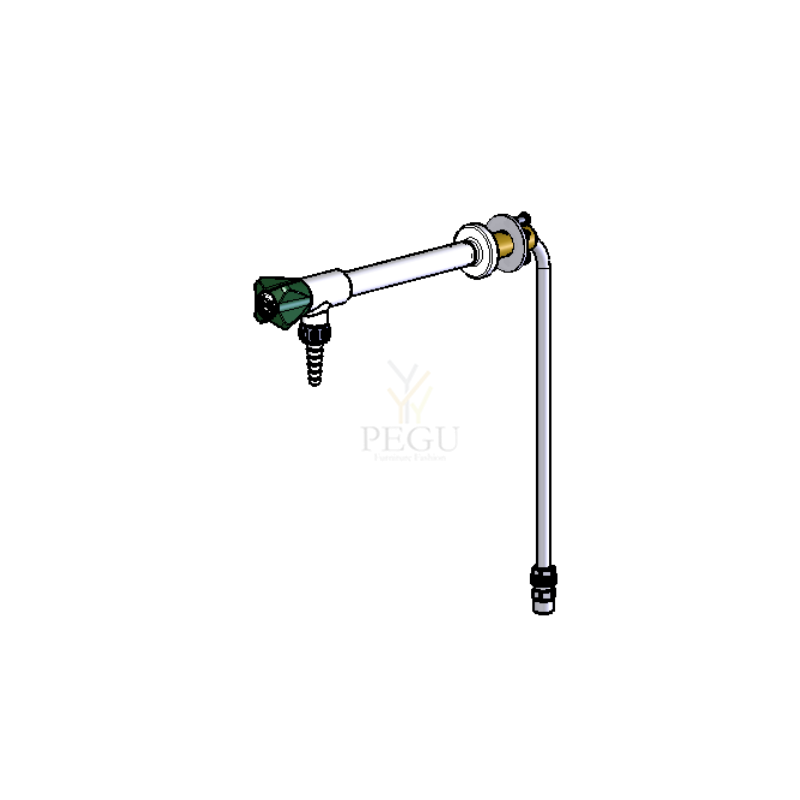

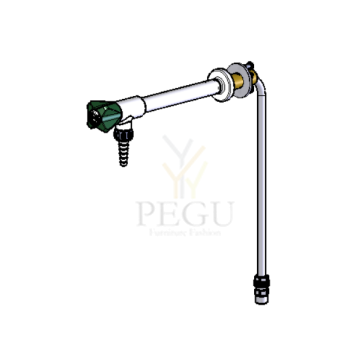

Broen deioniseeritud veele kraan  25330351036-09.png Zoom

Broen Lab Kraan deioniseeritud vesi S200mm, seinast PVDF

Tootekood: BR-25330351036-09
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Hind:
597,80 €
Kuumakse alates: 51,05 €
Kogus: - +
   - või -

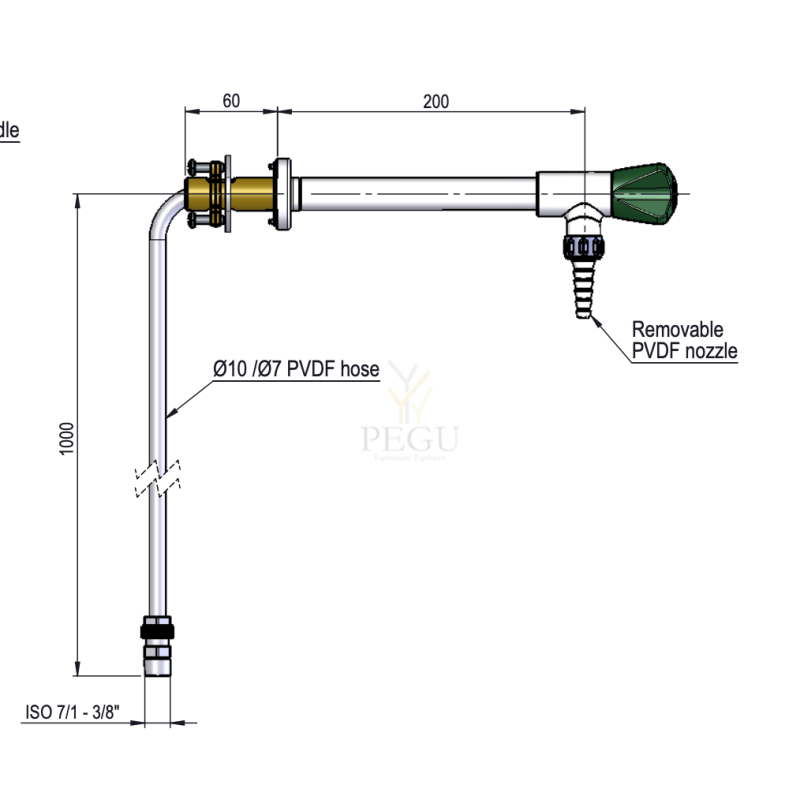

Broen Lab Kraan deioniseeritud vesi S200mm, seinast PVDF

S P E C I F I C AT I O N S
Handle: Metal, BROEN-LAB POLYCOAT powder coated

with media indication according to EN13792
Hose nozzle: Removable/external G3/4 thread, metalHeadwork: Diaphragm type
Opening/closing function: 1 1/2 x 360°Temperature range: 0-65°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 0.9 kg

MATERIALS WITH MEDIA CONTACT

Metals: Stainless Steel, AISI 316Diaphragm: PTFE
Rubber: EPDM

ORDERING INFORMATION

For standard configuration please refer to the item numbers below.

Sarnased tooted
R/V teras veetrapp, D75 mm vertikaalne, 150x150mm
On võimalik versioonid , vertikaalsed, horisontaalsed D50mm,75mm,110mm





PV 01

stainless steel floor trap






PV 01 is a fully stainless floor trap with braz designed to drain showers, industrial premises and other inner spaces. The trap is designed as stepping (not driven-over). The trap is made of AISI 304 quality stainless steel. Detergents containing chlorine must not be used for cleaning. If chlorine is contained in the environment, we recommend custom-made model of another material (e.g. AISI 316).

For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

We produce other custom-made models – outlet d = 50 mm, 110 mm; without rim for waterproofing; alternative cover grid (mesh); without braz; with adjustable height, etc. Send us your requirements, we will promptly answer!



Version types
PV 01.D.75.P - floor trap d = 75 mm, smell trap, outlet down, rim for waterproofing, not adjustable
PV 01.D.75.S - floor trap d = 75 mm, smell trap , outlet down , rim for waterproofing, adjustable
PV 01.B.75.P - floor trap d = 75 mm, smell trap , outlet to the side, rim for waterproofing, not adjustable
PV 01.B.75.S - floor trap d = 75 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.50.P - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.50.S - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.50.P - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.50.S - - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.110.P - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.110.S - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.110.P - floor trap t d = 110 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.110.S - floor trap d = 110 mm, smell trap , outlet to the side , rim for waterproofing , adjustable


Basic technical information
Minimum inner diameter: 70 mm
Diameter of connecting sewerage pipe: 75 mm
Water flow: min. 50 lts / min
Loading class: K3
Weight: 2,2 kg


Complete delivery
  • Trap body
  • Grid with braz cover
  • Hook to pull up the grid





Requirements for setting up the construction
  1. Completed sewerage drains terminated by DN 75 coupling
  2. Prepared hole in the floor with diameter min. 300 mm (200 mm without rim for waterproofing) and depth min. 120 mm

Tootekood: AZP-PV 01.D.75.P ,   Tarneaeg: 3-4 nädalad
423,00 €
Weight: Approx. 7.5 kg
Eye shower, free standing,
anti-corrosive
Built-in FLOWFIX for
regulation of water fl ow
(26 l/min). Min. working
pressure: 1.5 bar.
Tootekood: B-17962004 ,   Tarneaeg: 14-21 день
2568,10 €

Min. working pressure: 1.5 bar for all Eye Showers

Tootekood: B-27100091005011 ,   Tarneaeg: 14-21 päeva
463,60 €

Broen Lab PP labori valamu 552x400x235 (PxLxK) valge

Sees 492x282 (vajab põhjaklappi 97B0073)

SPECIFICATIONS
Temperature range: 0-80°C
Standard colour: valge
Net weight: 2.2 kg
Dimensions: external 552 x 400 x 237mm (tolerance ± 1mm)
The rectangular sink with its self draining base are injection moulded from polypropylene copolymer resin. Designed for mounting on top or underside of work benches.
Tootekood: B-97B0552W ,   Tarneaeg: 7-14 päeva
142,33 €

Keha hädaabidušš ukse SOS, seinale kinnitatud ukse kohale 3/4"

Tootekood: BR-17587009 ,   Tarneaeg: 7-14 päeva
708,21 € (10%)
786,90 €
Projektide hinnapäringud ja tooteinfo kättesaadavusega seotud küsimused palume saata e-mailile info@pegu.ee
