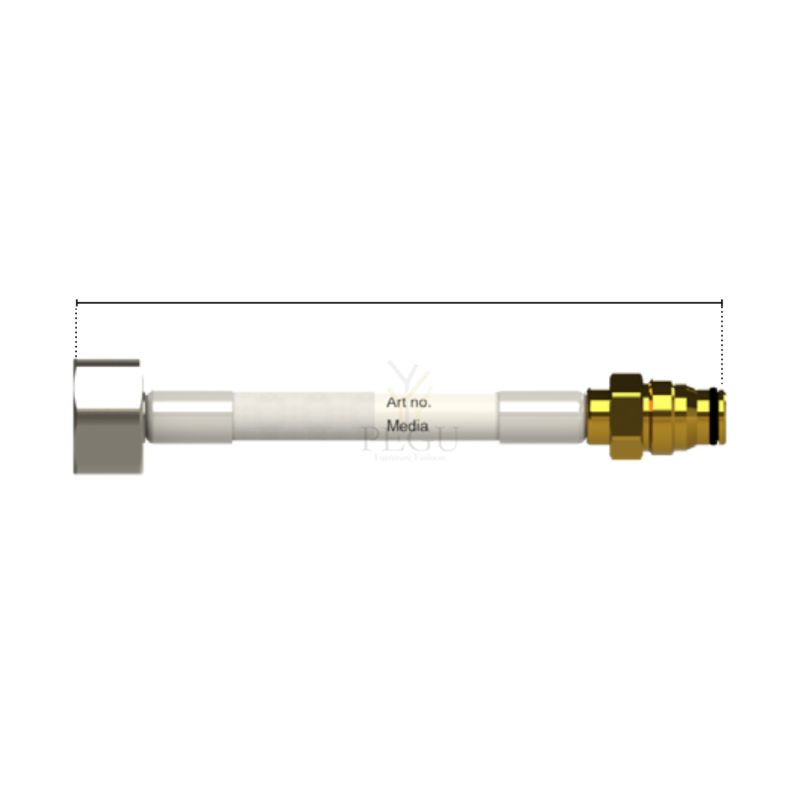

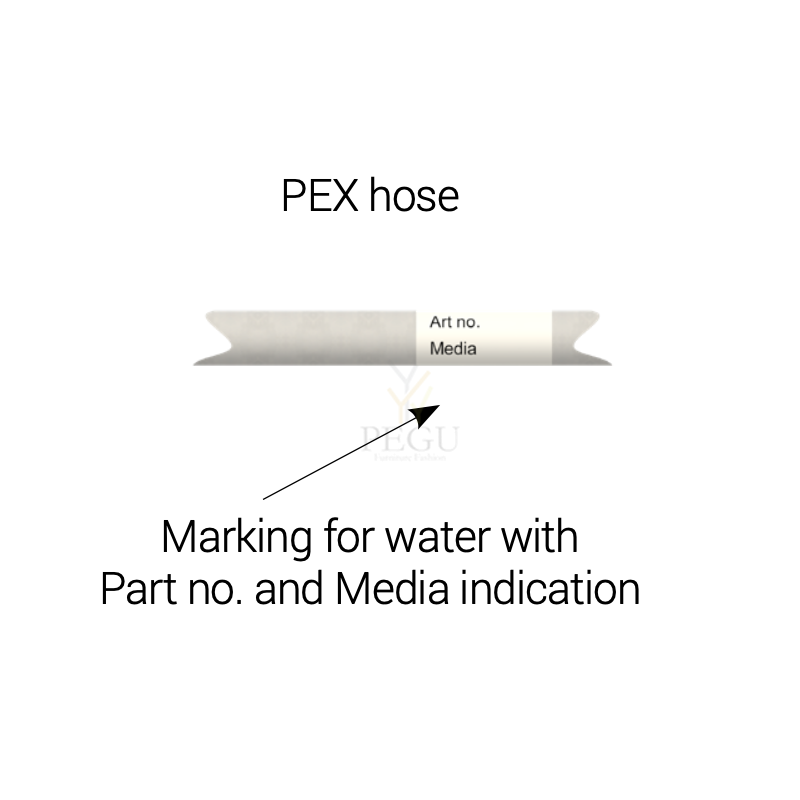

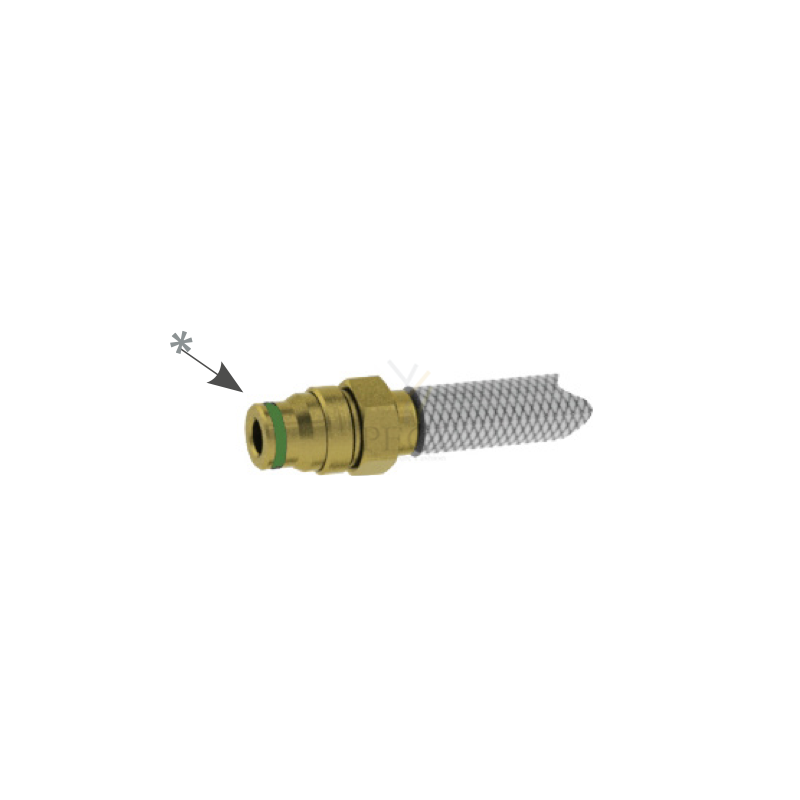

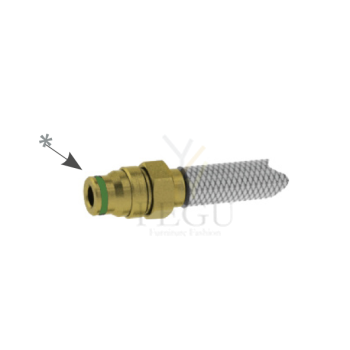

Broen vee voolik, PEX 1000mm, Uni Flex-1/2" H2O
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päev
Müüja: PEGU OÜ
Hind:
46,00 €
Broen vee voolik, PEX 1000mm, Uni Flex-1/2" H2O
Sarnased tooted
S P E C I F I CATIONS
The fitting is delivered with an integrated BALLOFIX® ball valve.
Handle: Metal, BROEN POLYCOAT powder coated
with media indication according to EN13792
Spout: Full swivel action
Hose nozzle: Removable metal
Headwork: Ceramic
Opening/closing function: 180° (wrist action lever: 90°)
Temperature range: 0-90°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 3 kg
MATERIALS WITH MEDIA CONTACT
Metals: Brass
Plastics: POM, PTFE, SPX (hose)
Sealing: EPDM
Lubricant: Silicone based
Ceramics: Al2O3 96%
Solder: DIN L-Ag55:Sn
ORDERING INFORMATION
For standard configuration please refer to the item
numbers below.
Other options:
- aerator
- fixed hose nozzle
- integrated non-return valve
- alternative hose inlet connection / without a hose
- other inlet options (type, length)
- national approvals
Tootekood: B-25360131039-52B
, Tarneaeg: 3-4 päeva
353,80 €
Sees 492x282 (vajab põhjaklappi 97B0073)
SPECIFICATIONS
Temperature range: 0-80°C
Standard colour: black
Net weight: 2.2 kg
Dimensions: external 552 x 400 x 237mm (tolerance ± 1mm)
The rectangular sink with its self draining base are injection moulded from polypropylene copolymer resin. Designed for mounting on top or underside of work benches.
Tootekood: B-97B0552
, Tarneaeg: 2-3 nädalad
140,30 €
S P E C I F I CATIONS
The fitting is delivered with an integrated BALLOFIX® ball valve.
Handle: Metal, BROEN POLYCOAT powder coated
with media indication according to EN13792
Spout: Full swivel action
Hose nozzle: Removable metal
Headwork: Ceramic
Opening/closing function: 180° (wrist action lever: 90°)
Temperature range: 0-90°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 1.4 kg
MATERIALS WITH MEDIA CONTACT
Metals: Brass
Plastics: POM, PTFE, SPX (hose)
Sealing: EPDM
Lubricant: Silicone based
Ceramics: Al2O3 96%
ORDERING INFORMATION
For standard configuration please refer to the item
numbers below.
Other options:
- aerator
- fixed hose nozzle
- integrated non-return valve
- fixed spout
- alternative hose inlet connection / without a hose
- other inlet options (type, length)
- national approvals
- WPH (Water Potable Hot)
- WNH (Water Non-Potable Hot)
Tootekood: B-25340011001-52B
, Tarneaeg: 3-7 päeva
226,01 € (5%)
237,90 €
237,90 €
8 l/min
Tootekood: B-17702000
, Tarneaeg: 7-14 päeva
451,40 €
S P E C I F I C AT I O N S
Handle: Metal, BROEN-LAB POLYCOAT powder coated
with media indication according to EN13792
Hose nozzle: Removable/external G3/4 thread, metalHeadwork: Diaphragm type
Opening/closing function: 1 1/2 x 360°Temperature range: 0-90°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 0.9 kg
MATERIALS WITH MEDIA CONTACT
Metals: Stainless Steel, AISI 316Diaphragm: PTFE
Rubber: EPDM
ORDERING INFORMATION
For standard configuration please refer to the item numbers below.
Tootekood: B-25330021036
, Tarneaeg: 14-21 päeva
359,90 €
