400 x 298 x 120 mm
ca. 500 paper towels / 500 ml soap bottle

• Combination consisting of a liquid soap dispenser and a paper towel dispenser in robust, germ-reducing and easy-care stainless steel (AISI 304).
• All-stainless steel housing; all corners fully welded, visible surfaces satin finished and brushed.
  Further available surfaces: see below.
• Liquid soap dispenser with one-hand operated and non-drip soap pump.
• Designed for standard 500 ml disposable bottles of liquid soap or hand lotion.
• Paper towel dispenser with deep-drawn paper removal opening for easy paper removal.
• Designed for approx. 500 standard paper towels in zigzag fold. Paper size (folded): 240-250 mm x 100-115 mm.
• Inspection slots to indicate fill level.
• Accessible for refilling through lockable front flap with fall protection.
• Keyed alike cylinder lock in corrosion-resistant zinc die-casting.
• Wear parts can be replaced as modules.
• Mounting: With four screws through key holes and one optional anti-theft hole in the back wall.
• Delivery includes fixing material, first fill with soap and one pack of paper towels.

• Weight (in kg): 4,4

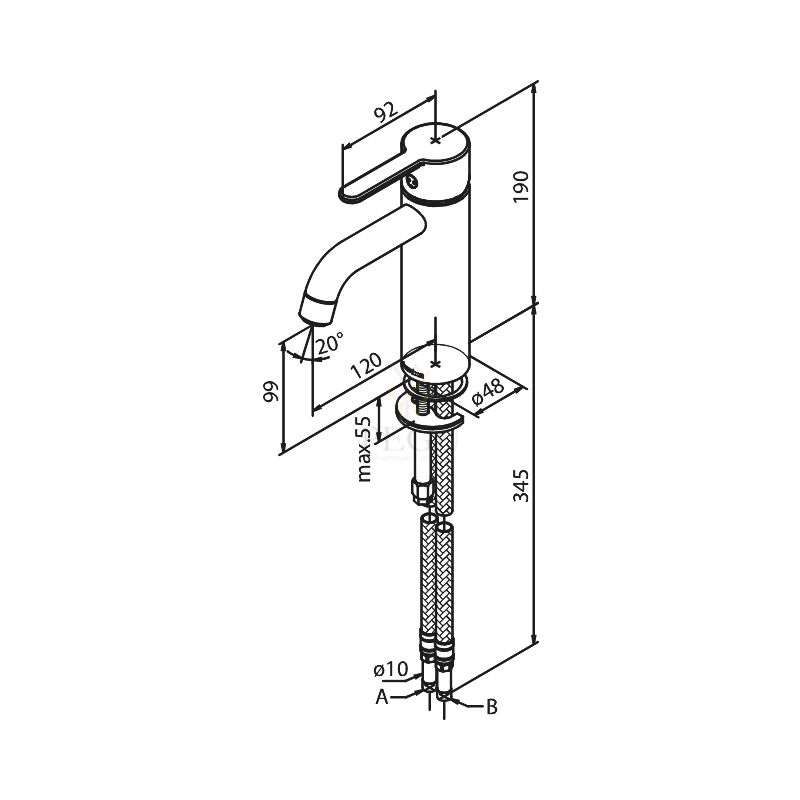

Ø 45 x 283 x 185 mm
low pressure

• Single-lever basin tap without waste fitting in robust, germ-reducing and easy-care stainless steel (AISI 303).
• Version: low pressure, suitable for unpressurised tanks. Operating pressure 2–6 bar.
• Solid stainless steel body; visible surfaces satin finished.
  Further available surfaces: see below.
• High quality ceramic mixer cartridge with adjustable temperature limit setting (scald protection).
• Neoperl® air bubble spray M21 x 1 mm.
• Design height: 283 mm
  Outlet height: 199 mm
  Projection: 98 mm
  Length of lever: 140 mm

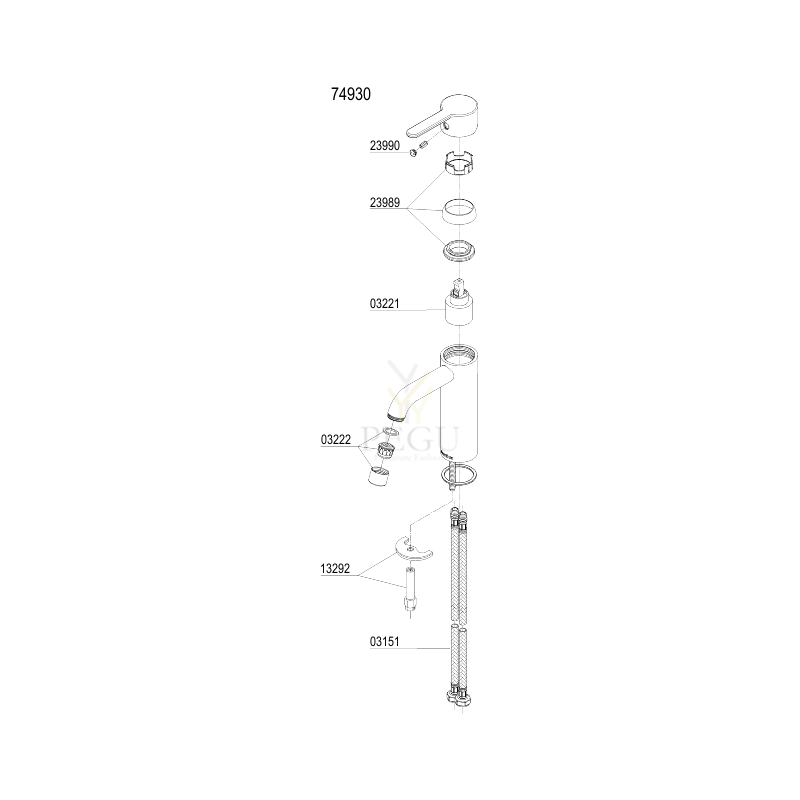

• Wear parts can be replaced as modules.
• Installation dimensions: Ø 33-40 mm, surface thickness max. 40 mm
• Mounting: With one counternut.
• Delivery includes fixing material and three flexiblen, stainless steel covered connecting tubes.

• Weight (in kg): 2,00

298 x 298 x 121 mm
950 ml soap bottle / 950 ml tank disinfectant / 950 ml bottle lotion

• Sensor combination consisting of a sensor liquid soap-, disinfectant- and lotion dispenser in robust, germ-reducing and easy-care stainless steel (AISI 316L).
• All-stainless steel housing; all corners fully welded, visible surfaces satin finished and brushed.
  Further available surfaces: see below.
• Sensor soap or lotion dispenser with EWAR® eModuletouch-free operated and non-drip soap and lotion pump.
  Designed for standard 950 ml disposable bottles of liquid soap or lotion. Also refillable with large container using the plug-in tank as an option
• Sensor disinfectant dispenser with EWAR® eModule touch-free operated disinfectant pump with 950 ml tank arranged in the middle. Designed for standard disinfectants.
• Note: Not approved for medical areas.
• Inspection slots to indicate fill level.
• Accessible for refilling through lockable, hinged housing.
• Keyed alike cylinder lock in corrosion-resistant zinc die-casting.
• eModule battery-powered with two 1.5 V Baby/LR14 batteries.
  Power supply available as an option.
• Wear parts can be replaced as modules.
• Mounting: With four screws through key holes and one optional anti-theft hole in the back wall.
• Delivery includes fixing material, batteries and first fill with soap and lotion.

• Weight (in kg): 6,4
