600 x 600 x 130 mm
sensor with 950 ml soap bottle / ca. 750 paper towels

• Mirror cupboard with integrated sensor liquid soap dispenser and paper towel dispenser in robust, germ-reducing and easy-care stainless steel (AISI 304).
• All-stainless steel housing; visible surfaces satin finished and brushed.
• Crystal mirror with all round 2 mm chamfer and frosted window for optional lighting set.
• Sensor liquid soap dispenser with EWAR® eModule touch-free operated soap pump.
• Designed for standard 950 ml disposable bottles of liquid soap or hand lotion.
• Also refillable with large container using the plug-in tank as an option.
• Paper towel dispenser with deep-drawn paper removal opening for easy paper removal.
• Designed for approx. 750 standard paper towels in zigzag fold. Paper size (folded): 240-250 mm x 100-115 mm.
• Accessible for refilling through lockable door.
• Keyed alike cylinder lock in corrosion-resistant zinc die-casting.
• eModule battery-powered with two 1.5 V Baby/LR14 batteries.
  Power supply available as an option.
• Wear parts can be replaced as modules.
• Lighting set available as an option.
• Mounting: With four screws through key holes and one optional anti-theft hole in the back wall.
• Delivery includes fixing material, batteries, first fill with soap and one pack of paper towels.

• Weight (in kg): 19,8

12 bottles x 500 ml
310 x 195 x 195 mm

Biologically degradable.
Packacking unit: 12 bottles x 500 ml; 7,0 kg

SUITABLE FOR:

• WP 101
• WP 101E
• WP 173
• WP 173E
• WP 174-2
• WP 174E-2
• WP 550
• WP 550E

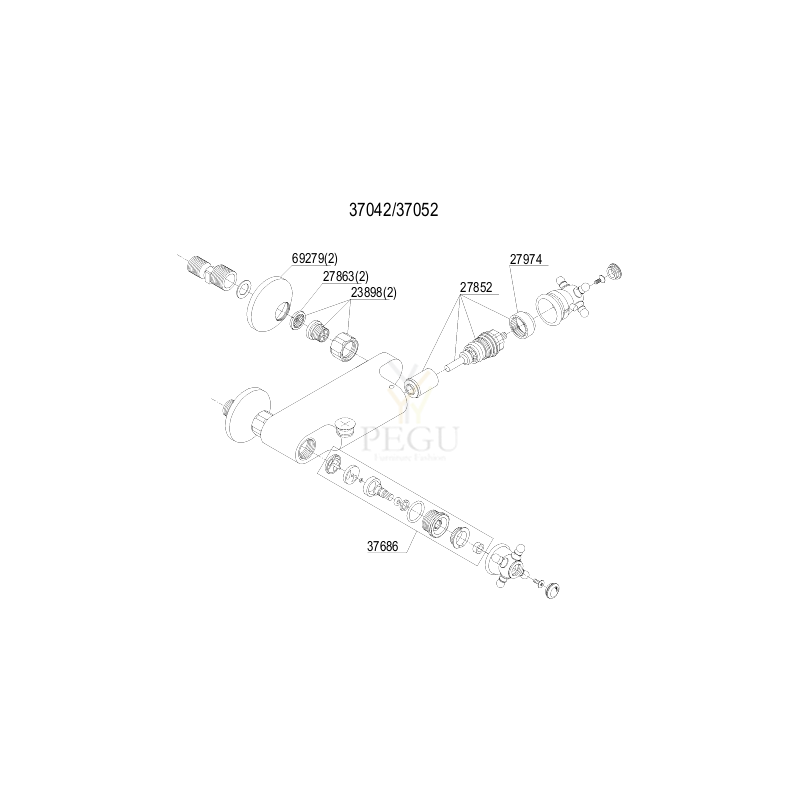

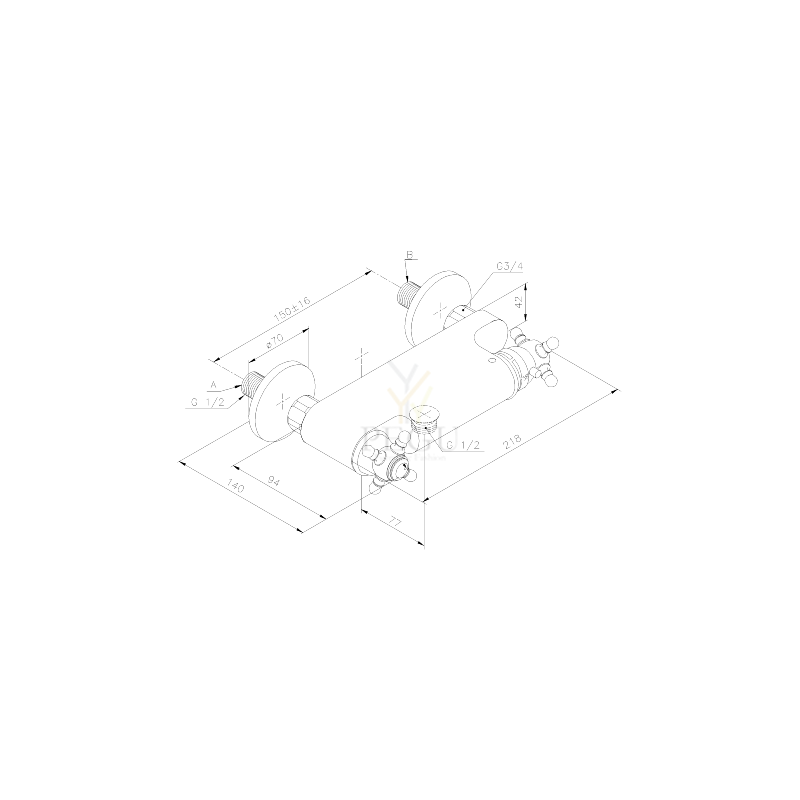

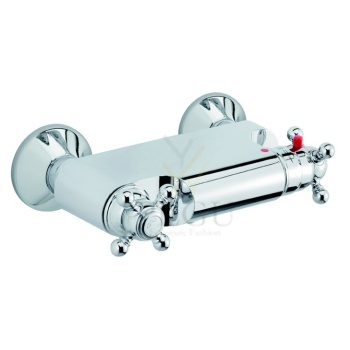

PREMIX NANO thermostatic mixing valve
Ref. 732116
