Delabie Be-line invatugi d35MM L300mm Antracite aluminim
Kaubamärk:
![Delabie-PEGU](https://www.pegu.ee/media/gavial/.image/brand-thumb/general/SEnda/DELABIE_C100M35.jpg)
Ühik: tk
Tarneaeg: 14-21 päeva
Kohustuslik märge projekti spetsifikatsioonis: PEGU OÜ
Description

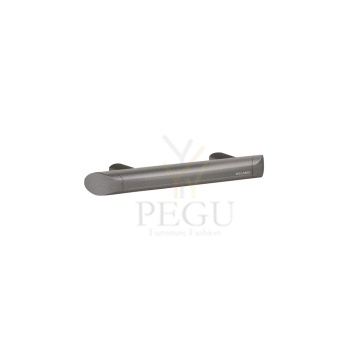

Be-Line® anthracite straight grab bar Ø 35mm, L. 300mm
Ref. 511903C
Be-Line® grab bar Ø 35mm, for people with reduced mobility.
For use as a handrail or grab bar for WCs, showers or baths.
Aluminium tube, 3mm thick. Solid aluminium fixing points.
Rounded profile Ø 35mm with ergonomic flat front face that prevents rotation for an optimal grip.
Metallised anthracite powder-coated finish provides a good visual contrast with the wall.
Uniform surface for easy maintenance and hygiene.
38mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Concealed fixings.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
300mm centre-to-centre.
Tested to over 200kg. Maximum recommended user weight: 135kg.
Technical features
Be-Line® anthracite straight grab bar Ø 35mm, L. 300mm
Ref. 511903C
Length | 300mm |
---|---|
Width to the wall | 38mm |
Thickness | 3mm |
Finish | Metallised anthracite powder-coated aluminium |
Haceka Kosmos kroom vannikäepide seinale 30CM
30,00 €
Nova2 Care
Technical specifications
Dimensions 825 x 807 x 100 mm
Bar and leg diameter Wall plate thickness Ø 32 mm 3,0 mm
Paper roll dispenser diameter Ø 10 mm
General description
-
Wall-floor grab bar, with three support points, made of a diameter of 32 mm AISI 304 stainless steel tube, bent in an "L" shape at 90o and with a 32mm diameter lateral arm, welded on the lower part of the grab bar and also bent at 90°.
-
With snap flange covers that conceal the installation screws, improving the aesthetics of the bars once installed on the wall.
-
These grab bars offer a great safety and comfort to the user, helping to make the bathroom much safer for the elderly or those with reduced
mobility. Models suitable for public use.
-
Well suited for keeping bathrooms and public enclosures barrier-free.
-
Highest durability and great resistance to rusting.
-
Optionally, these grab bars can be electrically isolated, installing the electrical isolation kit code KA0020.
-
Supplied with plugs and screws to fix the bar to a brick wall.
Components and materials
-
BSD020C: right hand grab bar made of AISI 304 stainless steel tube, bright finish.
-
BSI020C: left hand grab bar made of AISI 304 stainless steel tube, bright finish.
-
BSD020CS: right hand grab bar made of AISI 304 stainless steel tube, satin finish.
-
BSI020CS: left hand grab bar made of AISI 304 stainless steel tube, satin finish.
-
TUBING: made of a 32 mm diameter tube, seamless construction. The bending process guarantees the uniformity of the diameter along the bends.
-
CONCEALED MOUNTING FLANGE: three units made of AISI 304 stainless steel, 3 mm thick. Incorporates two Ø 6.5 mm screw holes for wall mounting.
-
SNAP FLANGE COVER: three units made of AISI 304 stainless steel, 0.8 mm thick and Ø 82 mm. Each cover snaps over mounting flange to conceal mounting screws.
-
General description
L454 x L869 mm
-
Grab bar, 90o angle to the right (BAD090C & BAD090CS) or to the left (BAI090C & BAI090CS) with snap flange cover, made of stainless steel AISI 304, for showers, baths and changing rooms.
-
These grab bars are very useful and highly recommended to achieve barrier-free accessibility both residential and public spaces.
-
Concealed screw mounting flanges.
-
Highest durability and rusting resistance.
-
Mounting hardware for brick wall is included for easy installation.
Components and materials
-
BAD090C & BAI090C: AISI 304 stainless steel, bright finish.
-
BAD090CS & BAI090CS: AISI 304 stainless steel, satin finish.
-
TUBING: made of 32 mm diameter tube, seamless construction. The bending process guarantees the uniformity of the diameter along
the bends.
-
CONCEALED MOUNTING FLANGE: three units made of AISI 304 stainless steel, 3 mm thick. Incorporates two Ø 6.5 mm screws holes
for wall mounting.
-
SNAP FLANGE COVER: three units made of stainless steel AISI 304, 1.5 mm thick and Ø 82 mm. Each cover snaps over mounting
flange to conceal mounting screws.
