Delabie hädaabidušš kehale ja silmadele 9203

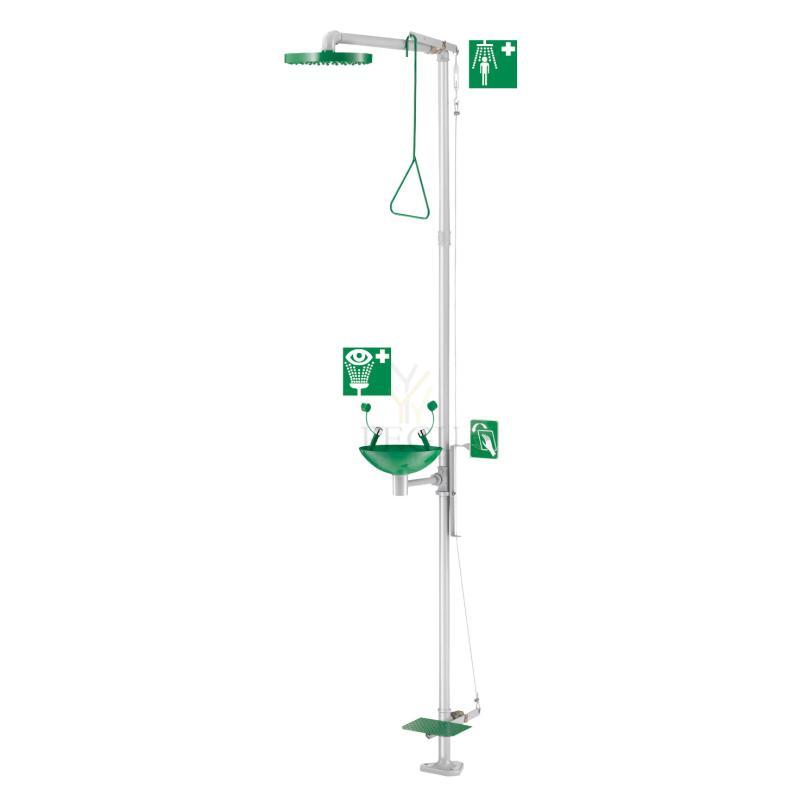

Eye wash and safety shower combination
Ref. 9203
Free-standing eye wash and safety shower combination with manual or foot control includes:
Frost-free system as standard.
304 stainless steel basin Ø 250mm with green finish.
Eye wash spray heads fitted with protective caps in shock-resistant green ABS; will eject automatically when activated.
Flow rate 20 lpm at 3 bar, aerators have stainless steel double filters.
Circular shower head Ø 250mm in green, shock-resistant ABS.
Flow rate 70 lpm at 1 bar dynamic pressure (120 lpm at 3 bar dynamic pressure).
Water supply F1".
Pipework made from galvanised steel, grey powder-coated finish. Triangular pull handle in green powder-coated brass. Hand and foot controls in green powder-coated galvanised steel.
Fixed to the floor by a brass base plate (screws not included).
Supplied with identification signs for first aid equipment: "Safety Shower" and "Eye Wash".
Operation:
1/4-turn, nickel plated brass valves open and close quickly.
Simultaneous Eye Wash and Shower:
Water flows simply by pulling on the triangular handle.
The flow will continue even when the handle is released.
The flow will stop when the handle is returned to its original position.
Eye Wash only:
Water flow is operated by the foot pedal or the hand control. The eye wash will continue to flow when the pedal or hand control is released.
The water flow will stop when the hand control is pulled towards the user or the foot pedal is raised.
10-year warranty.
The water does not shut off automatically, allowing the injured person to have both hands free (to remove their clothing, keep their eyes open, etc.).

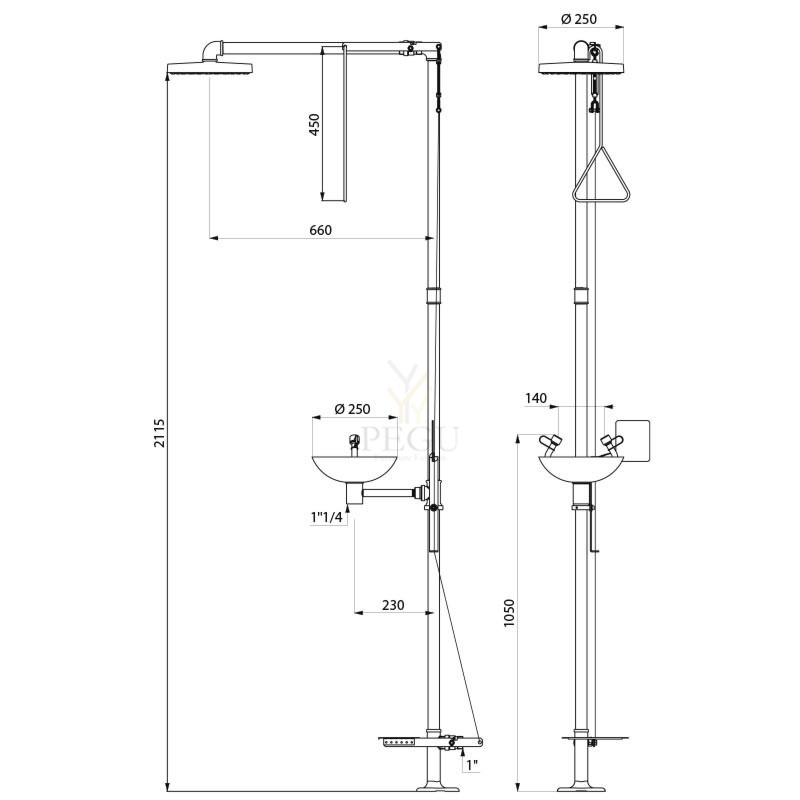

TECHNICAL FEATURES
Eye wash and safety shower combination
Ref. 9203
Supply | F1" |
---|---|
Height | 2207mm |
Length | 660mm |
Drop height | 2115mm |
Flow rate | 120 lpm at 3 bar dynamic pressure |
Free-standing eye wash station
Ref. 9201
Free-standing eye wash station with manual and pedal control includes:
Frost-free system as standard.
304 stainless steel basin Ø 250mm, green powder-coated finish.
2 eye wash spray heads fitted with protective caps in shock-resistant green ABS; will eject automatically when activated.
1/4-turn, nickel-plated brass valves open and close quickly.
Water flow is activated by hand or foot control. The eye wash will continue to operate when the hand or foot control is released. The flow stops when the hand control is pulled towards the user or the foot pedal is raised.
Flow rate 20 lpm at 3 bar.
Aerators with stainless steel double filters.
Water supply F1".
Pipework made from galvanised steel, grey powder-coated finish.
Hand and foot controls in green powder-coated galvanised steel.
Fixed to the floor by a triangular brass plate (screws not included.)
Supplied with identification sign for first aid equipment: "Eye Wash".
TECHNICAL FEATURES
Free-standing eye wash station
Ref. 9201
Height | 1050mm |
---|---|
Depth | 500mm |
Flow rate | 20 lpm |
Finish | Epoxy |
Wall-mounted eye wash station
Ref. 9102
Wall-mounted eye wash station with manual control includes:
304 stainless steel basin Ø 250mm, green powder-coated finish.
Two spray heads fitted with protective caps in shock-resistant green ABS; will eject automatically when activated.
1/4-turn, nickel-plated brass valve opens and closes quickly.
Water flow is activated by the hand control. The eye wash will continue to operate when the hand control is released. The water flow will stop when the hand control is pulled towards the user.
Flow rate 20 lpm at 3 bar.
Aerators with stainless steel double filters.
Water supply M1/2".
Pipework made from galvanised steel, grey powder-coated finish.
Hand control made from galvanised steel, green powder-coated finish.
Wall-mounted on a brass plate (screws not included.)
Supplied with identification sign for first aid equipment: "Eye Wash"
TECHNICAL FEATURES
Wall-mounted eye wash station
Ref. 9102
Supply | M1/2" |
---|---|
Height | 195mm |
Flow rate | 20 lpm |
Width to the wall | 204mm |
Finish | Epoxy |
Wall-mounted safety shower
Ref. 9108
Wall-mounted safety shower with manual control includes:
Frost-free system as standard.
Circular shower head Ø 250mm in green, shock-resistant ABS.
1/4-turn, nickel-plated brass valve opens and closes quickly.
Water flows simply by pulling on the triangular handle.
The flow will continue even when the handle is released.
The flow will stop when the handle is returned to its original position.
Flow rate 70 lpm at 1 bar dynamic pressure (120 lpm at 3 bar dynamic pressure).
Water supply F1".
Pipework made from galvanised steel, grey powder-coated finish. Triangular pull handle in green powder-coated brass.
Supplied with identification sign for first aid equipment: "Safety Shower".
For cross wall installation, with recessed supply, or for mounting on a false ceiling (we recommend a 1" mounting bracket).
TECHNICAL FEATURES
Wall-mounted safety shower
Ref. 9108
Supply | F1" |
---|---|
Height | 450mm |
Length | 625mm |
Flow rate | 120 lpm at 3 bar dynamic pressure |
Finish | Epoxy |
