Delabie dušialus PMR 800x800mm h30mm roostevabast terasest
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Müüja: PEGU OÜ
Olete leidnud õige toote – nüüd on aeg see enda omaks teha.
- ✔ Kvaliteetne toode kiiresti ja mugavalt kätte
- ✔ Turvaline ja läbipaistev ostuprotsess
- ✔ Meie meeskond hoolitseb iga detaili eest
Lisage toode ostukorvi ja jätkake tellimusega – nii on ta varsti juba teie juures!
PEGU.ee – targad valikud inimestele, kes hindavad stiili ja kvaliteeti.
DESCRIPTION

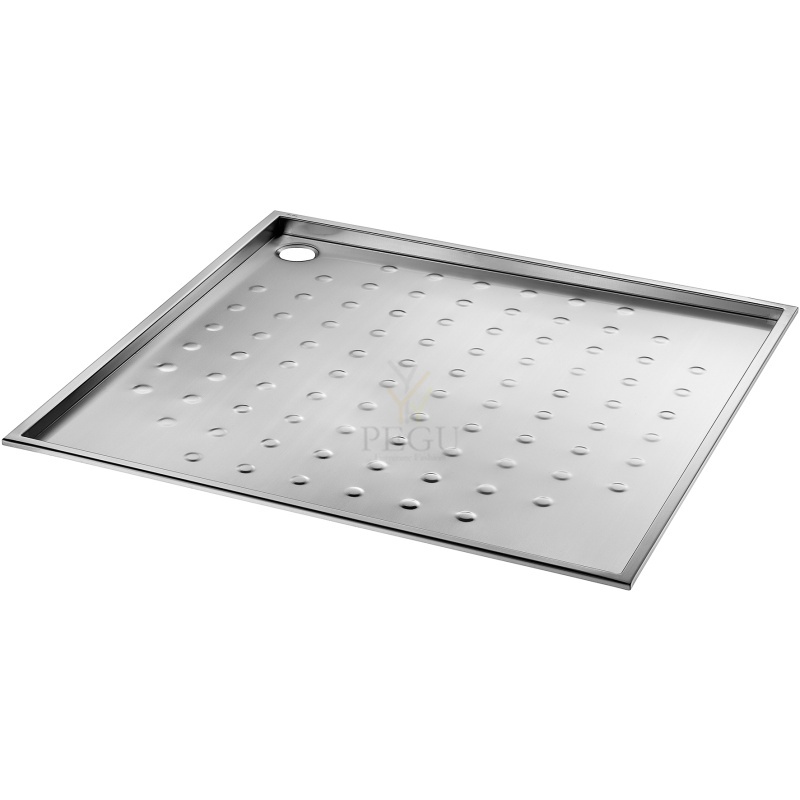

PMR recessed shower tray
Ref. 150500
Recessed shower tray, 800 x 800mm.
Suitable for people with reduced mobility: slimline shower tray.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.5mm
Drainage slope.
Supplied with 1 ½" waste.
Non-slip surface.
CE marked. Complies with European standard EN 14527.
Weight: 8.5kg.

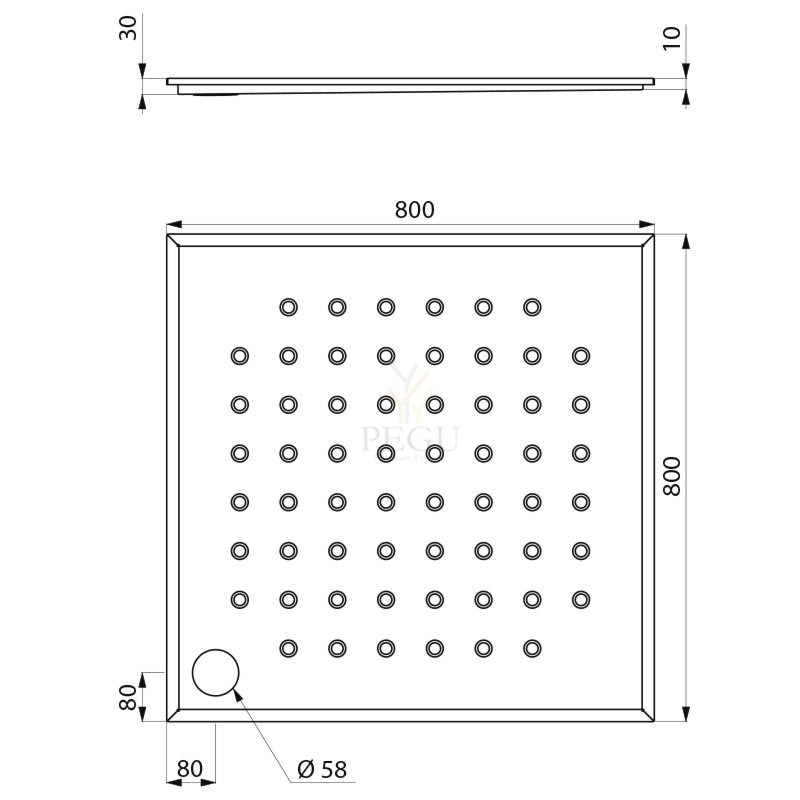

TECHNICAL FEATURES
PMR recessed shower tray
Ref. 150500
| Depth | 30mm |
|---|---|
| Length | 800mm |
| Width | 800mm |
| Thickness | 1.5mm |
| Finish | 304 polished satin stainless steel |
Failid
Joogifontaan kinnitus seina FP-004, satiin
Valamu jalaga 700x700, kõrgus 850mm , R/V teras
Stainless steel floor standing bulk sink, 700x700x850 mm
Characteristics
- stainless steel bulk sink with supporting legs with a sheating
- without a tap hole (could be made to order)
- possibility of fine plane regulation by the regulation screws on the supporting legs
- available also in dimensions 600 x 600 x 850 mm
- material CrNi 18/10 (AISI-304)
- brushed finish
- different dimensions could be made to order
| Order number | 93150 |
| Code | SLUN 15 |
AFO 01.Yst. steel sensor controlled drinking fountain
AFO 01.Y is st. stainless wall hung drinking fountain controlled by sensor. Water runs after disrupting the scanning zone.
Fountain is made by welding all components together.
Fountain is suppplied with safety power 12 V, 50 Hz from power supply ZAC (AFO 01.Y) or with 4x AA battery (AFO 01.YB).
Material is standardly st. steel AISI 304 or can be AISI 316 (AFO 01.Y.CL or AFO 01.YB.CL).
St. steel driking fountain AFO 01.Y is based on favourite model AFO 01 with manual control.
The sensor, located on the right side of the fountain, is reacting on the approach of the user. Water starts to run from the nozzle, located in the middle of the fountain bowl, and runs over the time when the user´s head is in the scanning zone (max. 30 sec.) + preset time (max. 4 sec.) to clean the nozzle.
Package contents
- st. steel drinking fountain
- nozzle
- sensor and electronic
- electromagnetic valve
- connecting flexible hose
- corner valve with filters
- siphon
- mounting material
| water inlet | G 1/2" |
| water pressure | 1 - 10 Bar (AFO 01.Y; AFO 01.Y.CL) |
| 2 - 8 Bar (AFO 01.YB; AFO 01.YB.CL) | |
| outlet | d = 40 mm |
| bowl inner dimension | d = 245 mm |
| weigth | 4 kg |
| suppply | 12 V, 50 Hz (AFO 01.Y; AFO 01.Y.CL) |
| 6 V - 4 x AA battery (AFO 01.YB; AFO 01.YB.CL) | |
| power supply | ZAC 1/20 (max. 3 x AFO 01.Y ; AFO 01.Y.CL) |
TECHNICAL FEATURES
TEMPOSTOP time flow tap
Ref. 741943
| Connector | M1/2" |
|---|---|
| Technology | Time flow |
| Length | 200mm |
| Spout length | 75mm |
| Flow rate | 3 lpm |
TEMPOSTOP time flow tap
Ref. 741943
Cross wall time flow tap with swivel spout :
Time flow ~7 sec.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.5 to 6 lpm.
Tamperproof scale-resistant flow straightener.
Solid chrome-plated brass body M1/2".
Control ≤ 200mm and spout ≤ 230mm cut-size.
Anti-rotating pin and back-nut. AB anti-blocking system.
AB anti-blocking system: water will flow only when the push-button is
349,00 €
Roostevaba teras pissuaar KEG sensoriga . 24VDC
SLPN 10E
Stainless steel KEG urinal with infra-red flushing unit, 24 V DC
Characteristics
- vandal-proof
- stainless steel wall hung urinal with integrated infra-red electronics
- rear assembling by the mounting plate and special screws
- system reacts to the user attendance in front of the urinal at a maximum distance of 0,7 m, minimum stay time in active range is 7,5 s
- system flushes after leaving of user from active range
- adjustable flushing time 0,5 - 15,5 s
- parameters adjustment by remote control SLD 03
- automatic hygiene flushing after 24 hours non-use
- material AISI - 304
- brushed finish
| Code | SLPN 10E |
Operating voltage: 24 V DC
Active range: 0,6 - 0,75 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 12 l/min. (inf. data)
Water inlet: male thread G 1/2"
