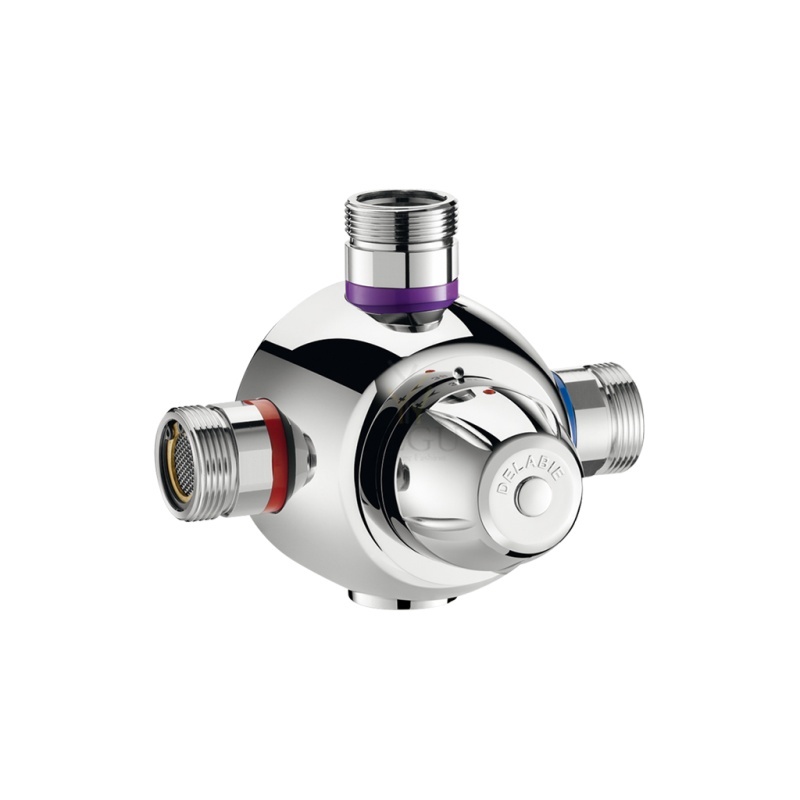

Delabie GROUP termostadi ventiil 3/4" PREMIX COMFORT T2 55L 32°C to 42°C

Tootekood: DE-731200
Kaubamärk:

Ühik: tk
Tarneaeg: 14-21päeva

Müüja: PEGU OÜ

kuumaks al. 67,11 €

Hind:

786,90 €

Kuumakse alates: 67,11 €

PREMIX COMFORT
Ref. 731200

Group thermostatic mixing valve for mixed water distribution from 32° to 42°C:
Anti-scalding safety.
Regulation of temperature variations.
Non-return valves and filters accessible from the exterior without having to remove the mechanism.
Thermal cartridge with no specific lever needed (push-button on the control knob).
Interchangeable cartridge with automotive cell.
High-resistance chrome-plated brass body.
Maximum hot water temperature: 85°C.
Differential hot water / mixed water: 15°C mini.
Pressure differences at the entrance: 1 bar maximum (0.5 bar recommended).
Minimum pressure / maximum: 1 to 10 bar (1 to 5 bar recommended).
Left hand side hot water inlet (red ring) and right hand side cold water inlet (blue ring).
Mixed water outlet at the top (purple ring).
For bottom outlet: unscrew / place lid at the top and outlet connector at the bottom.
Maximum temperature limiter, can be adjusted by the installer.
Reduced risk of scalding by limiting temperature at the point-of-use.
55 lpm - M 3/4".

Failid

731200.pdf

Sarnased tooted

Laost otsas

Alpa peitsegisti , kroomnupp, veekindel korpus, 30 sek

Peitsegisti 30 sek töötsükkel

Tootekood: P35190 , Tarneaeg: 7-14 päeva

701,50 €

Võrdle

Laost otsas

Kraanikaussi kraan eelsegatud veele, isesulguv, 15sek 3bar

Vajutava nupuga kraan

Idral

kroom

15 sek. töötsükkel 3 bar

6 l/min

Tootekood: IDR-08210 , Tarneaeg: 7-14 päeva

110,00 €

Võrdle

Laost otsas

AZP Brno adapter 1-3 punkte

	ZAC 1/20, ZAC 1/50, ZAC 1/36L power supply

ZAC is a safe source of voltage supply intended to power automatic sanitary equipment made by AZP Brno, Ltd.

The source of power supply consists of a safety transformer produced in accordance with ČSN IEC 742+A1 standards. All kinds of sensors can be connected to these sources in random combinations, as can other devices with a supply voltage of 12 V, 50 Hz (total power requirement either 20 VA, 50 VA or 36 VA).

ZAC 1/20 and ZAC 1/50 are independent sources, 1/36L ZAC is the source for the location on the DIN-rail (4 modules).

Version types
ZAC 1/20 - source of power supply with output 20 VA
ZAC 1/50 - source of power supply with output 50 VA
ZAC 1/36L - source of power supply with output 36 VA

Source of power supply can be placed at a maximum distance of 30 m from the connected appliance.

Basic technical information
Input voltage:	230 V, 50 Hz
Output voltage:	12 V, 50 Hz
Power requirement:	20 VA (ZAC 1/20)
	50 VA (ZAC 1/50)
	36 VA (ZAC 1/36L)
Electricity protection:	IP 55 (ZAC 1/20, ZAC 1/50)
	IP 20 (ZAC 1/36L)
Weight:	0,8 kg (ZAC 1/20, ZAC 1/36L)
	1,2 kg (ZAC 1/50)

Requirements for setting up the construction

ZAC 1/20, ZAC 1/50

Set-up supply of electricity 230 V,50 Hz – cable CYKY 3Cx1,5
Set-up niche for flush mounting – size as per installed source
Distribution to each device is carried out by cable CYKY 2Ax1,5

ZAC 1/36 L

It is installed on the DIN-rail - width of 4 modules

Figure
ZAC 1/20

ZAC 1/50

Product title

ZAC 1/20 -

power supply for up to 3 devices - 230V, 50Hz

ZAC 1/50 -

power supply for up to 8 devices - 230V, 50Hz

ZAC 1/36L -

power supply for up to 6 devices - 230V, 50Hz

Tootekood: AZP-ZAC 1-20 , Tarneaeg: 3-4 nädalad

105,00 €

Võrdle

Laost otsas

Dushipaneel segistiga PRESTOTEM2 ALPA, isesulguv - 30 sek töötsükkel

> Working pressure : 1 to 5 bar

> Flow : 6 l/min with integrated flow limiter. Anti-water-hammering design Rotating shower head with anti-limescale spikes

> Flow time : 30 seconds (± 5 sec.)

> Hydraulic supply : G 1/2" (15x21), top or rear water inlet. For rear water inlet, we recommend to add the adaptation kit under the reference 91026. On ALPA NF IB mixer tap with NF check valves

> Material : Anodised aluminium extruded section (2.5mm thickness) Aluminium removable valve plate, peinted RAL 7005 High resistance RAL 7005 coloured ABS covers

> Functioning: Wide opening panel without the need to dismantle from the wall and shower taps on a removable valve plate

> Thermal resistance : Resistant to a temperature of 75°C for 30-minute-thermal-shocks > Security : Adjustable tamper-proof temperature limiter to prevent scalding

> Delivered with : 1/2" hoses with revolving nuts MM 1/2" (15x21) straight stop valves and 250 micron filters Fastening screws and instruction manual

> Standards & approvals : Brass body in accordance with EN 1982, EN 12164, EN 12165 Chrome-plated surface treatment in accordance with EN 12540 200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227

Tootekood: P88808 , Tarneaeg: 14-21 päeva

1024,80 €
