Delabie hädaabidušš silmadele 9102
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Kohustuslik märge projekti spetsifikatsioonis: PEGU OÜ

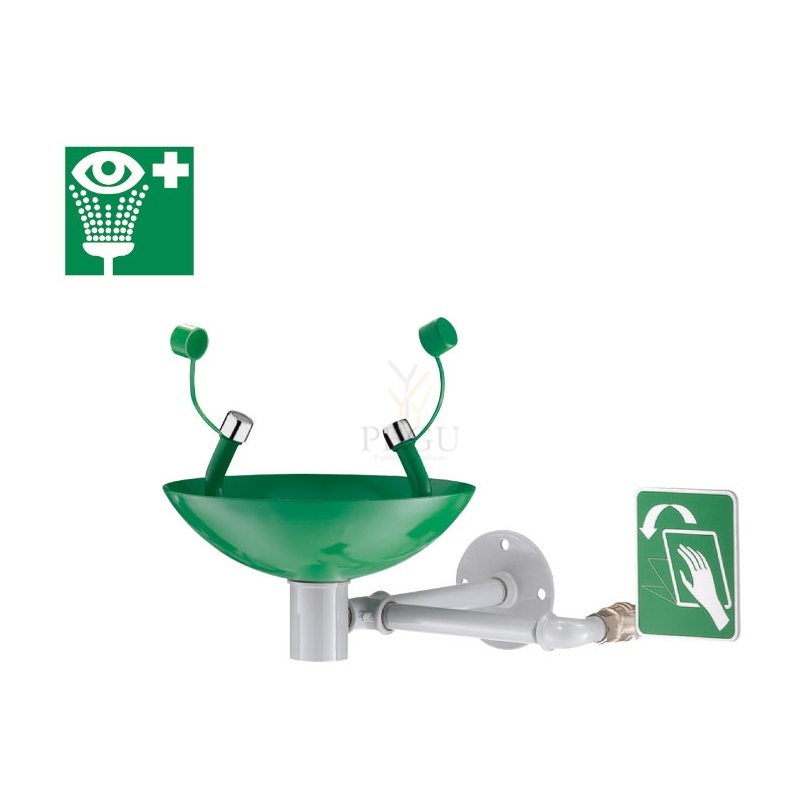

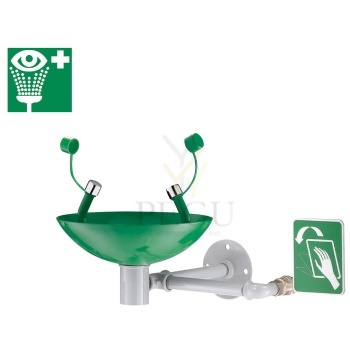

Wall-mounted eye wash station
Ref. 9102
Wall-mounted eye wash station with manual control includes:
304 stainless steel basin Ø 250mm, green powder-coated finish.
Two spray heads fitted with protective caps in shock-resistant green ABS; will eject automatically when activated.
1/4-turn, nickel-plated brass valve opens and closes quickly.
Water flow is activated by the hand control. The eye wash will continue to operate when the hand control is released. The water flow will stop when the hand control is pulled towards the user.
Flow rate 20 lpm at 3 bar.
Aerators with stainless steel double filters.
Water supply M1/2".
Pipework made from galvanised steel, grey powder-coated finish.
Hand control made from galvanised steel, green powder-coated finish.
Wall-mounted on a brass plate (screws not included.)
Supplied with identification sign for first aid equipment: "Eye Wash"
TECHNICAL FEATURES

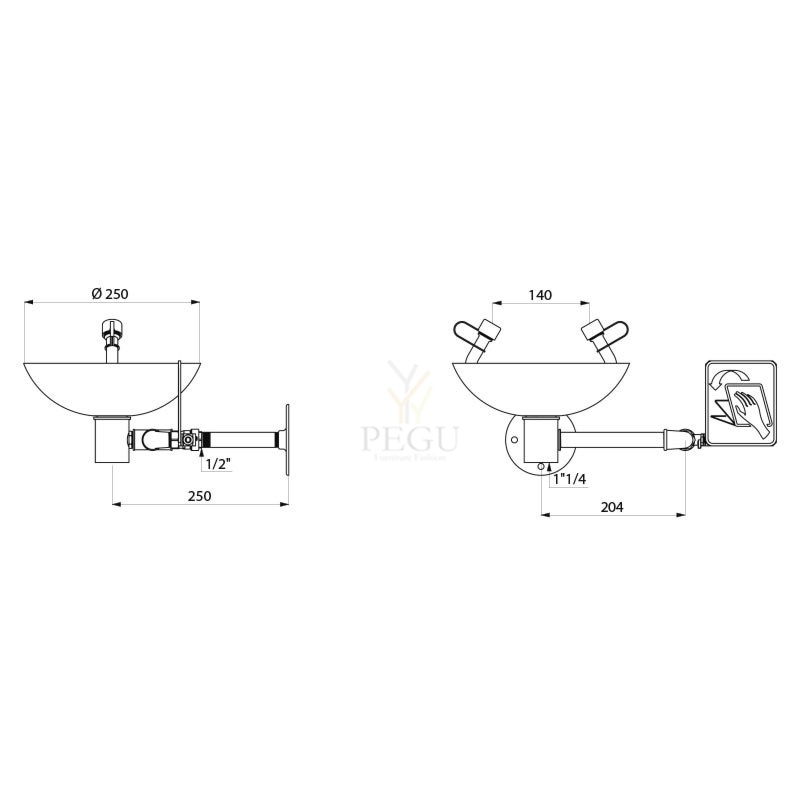

Wall-mounted eye wash station
Ref. 9102
| Supply | M1/2" |
|---|---|
| Height | 195mm |
| Flow rate | 20 lpm |
| Width to the wall | 204mm |
| Finish | Epoxy |
Failid
Kombinerad kropps- & ögon/ansiktsdusch med skål för väggmontage.
Utrustad med självdränerande duschsil och ögondusch för minskad bakterietillväxt. Den röda POLYCOAT-lackerade rörstommen gör inte bra att första hjälpenutrustningen syns väldigt bra, den står även emot de flesta kemikalier, UV- blekning och värme.
• Kroppsdusch med effektiv spolbild, självdränerande duschsil
• Självdränerande ögon/ansiktsdusch med FLOWFIX 26 lit/min
• POLYCOAT-lackerad rörstomme
• Uppsamlingsskål i rostfritt stål med POLYCOAT
• 3-sidig efterlysande skylt monterad på dragstång, dekal & testkort
• Vikt: ca. 10 kg
• Anslutning: inv. DN20 i toppen eller botten
• Avloppsanslutning: inv. 1 1/4”
Artikelnummer: 17 452 009
RSK nr: 755 9678
8 l/min
Portable eyes and body shower with one spray head
Characteristics
- suitable for medical facilities and industry
- used as first aid if eyes impacted by accidents caused by fire, chemical or other dangerous substances in places where there is no access to water
- portable eyewash and body shower with one spray head
- stainless steel cylinder cover
Technical information
Min. operating temperature: +1°C
Rate of flow: 8 l/min. (inf. data)
Free-standing eye wash station
Ref. 9201
Free-standing eye wash station with manual and pedal control includes:
Frost-free system as standard.
304 stainless steel basin Ø 250mm, green powder-coated finish.
2 eye wash spray heads fitted with protective caps in shock-resistant green ABS; will eject automatically when activated.
1/4-turn, nickel-plated brass valves open and close quickly.
Water flow is activated by hand or foot control. The eye wash will continue to operate when the hand or foot control is released. The flow stops when the hand control is pulled towards the user or the foot pedal is raised.
Flow rate 20 lpm at 3 bar.
Aerators with stainless steel double filters.
Water supply F1".
Pipework made from galvanised steel, grey powder-coated finish.
Hand and foot controls in green powder-coated galvanised steel.
Fixed to the floor by a triangular brass plate (screws not included.)
Supplied with identification sign for first aid equipment: "Eye Wash".
TECHNICAL FEATURES
Free-standing eye wash station
Ref. 9201
| Height | 1050mm |
|---|---|
| Depth | 500mm |
| Flow rate | 20 lpm |
| Finish | Epoxy |
