Delabie KOMPACT loputuskastiga WC+valamu sümmetriline põranda antivandaalne R/V teras AISI304

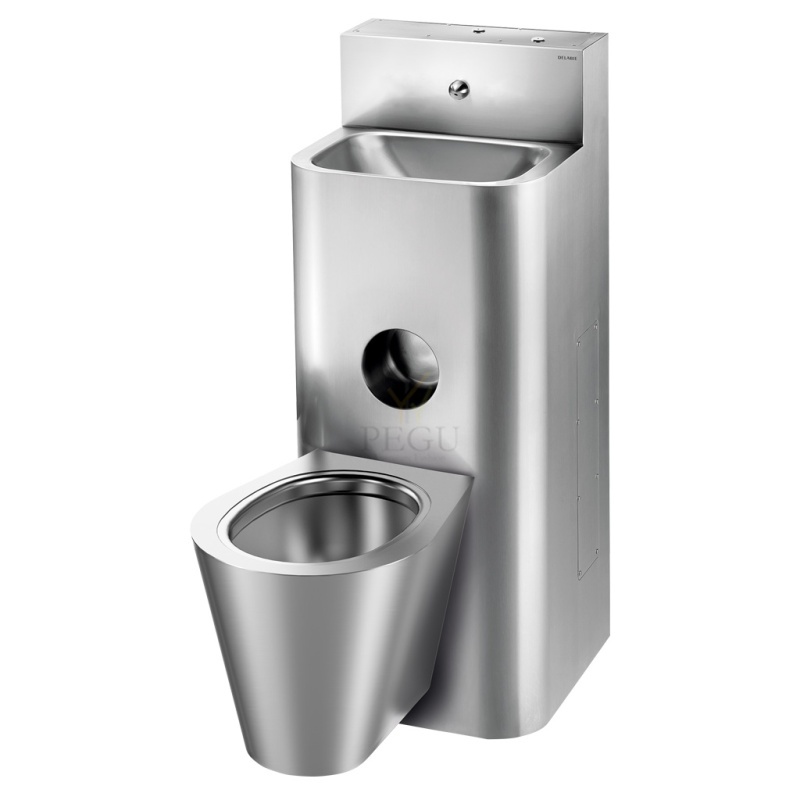

KOMPACT washbasin and wall-hung WC combination
Ref. 162500
Washbasin combination unit with cistern, mounted WC pan in centre with recessed toilet roll holder.
Wall-mounted installation with 3 access panels, 2 on the sides and 1 on the top with theft prevention TORX security screws.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel body thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface is easy to clean.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws: makes cleaning easier and prevents concealment of objects.
Washbasin equipped with time flow tap: stainless steel tamperproof push-button and anti-blocking system, 7 second time flow, M1/2".
WC fitted with 6-litre cistern.
Water inlets: washbasin M1/2", WC M3/8".
Recessed horizontal water outlet: Ø 100mm.
Supplied with washbasin siphon.
Easy to install: only one water outlet for both washbasin and WC,water inlet and outlet already connected.
Weight: 36kg.

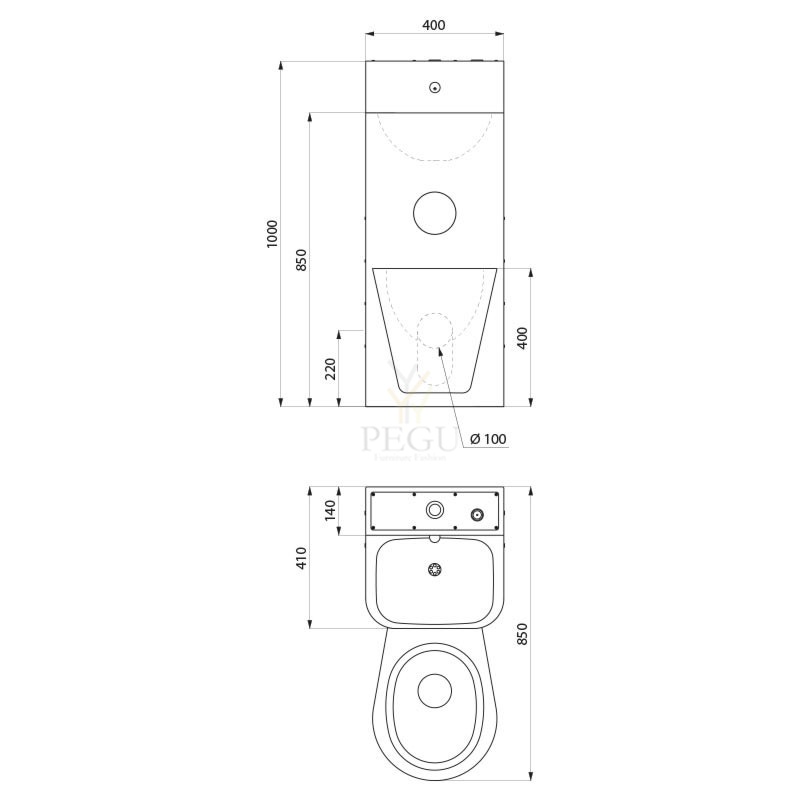

TECHNICAL FEATURES
KOMPACT washbasin and wall-hung WC combination
Ref. 162500
Height | 1000mm |
---|---|
Length | 850mm |
Width | 400mm |
Thickness | 2mm |
Finish | Polished satin 304 stainless steel |
Failid
DESCRIPTION
MONOBLOCO S21 WC pan with cistern
Ref. 110390
Floor-standing WC pan with dual flush cistern 3L/6L, 370 x 815 x 620mm.
Bacteriostatic 304 stainless steel. Polished satin finish.
Stainless steel thickness: 1.5mm.
One-piece pressed WC bowl, seam-free for better hygiene.
WC bowl surface is polished with rounded edges for easy cleaning.
Concealed perimetral flushing rim. Water supply can be recessed from below or exposed from the side (right/left).
Recessed horizontal or vertical waste outlet. Supplied with PVC pipe.
Pre-drilled holes for fixing the toilet seat. Supplied with stainless steel blanking caps when installed without toilet seat lid.
Quick to install: 2 access panels with theft prevention TORX security screws.
CE marked. Complies with European standard EN 997 for 4L flush.
Weight: 21kg.
10-year warranty.
TECHNICAL FEATURES
MONOBLOCO S21 WC pan with cistern
Ref. 110390
Height | 815mm |
---|---|
Length | 620mm |
Width | 370mm |
Thickness | 1.5mm |
Finish | 304 polished satin stainless steel |
Delabie WC pott INVA Monobloco 700 R/V teras
DESCRIPTION
MONOBLOCO 700 PMR WC pan with cistern
Ref. 110790
Floor-standing WC pan with dual flush cistern 3L/6L, 370 x 895 x 700mm.
700mm elongated pan for better comfort for people with reduced mobility.
Bacteriostatic 304 stainless steel. Polished satin finish.
Stainless steel thickness: 1.5mm.
One-piece pressed WC bowl, seam-free for better hygiene.
WC bowl surface is polished with rounded edges for easy cleaning.
Concealed perimetral flushing rim. Water supply can be recessed from below or exposed from the side (right/left).
Recessed horizontal or vertical waste outlet. Supplied with PVC pipe.
Pre-drilled holes for fixing the toilet seat. Supplied with stainless steel blanking caps when installed without toilet seat lid.
Quick to install: 2 access panels with theft prevention TORX security screws.
CE marked. Complies with European standard EN 997 for 4L flush.
Weight: 22kg.
10-year warranty.
TECHNICAL FEATURES
MONOBLOCO 700 PMR WC pan with cistern
Ref. 110790
Height | 895mm |
---|---|
Length | 700mm |
Width | 370mm |
Thickness | 1.5mm |
Finish | Polished satin 304 stainless steel |
Liivapüüdur SAND-02 Elcee 220, 3,5L, R/V teras, AISI304
Kasutusjuhend:
Liivapüüdur SAND-02 Elcee 220, 3,5L, roostevaba teras, AISI304
Liivapüüdur SAND-02 Elcee 220 on mõeldud liiva filtreerimiseks veest ning selle maht on 3,5 liitrit. Seade on valmistatud roostevabast terasest (AISI304) ja on ideaalne paigaldamiseks otse kraanikausi või valamualuse alla.
Paigaldamine:
Liivapüüdur on lihtne paigaldada otse kraanikausi või valamualuse alla, kasutades selleks sobivaid kinnitusvahendeid.
Kasutamine:
Liiv ja mustus kogunevad seadme alumisse kaussi. Seadme efektiivse töö tagamiseks on vajalik kaussi regulaarselt tühjendada.
Hooldus:
Kauss on kinnitatud korpuse külge kahest küljest kinnitustega. Kaussi puhastamiseks eemaldage see kinnitustest, tühjendage ja vajadusel puhastage.
Üldmõõtmed millimeetrites: Ø174 x 235
Sissevoolu mõõtmed millimeetrites: 1,5"
Väljavoolu mõõtmed millimeetrites: 1,5"
Materjal: AISI 304
Materjali paksus millimeetrites: 1,5
Kogukaal kilogrammides: 2,50
Wash trough acc. Separator SAND-02
Description
The sand catcher has a capacity of 3,5 litres and is ideal for filtering sand from water.
It is easy to mount directly under a washbasin or a wash trough.
The sand catcher is delivered with a flexible outlet that will enable straight or bent installation possibilities.
Material: Stainless steel AISI 304
Overall dimension in mm Ø174 x 235
Inlet dimension in mm 1.5"
Outlet dimension in mm 1.5"
Material AISI 304
Material thickness in mm 1.5
Gross weight in kg 2.50
Dushikomplekt antivandaalne 512S, 1-200mm
vandaalikindel
DUO S TC L washbasin
Ref. 160370
Wall-mounted washbasin with through-the-wallinstallation for service ducts.
Integrated countertop.
Left hand basin.
Basin internal diameter: 310mm. Polished satin finish. Bacteriostatic 304 stainless steel.
Stainless steel thickness: 1.2mm
Rounded edges prevent injury.
Vandal-resistant: shrouded basin.
200mm threaded rod can be cut to size (other lengths are available on request).
Recessed horizontal waste outlet Ø 1".
Flat perforated waste, without screws:
easy cleaning and vandal-resistant.
Without overflow. Supplied with fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 8.5kg.
