Delabie KOMPACT loputuskastiga WC+valamu vasakul põranda antivandaalne R/V teras AISI304

Tootekood: DE-162600
Kaubamärk:
Ühik: tk
Tarneaeg: 4-6 nädalad
Hind: 4833,00 €
4349,70 €
Kuumakse alates: 369,72 €
Kogus: - +

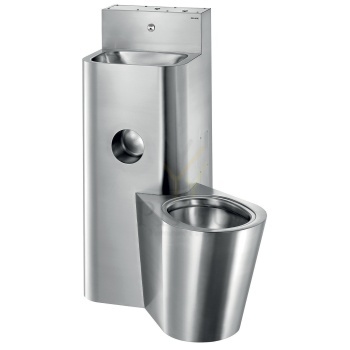

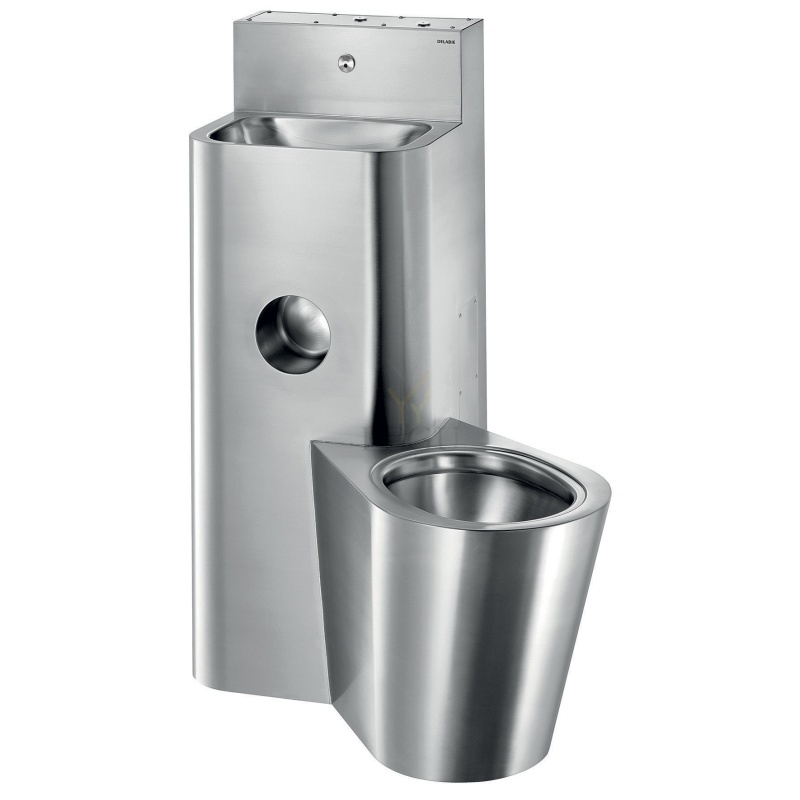

KOMPACT washbasin and floor-standing WC combination
Ref. 162600

Washbasin combination unit with cistern, floor-standing WC pan on right side with recessed toilet roll holder.
Wall-mounted installation with 3 access panels, 2 on the sides and 1 on the top with theft prevention TORX security screws.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel body thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface is easy to clean.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws: makes cleaning easier and prevents concealment of objects.
Washbasin equipped with time flow tap: stainless steel tamperproof push-button and anti-blocking system, 7 second time flow, M1/2".
WC fitted with 6-litre cistern.
Water inlets: washbasin M1/2", WC M3/8".
Recessed horizontal water outlet: Ø 100mm.
Supplied with washbasin siphon.
Easy to install: only one water outlet for both washbasin and WC,water inlet and outlet already connected.
Weight: 36kg.

TECHNICAL FEATURES

KOMPACT washbasin and floor-standing WC combination
Ref. 162600

Height 1000mm
Length 735mm
Width 725mm
Thickness 2mm
Finish Polished satin 304 stainless steel

Failid

Sarnased tooted
WC poti raam loputuskastiga , antivandaalse R/V teras katega


BSAZ 5

Wall module construction for WC with vandal-resistant st.steel cover






BSAZ 5 is a wall module for wall mounted toilets equipped with anti-vandal stainless steel cover – with resistant stainless safety buttons. The cover is screwed by security bolts therefore it cannot be dismounted without special tools. The system is suitable for spaces where toilet flushing from a cistern is required but where, on the other hand, there is a threat of damaging of usual plastic covers. The robust anti-vandal stainless cover contains stainless control buttons resistant to damage (unlike the usual plastic buttons).



The cover of BSAZ 5 is manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order. For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).








Version types
BSAZ 5 - Wall module construction for WC with vandal-resistant st.steel cover


Basic technical information
Dimensions of wall module: (1000–1200) × 510 × (160–200) mm
Dimensions of st.steel cover: 510 × 230 × 30 mm
Water inlet: G 1/2"
Outlet: DN 100


Requirements for setting up the construction
  1. Space for mounting the wall module
  2. Water inlet G 1/2"
  3. Waste pipe for outlet connection (DN 100)


Complete delivery
  • wall module with cistern
  • st.steel cover with vandal-proof buttons

Tootekood: AZP-BSAZ 5 ,   Tarneaeg: 3-4 nädalad
1055,00 €

Loputussüsteem pissuaarile aegreleega 230V/AC antivandaalne

SLP 01Z



Time-controlled flushing unit, 230 V AC



Characteristics

  • vandal-proof
  • time-controlled flushing unit for urinal troughs SLPN 02(Z) - 05(Z)
  • adjustable flushing time 0,5 - 15,5 s, standard 5 s
  • parameters adjustment by remote control SLD 04
  • adjustable flushing interval 10 min - 3 days,          standard 1 h
  • after switch on the power supply 230 V AC, SLP 01Z starts to flush in adjusted interval
Order number 01011
Code SLP 01Z


Supply specification

SLP 01Z - Supply No. 01011 stainless steel cover with electronics, stainless steel mounting box with brass screw coupling, power supply, remote control SLD 04

Technical information

Stainless steel cover dimension: 170 x 170 x 10 mm
Mounting box dimension: 145 x 155 x 100 mm
Operating voltage: 230 V AC/50 Hz
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 40 l/min (inf. data)
Water inlet: male thread G 1“
Water outlet: male thread G 1“
Tootekood: SA-SLP01Z ,   Tarneaeg: 14-21 päeva
531,00 €

Semi-recessed QUADRA washbasin
Ref. 120650

Semi-recessed washbasin, 380x380mm.
Suitable for use with wall-mounted or extended mixer/tap.
Basin internal diameter: 310mm.
Cutout diameter: 310mm.
Stainless steel thickness: 1.2mm.
Polished satin finish.
Stainless steel thickness: 1.2mm.
One-piece, seam-free pressed bowl.
Rounded edges prevent injury.
Supplied with 1¼" waste.
Without overflow.
CE marked. Complies with European standard EN 14688.
Weight: 3kg.



TECHNICAL FEATURES

Semi-recessed QUADRA washbasin
Ref. 120650

Height 130mm
Length 380mm
Width 380mm
Thickness 1.2mm
Finish Polished satin 304 stainless steel
Tootekood: DE-120650 ,   Tarneaeg: 14-21 päeva
549,00 € (10%)
610,00 €
 Roostevaba teras valamu KEG

Characteristics

  • stainless steel wall hung washbasin
  • with a tap hole
  • material AISI - 304
  • brushed finish
Tootekood: SA-SLUN77A ,   Tarneaeg: 14-21 päeva
1179,00 €

Wall-mounted cleaners' sink
Ref. 182400

Wall-mounted cleaners' sink with splashback.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 0.9mm.
Seam-free, pressed bowl.
Deep sink.
Smooth surface.
Rounded edges prevent injury.
Supplied with 1½" waste .
Without overflow.
Supplied with fixing elements and splashback.
Weight: 4.6kg.



TECHNICAL FEATURES

Wall-mounted cleaners' sink
Ref. 182400

Height 404mm
Length 370mm
Width 460mm
Thickness 0.9mm
Finish Polished satin 304 stainless steel
Tootekood: DE-182400+102400 ,   Tarneaeg: 14-21 päeva
521,10 € (10%)
579,00 €
