Delabie KOMPACT TC WC+valamu paremal põranda antivandaalne R/V teras AISI304

Tootekood: DE-166400
Kaubamärk:
Ühik: tk
Tarneaeg: 4-6 nädalad
Hind: 4172,00 €
3754,80 €
Kuumakse alates: 319,16 €
Kogus: - +
   - või -

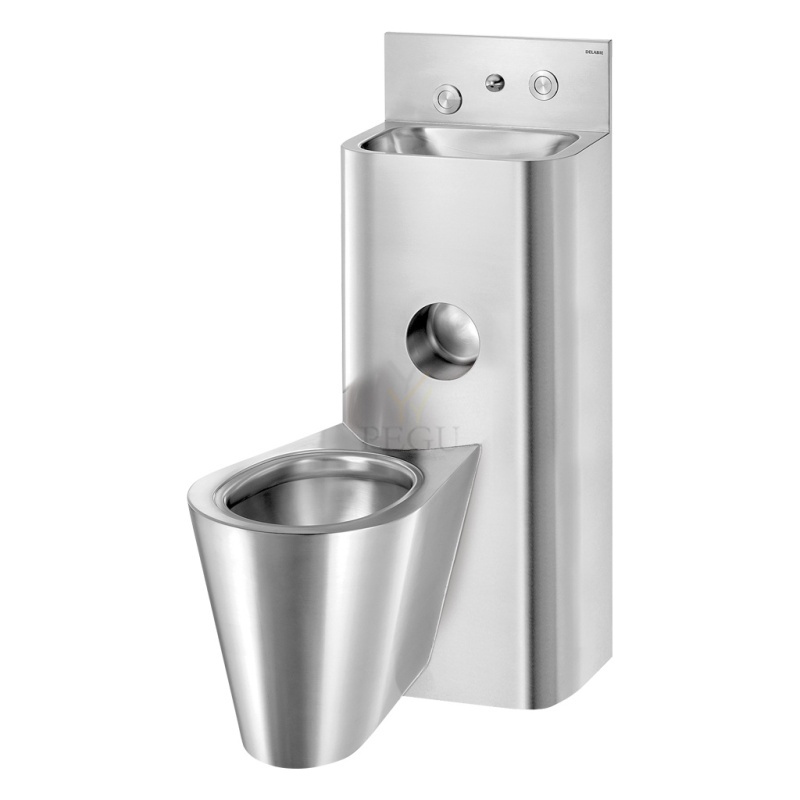

KOMPACT TC washbasin and wall-hung WC combination
Ref. 166400

Combination unit: washbasin and suspended WC pan on left sidewith recessed toilet roll holder.
Service duct installation (through-the-wall).
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel unit thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface for easy cleaning.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws:
makes cleaning easier and prevents concealment of objects.
Left hand WC pan
Washbasin equipped with time flow tap: stainless steel tamperproofpush-button and anti-blocking system, 7 second time flow, M1/2".
WC equipped with time flow flush valve, 7 second time flow, M3/4".
Water inlet: washbasin M1/2", WC M3/4".
Recessed horizontal water outlet: Ø 100mm.
200mm threaded rod can be cut to size (other lengths available on demand).
Weight: 30kg.
[Formerly ref: 0616130004]

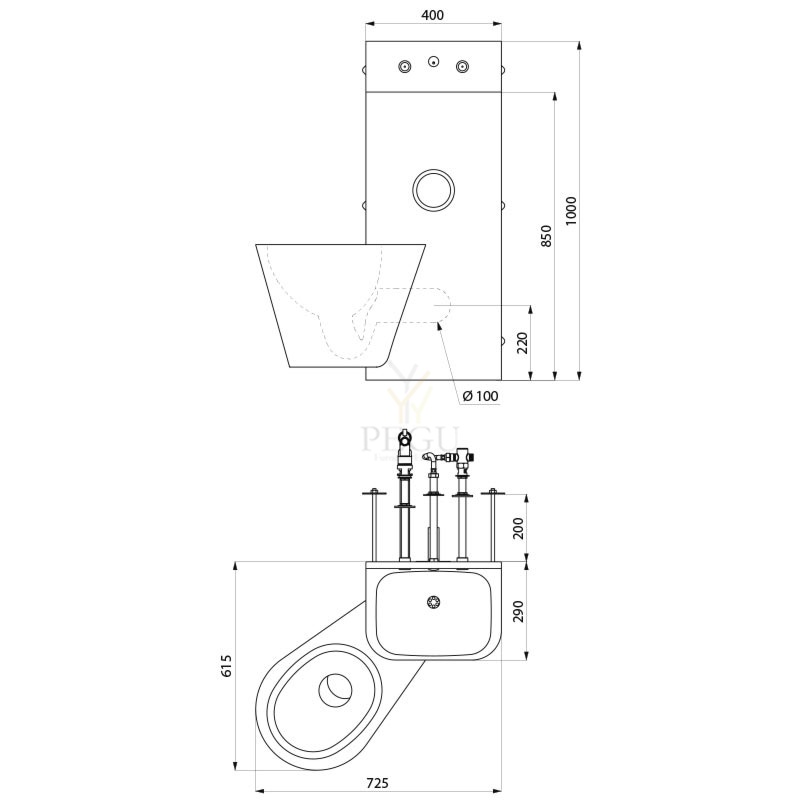

Technical features

KOMPACT TC washbasin and wall-hung WC combination
Ref. 166400

Height 1000mm
Length 615mm
Width 725mm
Thickness 2mm
Finish 304 polished satin stainless steel



Failid

Sarnased tooted
Antivandaalne R/V teras piezo dušisi nupp, eelsegatud veele,  ilma el.adaptorita



AUS 11

Pressure button-controlled shower for heat regulated water










AUS 11 is a new type of shower fitting for single shower control. The fitting is designated for premixed water – with one water inlet and shower outlet elbow. Water is released and closed by an anti-vandal pressure button connected to electronics and an electromagnetic valve. The fitting is covered by a rust-free anti-vandal cover to prevent damage.

The mounting system has been designed so as to make removing the cover without using tools impossible with no bolt or screw being visible. The cover can be "pushed into" the wall level even if the mount box has been walled to an incorrect depth.

AUS 11 is identical to AUS 1P with a different design and very resistant cover sheet.

Electronics can work in two modes:

1) The button works on the START/STOP basis – water release/closing. If the water is not turned off upon the time adjusted by the user or manager (e.g. 20 seconds), the electronic system itself instructs water stopping. The user must press again to start water running. This significantly saves water as the user reduces the showering time.

2) The button works on the START/STOP basis. After the time adjusted by the manager (e.g. 3 minutes) expires there is a forced break when water cannot be released. During this time, the user is forced to leave the shower or wait. This prevents needless showering – water wasting.




Basic technical information
Water input: G 1/2“
Water pressure: 1 - 10 Bar (0,1 – 1,0 MPa)
Time of water flow: 10 s – 42,5 min in mode 1
  0 s - 42,5 min in mode 2
Power supply: 12 V, 50 Hz
Power requirement: 6 VA
Source of power supplz: ZAC 1/20 (max. 3× AUS 11)
  ZAC 1/50 (max. 8× AUS 11)
Weight: 2,0 kg


Requirements for setting up the construction
  1. Water installation set up as per picture
  2. Set-up alcove 150 x 75 mm for installation casket
  3. Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC


Complete delivery
  • installation casket
  • input and output bolting
  • electromagnetic valve
  • spherical valve
  • covering metal plate with piezo button
  • electronics


Made to order
  • SP 1 – shower arm with water flow of 9 l/min
  • SP 2 – shower arm with water flow of 7 l/min
  • SP 3 – shower arm with water flow of 7 l/min
  • ZAC - source of power supply 12V, 50Hz


Figure


A - water inlet G 1/2"
C - electricity supply cable 12 V, 50 Hz
G - water outlet into shower armG 1/2"




Download information about the product
AUS 11 data for projectants - ( 84 kB )

Tootekood: AZP-AUS 11 ,   Tarneaeg: 3-4 nädalad
375,00 €

> Working pressure : 1 to 5 bar

> Flow : 6 l/min at 3 bar - 4-position flow adjustment device Anti-water-hammering design

> Flow time : 15 seconds (± 5 sec.)

> Hydraulic supply : In-line water inlet M G 1/2" Inlet and outlet Cold water

> Thermal resistance : Resistant to a temperature of 75°C for 30 minute thermal shock

> Security : Patented anti-blocking "S" system to avoid the water to flow continuously

> Delivered with : 1 Cross-partition control (1 to 200 mm thick) 1 Short wall spout (Non-rotating fixing) 87 mm 1 Closing tap with S anti-blocking system 1 stop valve M 1/2" (15x21) / M 1/2" (15x21) with quick couplings (12x14 mm) Instruction manual

> Standards & approvals : Brass body in accordance with EN 1982, EN 12164, EN 12156 Molded chrome-plated body in accordance with EN 12540 200-hour neutral salt spray resistant (NSS) in accordance with ISO 922

Tootekood: P31660 ,   Tarneaeg: 6-7 nädalad
310,65 € (5%)
327,00 €

Semi-recessed QUADRA washbasin
Ref. 120650

Semi-recessed washbasin, 380x380mm.
Suitable for use with wall-mounted or extended mixer/tap.
Basin internal diameter: 310mm.
Cutout diameter: 310mm.
Stainless steel thickness: 1.2mm.
Polished satin finish.
Stainless steel thickness: 1.2mm.
One-piece, seam-free pressed bowl.
Rounded edges prevent injury.
Supplied with 1¼" waste.
Without overflow.
CE marked. Complies with European standard EN 14688.
Weight: 3kg.



TECHNICAL FEATURES

Semi-recessed QUADRA washbasin
Ref. 120650

Height 130mm
Length 380mm
Width 380mm
Thickness 1.2mm
Finish Polished satin 304 stainless steel
Tootekood: DE-120650 ,   Tarneaeg: 14-21 päeva
549,00 € (10%)
610,00 €

DESCRIPTION

Semi-recessed QUADRA washbasin - Ref. 120652

Semi-recessed washbasin, 380x380mm.
Suitable for use with wall-mounted or extended mixer/tap.
Basin internal diameter: 310mm.
Cutout diameter: 310mm.
Stainless steel thickness: 1.2mm.
Dual finish: bright polished basin interior and polished satin exterior. Stainless steel thickness: 1.2mm.
One-piece, seam-free pressed bowl.
Rounded edges prevent injury.
Supplied with 11⁄4" waste.
Without overflow.
CE marked. Complies with European standard EN 14688.
Weight: 3kg.

Tootekood: DE-120652 ,   Tarneaeg: 14-21 päeva
832,50 € (10%)
925,00 €

700 P floor-standing WC pan
Ref. 110700

Floor-standing WC pan, 360 x 480 x 700mm.
700mm elongated pan for better comfort for people with reduced mobility.
Elegant and simple design.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.5mm.
One-piece pressed WC bowl, seam-free for easy maintenanceand better hygiene.
WC bowl surface is polished with rounded edges for easy cleaning.
Concealed perimetral flushing rim.
Horizontal water inlet: Ø 55mm.
Horizontal waste outlet: Ø 100mm. Supplied with PVC pipe.
Water saving: works with 4L or more of water.
Pre-drilled holes for fixing the toilet seat. Supplied with stainless steel blanking caps when installed without toilet seat lid.
Quick and easy to install: 2 access panels with theft prevention TORX security screws.
CE marked. Complies with European standard EN 997 for 4L flush.
Weight: 15kg.

Tootekood: DE-110700 ,   Tarneaeg: 14-21 päeva
1704,60 € (10%)
1894,00 €
