Delabie KOMPACT TC WC+valamu paremal põranda antivandaalne R/V teras AISI304
Kaubamärk:
![Delabie-PEGU](https://www.pegu.ee/media/gavial/.image/brand-thumb/general/SEnda/DELABIE_C100M35.jpg)
Ühik: tk
Tarneaeg: 4-6 nädalad
Kohustuslik märge projekti spetsifikatsioonis: PEGU OÜ

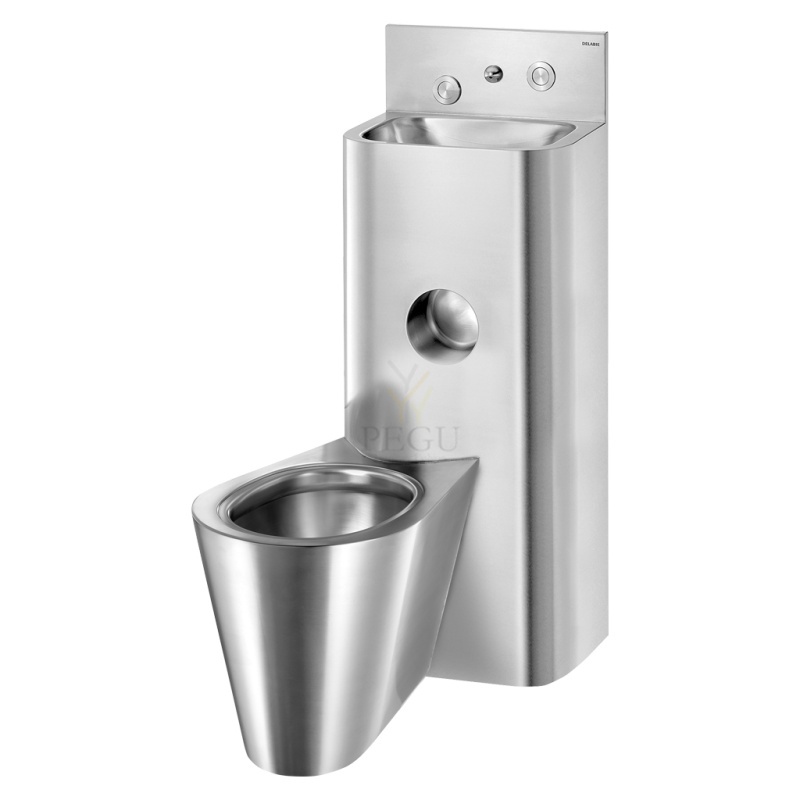

KOMPACT TC washbasin and floor-standing WC combination
Ref. 166700
Combination unit: washbasin and floor-standing WC pan on left sidewith recessed toilet roll holder.
Service duct installation (through-the-wall).
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel unit thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface for easy cleaning.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws:
makes cleaning easier and prevents concealment of objects.
Washbasin equipped with time flow tap: stainless steel tamperproofpush-button and anti-blocking system, 7 second time flow, M1/2".
WC equipped with time flow flush valve, 7 second time flow, M3/4".
Water inlet: washbasin M1/2", WC M3/4".
Recessed horizontal water outlet: Ø 100mm.
200mm threaded rod can be cut to size (other lengths available on demand).
Weight: 30kg.
[Formerly ref: 0616130007]

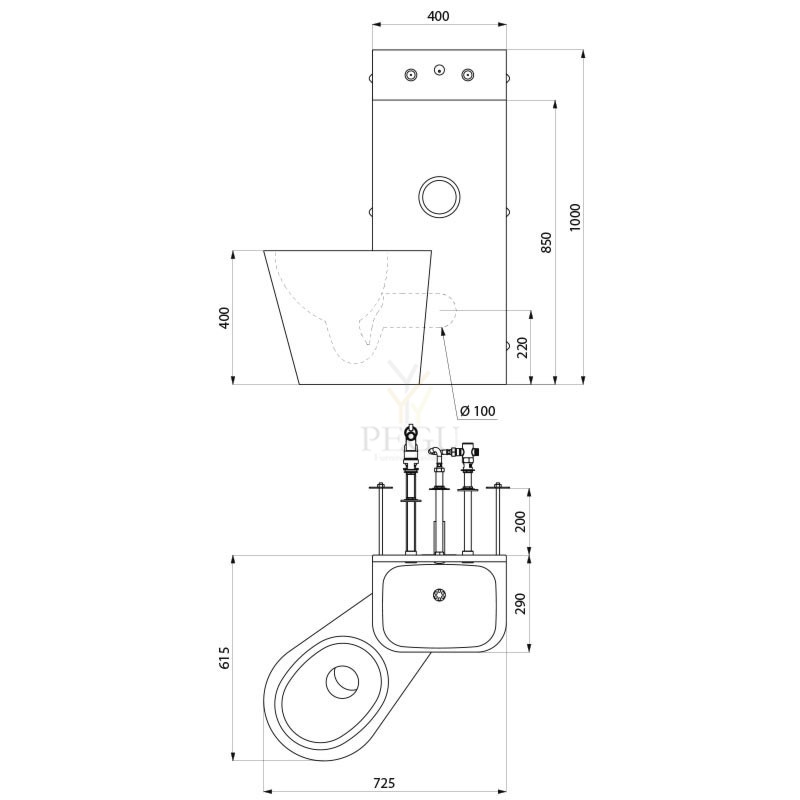

TECHNICAL FEATURES
KOMPACT TC washbasin and floor-standing WC combination
Ref. 166700
Height | 1000mm |
---|---|
Length | 615mm |
Width | 725mm |
Thickness | 2mm |
Finish | 304 polished satin stainless steel |
Failid
DESCRIPTION
HEMI inset round washbasin Ø 385mm - Ref. 120491
Round washbasin for recessed installation from above or below.
Basin internal diameter: 385mm.
Cut-out diameter: 400mm for installation from above, 380mm for installation from below.
Bacteriostatic 304 stainless steel.
Bright polished finish.
Stainless steel thickness: 0.8mm.
One-piece, seam-free pressed bowl.
Rounded edges prevent injury.
Supplied with 1 1⁄4" waste.
Without overflow.
CE marked. Complies with European standard EN 14688.
Weight: 1.6kg.
Wall-mounted TRAPEZ washbasin
Ref. 121270
Wall-mounted washbasin, 600x505mm.
Shallow washbasin suitable for people with reduced mobility.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm.
Rounded edges prevent injury.
Supplied with 1 ¼" waste.
Without overflow.
With central tap hole Ø 35mm.
Supplied with fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 5.5kg.
CANAL wall-mounted wash trough
Ref. 120240
Wall-mounted wash trough for 1 post.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1mm for the bowl, 1.5mm for surroundand fixing brackets.
Drainage on the right.
With no tap hole.
Supplied with 1 ½" waste.
Without overflow.
Supplied with brackets and fixing elements.
CE marked. Complies with European standard EN 14296.
Weight: 6kg.
Possible to add a bacteriostatic 304 stainless steel splashback (ref. 0011800001).
CANAL wall-mounted wash trough
Ref. 120280
Wall-mounted wash trough for 3-4 posts - L. 1,800mm
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1mm for the bowl, 1.5mm for surround and fixing brackets.
Easy to install: no joint concealers to install, light wash trough.
Drainage on the right.
With no tap hole.
Supplied with 1 ½" waste.
Without overflow.
Supplied with brackets and fixing elements.
CE marked. Complies with European standard EN 14296.
Weight: 15.5kg.
Possible to add a bacteriostatic 304 stainless steel splashback (ref. 0011800005).
Floor-standing disposal sink
Ref. 180150
Floor-standing disposal sink.
Bacteriostatic 304 stainless steel. Polished satin finish.
Stainless steel thickness: 1.0mm.
One-piece pressed bowl, seam-free.
Smooth surface is easy to clean.
Adjustable feet height up to 40mm.
Supplied with 1½" waste. Without overflow.
Hinged stainless steel bucket grid.
Weight: 10.6kg.
TECHNICAL FEATURES
Floor-standing disposal sink
Ref. 180150
Height | 475/495mm |
---|---|
Length | 480mm |
Width | 480mm |
Thickness | 1.0mm |
Finish | 304 polished satin stainless steel |
