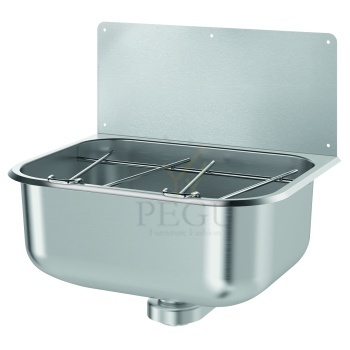

Delabie L460mm valamu, ämberresti ja pritsmisplekiga R/V teras AISI304

Tootekood: DE-182400+102400
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Hind: 579,00 €
521,10 €
Kuumakse alates: 44,33 €
Kogus: - +

Wall-mounted cleaners' sink
Ref. 182400

Wall-mounted cleaners' sink with splashback.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 0.9mm.
Seam-free, pressed bowl.
Deep sink.
Smooth surface.
Rounded edges prevent injury.
Supplied with 1½" waste .
Without overflow.
Supplied with fixing elements and splashback.
Weight: 4.6kg.



TECHNICAL FEATURES

Wall-mounted cleaners' sink
Ref. 182400

Height 404mm
Length 370mm
Width 460mm
Thickness 0.9mm
Finish Polished satin 304 stainless steel

Failid

Sarnased tooted
Tootekood: 461760 ,   Tarneaeg: 7-14 päeva
412,00 €
Antivandaalne R/V teras piezo dušisi nupp, eelsegatud veele,  ilma el.adaptorita



AUS 11

Pressure button-controlled shower for heat regulated water










AUS 11 is a new type of shower fitting for single shower control. The fitting is designated for premixed water – with one water inlet and shower outlet elbow. Water is released and closed by an anti-vandal pressure button connected to electronics and an electromagnetic valve. The fitting is covered by a rust-free anti-vandal cover to prevent damage.

The mounting system has been designed so as to make removing the cover without using tools impossible with no bolt or screw being visible. The cover can be "pushed into" the wall level even if the mount box has been walled to an incorrect depth.

AUS 11 is identical to AUS 1P with a different design and very resistant cover sheet.

Electronics can work in two modes:

1) The button works on the START/STOP basis – water release/closing. If the water is not turned off upon the time adjusted by the user or manager (e.g. 20 seconds), the electronic system itself instructs water stopping. The user must press again to start water running. This significantly saves water as the user reduces the showering time.

2) The button works on the START/STOP basis. After the time adjusted by the manager (e.g. 3 minutes) expires there is a forced break when water cannot be released. During this time, the user is forced to leave the shower or wait. This prevents needless showering – water wasting.




Basic technical information
Water input: G 1/2“
Water pressure: 1 - 10 Bar (0,1 – 1,0 MPa)
Time of water flow: 10 s – 42,5 min in mode 1
  0 s - 42,5 min in mode 2
Power supply: 12 V, 50 Hz
Power requirement: 6 VA
Source of power supplz: ZAC 1/20 (max. 3× AUS 11)
  ZAC 1/50 (max. 8× AUS 11)
Weight: 2,0 kg


Requirements for setting up the construction
  1. Water installation set up as per picture
  2. Set-up alcove 150 x 75 mm for installation casket
  3. Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC


Complete delivery
  • installation casket
  • input and output bolting
  • electromagnetic valve
  • spherical valve
  • covering metal plate with piezo button
  • electronics


Made to order
  • SP 1 – shower arm with water flow of 9 l/min
  • SP 2 – shower arm with water flow of 7 l/min
  • SP 3 – shower arm with water flow of 7 l/min
  • ZAC - source of power supply 12V, 50Hz


Figure


A - water inlet G 1/2"
C - electricity supply cable 12 V, 50 Hz
G - water outlet into shower armG 1/2"




Download information about the product
AUS 11 data for projectants - ( 84 kB )

Tootekood: AZP-AUS 11 ,   Tarneaeg: 3-4 nädalad
375,00 €

Koristajavalamu R/V teras 455x330, pritsmisplekiga+ämberrestiga

Characteristics

  • stainless steel wall hung cleaner‘s sink
  • with splash-back and grating
  • overflow set
  • waste output Ø 50 mm
  • material CrNi 18/10 (AISI-304)
  • brushed finish
Order number 98010
Code SLVN 01



Характеристики

  • stainless steel wall hung cleaner‘s sink
  • with splash-back and grating
  • overflow set
  • waste output Ø 50 mm
  • material CrNi 18/10 (AISI-304)
  • brushed finish
Арт. № 98010
Название SLVN 01
Tootekood: SA-SLVN 01 ,   Tarneaeg: 3-4 nädalad
635,00 €

Drinking fountain in stainless steel 18/10 for wall mounting. Supplied with supporting bracket, grated waste, wall panel and water bubbler.

Tootekood: I-ED2-0DF ,   Tarneaeg: 14-21 päeva
537,00 €

Pissuaari mehhanism infra-red paigalduse karbiga, adaptoriga 230V/AC

SLP 02NZ



Urinal infra-red flushing unit with a mounting box and integrated power supply, 230 V AC



Characteristics

  • system reacts to the user attendance in front of the urinal at a maximum distance of 0,7 m, minimum stay time in active range is 7,5 s
  • water flows after the user leaves active range
  • adjustable flushing time 0,5 - 15,5 s
  • parameters adjustment by remote control SLD 03
  • automatic hygiene flushing after 24 hours non-use
  • possibility to regulate a water flow by the ball valve
Order number 42023
Code SLP 02NZ


Supply specification

SLP 02NZ - Supply No. 42023 - stainless steel cover with electronics, plastic mounting box with brass screw coupling, electromagnetic valve and ball valve, power supply

Technical information

Stainless steel cover dimension: 170 x 170 x 10 mm
Mounting box dimension: 140 x 140 x 75 mm
Operating voltage: 230 V AC/50 Hz
Active range: 0,6 - 0,75 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 3/4“
Water outlet: male thread G 3/4“
Tootekood: SA-SLP02NZ ,   Tarneaeg: 14-21 päeva
415,00 €
