Delabie Paneel seinale, valamule CANAL 3000mm, R/V teras
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Müüja: PEGU OÜ

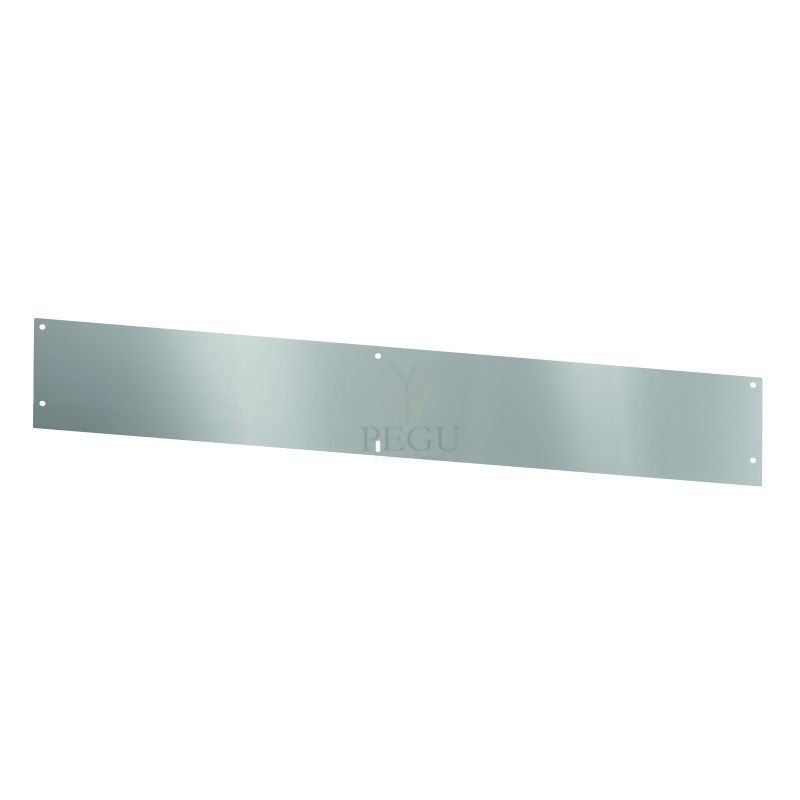

3000mm splashback for lavabo CANAL wash trough
Ref. 100310
Splashback for CANAL wash trough.
Bacteriostatic 304 stainless steel.
Polished satin stainless steel.
Stainless steel thickness: 1.2mm.
Length: 3000mm.
Liivapüüdur SAND-02 Elcee 220, 3,5L, R/V teras, AISI304
Kasutusjuhend:
Liivapüüdur SAND-02 Elcee 220, 3,5L, roostevaba teras, AISI304
Liivapüüdur SAND-02 Elcee 220 on mõeldud liiva filtreerimiseks veest ning selle maht on 3,5 liitrit. Seade on valmistatud roostevabast terasest (AISI304) ja on ideaalne paigaldamiseks otse kraanikausi või valamualuse alla.
Paigaldamine:
Liivapüüdur on lihtne paigaldada otse kraanikausi või valamualuse alla, kasutades selleks sobivaid kinnitusvahendeid.
Kasutamine:
Liiv ja mustus kogunevad seadme alumisse kaussi. Seadme efektiivse töö tagamiseks on vajalik kaussi regulaarselt tühjendada.
Hooldus:
Kauss on kinnitatud korpuse külge kahest küljest kinnitustega. Kaussi puhastamiseks eemaldage see kinnitustest, tühjendage ja vajadusel puhastage.
Üldmõõtmed millimeetrites: Ø174 x 235
Sissevoolu mõõtmed millimeetrites: 1,5"
Väljavoolu mõõtmed millimeetrites: 1,5"
Materjal: AISI 304
Materjali paksus millimeetrites: 1,5
Kogukaal kilogrammides: 2,50
Wash trough acc. Separator SAND-02
Description
The sand catcher has a capacity of 3,5 litres and is ideal for filtering sand from water.
It is easy to mount directly under a washbasin or a wash trough.
The sand catcher is delivered with a flexible outlet that will enable straight or bent installation possibilities.
Material: Stainless steel AISI 304
Overall dimension in mm Ø174 x 235
Inlet dimension in mm 1.5"
Outlet dimension in mm 1.5"
Material AISI 304
Material thickness in mm 1.5
Gross weight in kg 2.50
Intra seinale kinniatav majandusvalamu VK 655x505x250mm, R/V teras
Wall hung utility sink in stainless steel. Supplied with fixing brackets.
Pissuaari mehhanism infra-red paigalduse karbiga, 24 V DC
SLP 02K
Urinal infra-red flushing unit with a mounting box, 24 V DC
Characteristics
- system reacts to the user attendance in front of the urinal at a maximum distance of 0,7 m, minimum stay time in active range is 7,5 s
- water flows after the user leaves active range
- adjustable flushing time 0,5 - 15,5 s
- parameters adjustment by remote control SLD 03
- automatic hygiene flushing after 24 hours non-use
- possibility to regulate a water flow by the ball valve
| Order number | 01022 |
| Code | SLP 02K |
Supply specification
Technical information
Mounting box dimension:140 x 140 x 75 mm
Operating voltage: 24 V DC
Active range: 0,6 - 0,75 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 3/4“
Water outlet: male thread G 3/4“
AFO 01.Yst. steel sensor controlled drinking fountain
AFO 01.Y is st. stainless wall hung drinking fountain controlled by sensor. Water runs after disrupting the scanning zone.
Fountain is made by welding all components together.
Fountain is suppplied with safety power 12 V, 50 Hz from power supply ZAC (AFO 01.Y) or with 4x AA battery (AFO 01.YB).
Material is standardly st. steel AISI 304 or can be AISI 316 (AFO 01.Y.CL or AFO 01.YB.CL).
St. steel driking fountain AFO 01.Y is based on favourite model AFO 01 with manual control.
The sensor, located on the right side of the fountain, is reacting on the approach of the user. Water starts to run from the nozzle, located in the middle of the fountain bowl, and runs over the time when the user´s head is in the scanning zone (max. 30 sec.) + preset time (max. 4 sec.) to clean the nozzle.
Package contents
- st. steel drinking fountain
- nozzle
- sensor and electronic
- electromagnetic valve
- connecting flexible hose
- corner valve with filters
- siphon
- mounting material
| water inlet | G 1/2" |
| water pressure | 1 - 10 Bar (AFO 01.Y; AFO 01.Y.CL) |
| 2 - 8 Bar (AFO 01.YB; AFO 01.YB.CL) | |
| outlet | d = 40 mm |
| bowl inner dimension | d = 245 mm |
| weigth | 4 kg |
| suppply | 12 V, 50 Hz (AFO 01.Y; AFO 01.Y.CL) |
| 6 V - 4 x AA battery (AFO 01.YB; AFO 01.YB.CL) | |
| power supply | ZAC 1/20 (max. 3 x AFO 01.Y ; AFO 01.Y.CL) |
R/V teras WC pott ja valamu
AISI304 paksus 1,5 mm
Kinnitus poltidega läbi seina
Loputus ühendus 1"
WC äravool 100mm
Valamu ärravool 32mm
NB! Vee mehhanismid on vaja tellida eraldi
