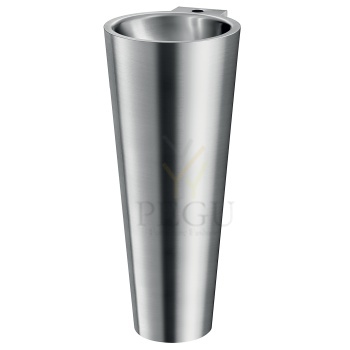

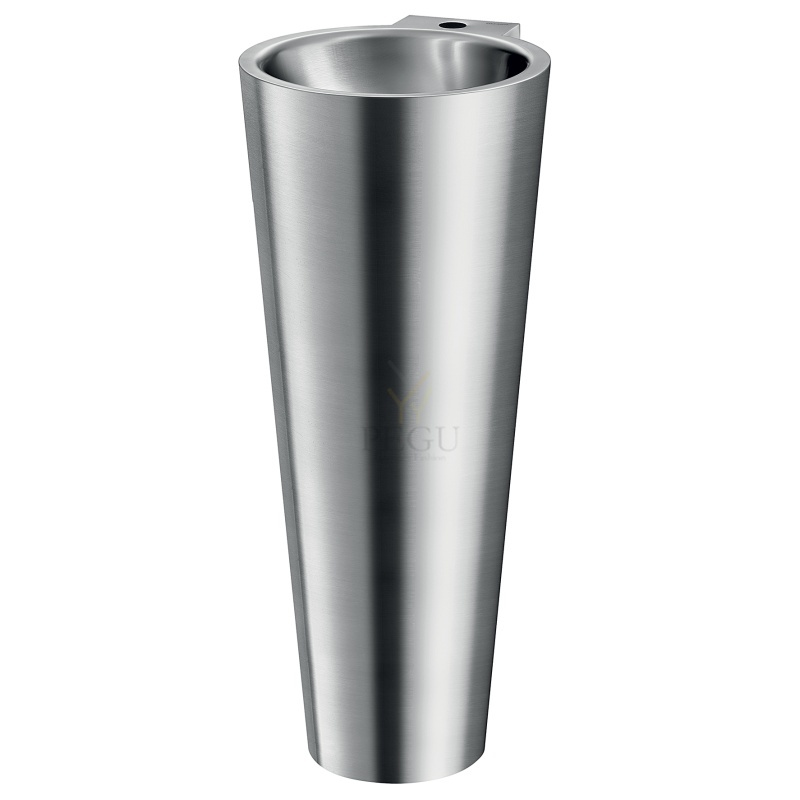

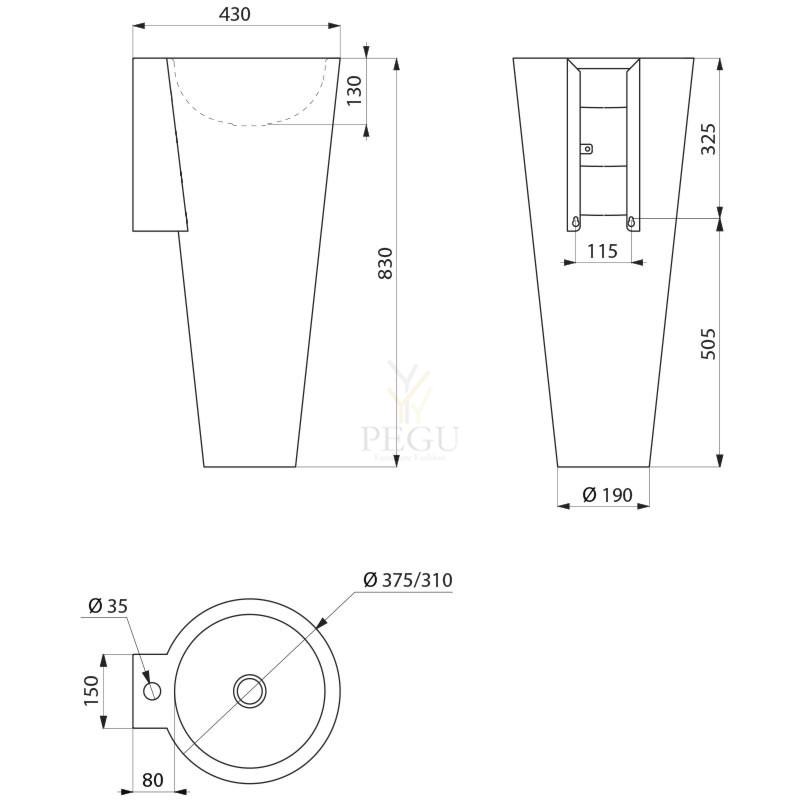

Delabie põranda valamu BAILA segistiavaga d35mm roostevaba teras satiin

Antivandaalne R/V teras piezo dušisi nupp, eelsegatud veele, ilma el.adaptorita

	AUS 11 Pressure button-controlled shower for heat regulated water

AUS 11 is a new type of shower fitting for single shower control. The fitting is designated for premixed water – with one water inlet and shower outlet elbow. Water is released and closed by an anti-vandal pressure button connected to electronics and an electromagnetic valve. The fitting is covered by a rust-free anti-vandal cover to prevent damage.

The mounting system has been designed so as to make removing the cover without using tools impossible with no bolt or screw being visible. The cover can be "pushed into" the wall level even if the mount box has been walled to an incorrect depth.

AUS 11 is identical to AUS 1P with a different design and very resistant cover sheet.

Electronics can work in two modes:

1) The button works on the START/STOP basis – water release/closing. If the water is not turned off upon the time adjusted by the user or manager (e.g. 20 seconds), the electronic system itself instructs water stopping. The user must press again to start water running. This significantly saves water as the user reduces the showering time.

2) The button works on the START/STOP basis. After the time adjusted by the manager (e.g. 3 minutes) expires there is a forced break when water cannot be released. During this time, the user is forced to leave the shower or wait. This prevents needless showering – water wasting.

Basic technical information
Water input:	G 1/2“
Water pressure:	1 - 10 Bar (0,1 – 1,0 MPa)
Time of water flow:	10 s – 42,5 min in mode 1
	0 s - 42,5 min in mode 2
Power supply:	12 V, 50 Hz
Power requirement:	6 VA
Source of power supplz:	ZAC 1/20 (max. 3× AUS 11)
	ZAC 1/50 (max. 8× AUS 11)
Weight:	2,0 kg

Requirements for setting up the construction
Water installation set up as per picture Set-up alcove 150 x 75 mm for installation casket Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC

Complete delivery
installation casket input and output bolting electromagnetic valve spherical valve covering metal plate with piezo button electronics

Made to order
SP 1 – shower arm with water flow of 9 l/min SP 2 – shower arm with water flow of 7 l/min SP 3 – shower arm with water flow of 7 l/min ZAC - source of power supply 12V, 50Hz

Figure

A -	water inlet G 1/2"
C -	electricity supply cable 12 V, 50 Hz
G -	water outlet into shower armG 1/2"

Download information about the product
AUS 11 data for projectants - ( 84 kB )

Tootekood: AZP-AUS 11 , Tarneaeg: 3-4 nädalad

375,00 €

Automatne kummikute pesur harjaga, 220V, 50Hz

RMO 02

automatic washing system for wellingtons

RMO 02 is a stainless steel sensor-controlled washing system with rotary brushes for wellingtons. A built-in photocell sensor reacts to the user holding the handrail. The electromagnetic valve switches on, opens the water inlet, the brushes start to rotate and the circular jet injection of the disinfecting lotion is carried out. After placing the foot with the wellington on the grid in between the rotary brushes, the sole is cleaned by means of the horizontal brush and the leg portion is cleaned by means of two vertical brushes. The system is automatically switched off when the user releases the handrail. There is a CENTRAL/STOP button on the handrail for emergency switch-off.
The washing system is intended for free standing installation on the floor. Imperfections of the floor are balanced out by four adjustable hobs. The construction of the system allows the outlet to be placed above the floor level.
The RMO 02 washing system, with its easy maintenance, is mainly intended for operations where quick removal of mechanical dirt from wellingtons is required.
The canister with disinfecting solution is not part of the delivery.

Package contents

body of the washing machine
removable grid
electronics with photocell
three rotary brushes
jerican holder
priming hose
adjustable supporting legs
central stop button

Radius of sensor	0,7 m
Water inlet	G 1/2“
Water pressure	0,1 – 1,0 MPa
Outlet	G 6/4”
Electricity protection	IP 55
Power supply	230 V, 50 Hz
Power requirement	370 W
Water temperature	max. 42°C
Weight	95 kg

Set up water inlet as per picture
Set up outlet G 6/4” via effluvial cover
Set up cable for power supply – 230 V, 50 Hz

Tootekood: AZP-RMO 02 , Tarneaeg: 3-5 nädalat

16293,00 €

Delabie valamu REDO 121710, R/V teras AISI304

REDO wall-mounted washbasin
Ref. 121710

Wall-mounted washbasin.
Basin internal diameter: 320mm.
Clean and simple design.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm.
Rounded edges prevent injury.
With central tap hole Ø 35mm.
Supplied with 1 ¼" waste.
Without overflow.
Supplied with fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 3kg.

TECHNICAL FEATURES

REDO wall-mounted washbasin
Ref. 121710

Height	150mm
Length	375mm
Width	430mm
Thickness	1.2mm
Finish	304 polished satin stainless steel

Tootekood: DE-121710 , Tarneaeg: 14 päeva

463,60 €

Intra ICON valamu IC1 harjatud, alt paigaldamiseks

General

Size (mm):	525 x 334 x 97
Large bowl (mm):	500 x 310 x 83
Designer:	Halvor Thorsen

Description

Icon Hand Wash Basin IC1-32 in stainless steel 18/10, is designed for under mounting.The hand wash basin is pressed in one piece and has laser-cut integrated outlet holes that are concealed by a removable outlet cover.The basin is supplied with waste under part and overflow equipment.

Brushed finish.

Tootekood: I-IC1 32N , Tarneaeg: 14-21 päeva

439,00 €

Joogifontään veejahutussüsteemiga, pudeli taitmisega põrand/sein piezo nupp, R/V teras AISI304 230V/50Hz

AFO 01.SCL

drinking fountain with cooling and spout for filling bottles designed to stand and to be attached to wall

AFO 01.SCL is a drinking fountain with cooling and spout for filling bottles designed to stand and to be attached to wall. User can select between uncooled water and water running through a flow cooler. Uncooled water is used for bottle filling as a standard – can be changed. Start/stop control by piezo-buttons – resistant solution. Facility keeper can set a time period after which the water flow automatically stops.

The product contains a flow cooler. It is not a design with cooled tank only where – after the pre-cooled amount of water is pumped out – the user has to wait for the next charge to be cooled.

Water supply is provided by a flexible hose, trap comprises an elastic flexible couple. Flexible design of water supply and outflow allows variable and easy connection of the drinking fountain as well as its dismounting.

Automatic drinking fountain (with a sensor) can be supplied per order.

AFO 01.SCL is manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order. For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

Package contents

Stainless housing with cone
Electronics and control piezo-buttons
Water supply and electromagnetic valves
Flow cooler
Flexible hose outflow
Fixing and connecting material

dimensions	330 x 900 x 365 mm
water outlet	d = 40 mm
water inlet	G 1/2"
water pressure	0,2 – 0,6 MPa, recommended 0,3 MPa
power supply	230 V, 50 Hz
power input	830 W
weight	25 kg

Set up water outlet d = 40 mm
Set up water inlet G 1/2"
Electric socket 230 V, or set up electric cable CYKY 3C x 1,5

Tootekood: AZP-AFO01.SCL , Tarneaeg: 3-4 недели

5765,00 €
