Water inlet | G 1/2" |
Water pressure | 2 – 6 Bar, recommended 3 Bar |
Outlet | d = 40 mm |
Inner dimensions of sink | d = 290 mm |
Weight | 20 kg |
Delabie põranda valamu BAILA valamu roostevaba teras poleeritud
Kaubamärk:
![Delabie-PEGU](https://www.pegu.ee/media/gavial/.image/brand-thumb/general/SEnda/DELABIE_C100M35.jpg)
Ühik: tk
Tarneaeg: 14-21 päeva
Kohustuslik märge projekti spetsifikatsioonis: PEGU OÜ

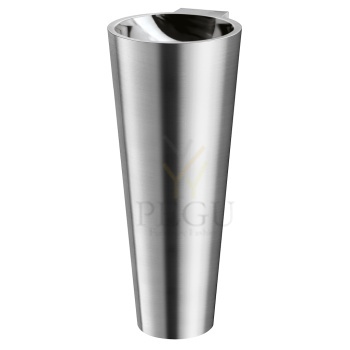

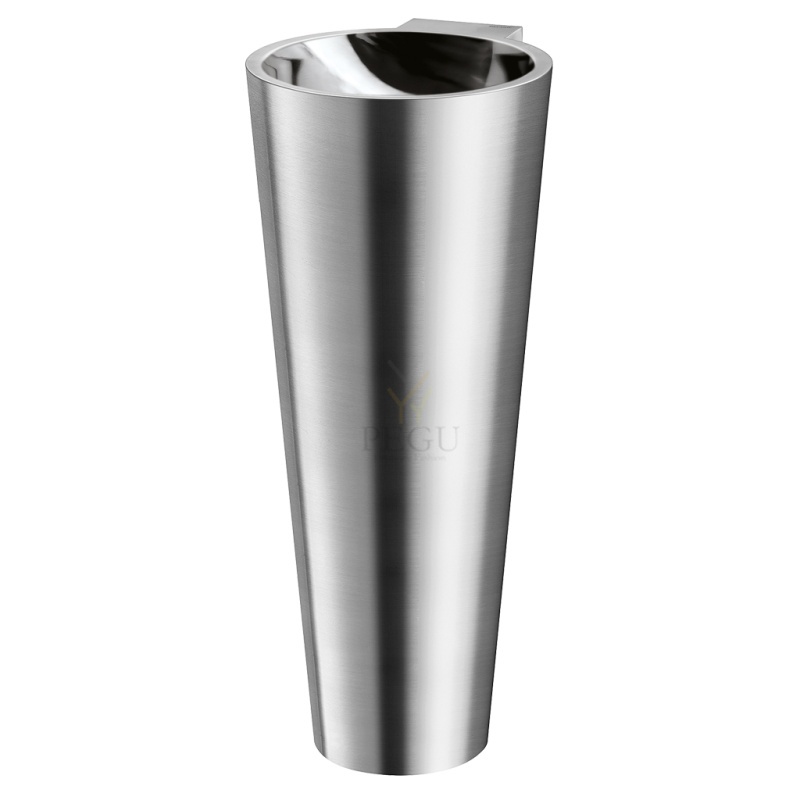

Floor-standing BAILA washbasin
Ref. 120172

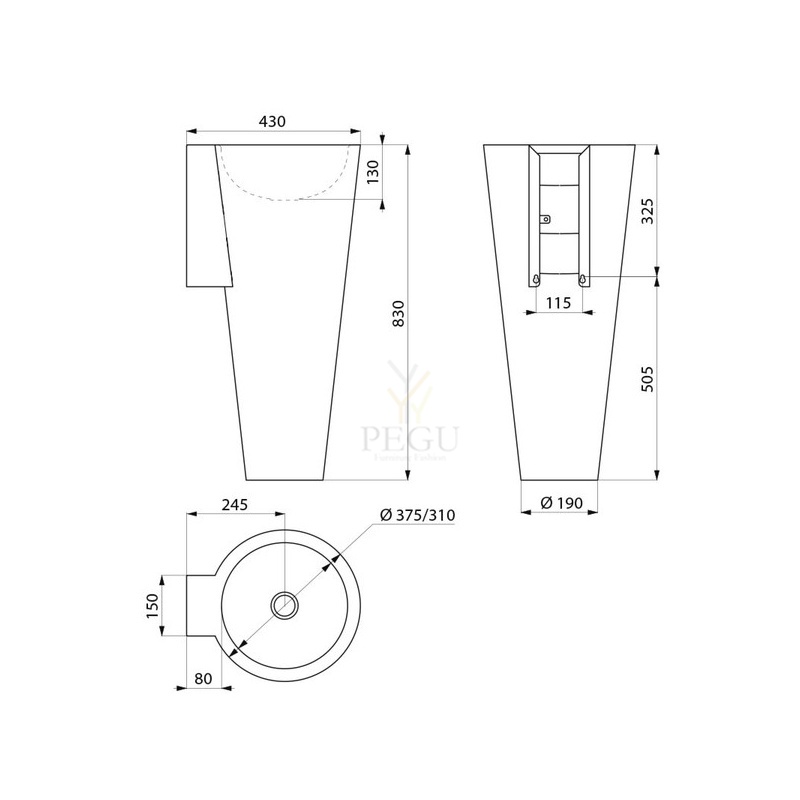

Floor-standing washbasin, height 830mm. Basin internal diameter: 310mm.
Design-led styling.
Bacteriostatic 304 stainless steel.
Dual finish: bright polished basin interior and polished satin exterior.
Stainless steel thickness: 0.8mm.
Rounded edges prevent injury.
Without tap hole.
Supplied with 1¼" waste. Without overflow.
Supplied with fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 12kg.
Failid
Intra GUB2 R/V teras koristaja valamu, ämberresti ja pritsmisplekiga
Valamu R/V terasest
Garaazi/koristusruumi jaoks
Bucket sink in stainless steel for wall mounting. Supplied with stainless steel wall panel, supporting bracket and 3 1/2" x 2" waste with plug and overflow.
Joogifontään free-standing mehaaniline R/V teras AISI304
AFO 02 - IIstainless steel free-standing drinking fountain (indoor/outdoor)
AFO 02-II is a stainless steel drinking fountain of modern design with a manual press valve that allows its easy use. The water flows only when the valve is pressed and then there is a certain adjusted time to rinse out the nozzle.
The drinking fountain is to be placed in an open space. It is made up of an anchoring part intended for embedding in concrete and the column itself with a press valve and nozzle. These parts are connected by means of 3 screws and the upper part can be, therefore, easily dismounted in case of necessity (e.g. during winter).
The water inlet is fitted with a flexible hose, the siphon is made from a stretchy, flexible connector. The flexible finish of the water inlet and outlet allows the variable and problem-free connection of the fountain.
AFO 02-II stainless steel fountain is suitable mainly for schools, medical facilities and spa resorts, and is utilizable outdoors.
Drinking fountain AFO 02-II is manufactured from the stainless steel AISI 304. AFO 02.CL-II is made of the stainless steel AISI 316 and is suitable for places with higher concentration of chlorine.
For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).Detail of the bowl
Package contents
- stainless steel column and cone with nozzle
- press valve
- anchoring construction
- flexible hose siphon
- connecting hoses
- anchoring material
- Set-up water inlet - pipe G 1/2“
- Set-up drainage d = 40 mm
- Prepared alcove for embedding (concreting) in the base construction
Joogifontään põranda/sein mehaaniline R/V teras AISI304
AFO 01.S
stainless steel drinking fountain with pressure valve designed to stand and to be attached to wall
AFO 01.S is a drinking fountain of stainless steel with pressure valve designed to stand and to be attached to wall. Water runs for the time for which the valve is pressed plus the pre-set period after it is released; thus the jet can be rinsed.
Water supply is provided by a flexible hose, trap comprises an elastic flexible couple. Flexible design of water supply and outflow allows variable and easy connection of the drinking fountain as well as its dismounting.
Automatic drinking fountain (with a sensor) can be supplied per order.
AFO 01.S is manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order. For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).
Package contents
- Stainless housing with cone
- Pressure valve with jet
- Flexible hose outflow
- Fixing and connecting material
dimensions | 330 x 900 x 365 mm |
outlet | d = 40 mm |
water inlet | G 1/2" |
water pressure | 0,2 – 0,6 MPa, recommended 0,3 MPa |
weight | 12 kg |
- Set up water outlet d = 40 mm
- Set up water inlet G 1/2"
Semi-recessed QUADRA washbasin
Ref. 120650
Semi-recessed washbasin, 380x380mm.
Suitable for use with wall-mounted or extended mixer/tap.
Basin internal diameter: 310mm.
Cutout diameter: 310mm.
Stainless steel thickness: 1.2mm.
Polished satin finish.
Stainless steel thickness: 1.2mm.
One-piece, seam-free pressed bowl.
Rounded edges prevent injury.
Supplied with 1¼" waste.
Without overflow.
CE marked. Complies with European standard EN 14688.
Weight: 3kg.
TECHNICAL FEATURES
Semi-recessed QUADRA washbasin
Ref. 120650
Height | 130mm |
---|---|
Length | 380mm |
Width | 380mm |
Thickness | 1.2mm |
Finish | Polished satin 304 stainless steel |
