Delabie TEMPOMATIC WC ventiil 3/4" süvistav baas 6V bat kit 1/2 (+464006)

Tootekood: DE-464PBOX
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Hind:
225,70 €
Kuumakse alates: 19,25 €
Kogus: - +

Delabie TEMPOMATIC WC ventiil 3/4" seina süvistav baas 6V bat kit 1/2 (liskas on vaja DE-464006)

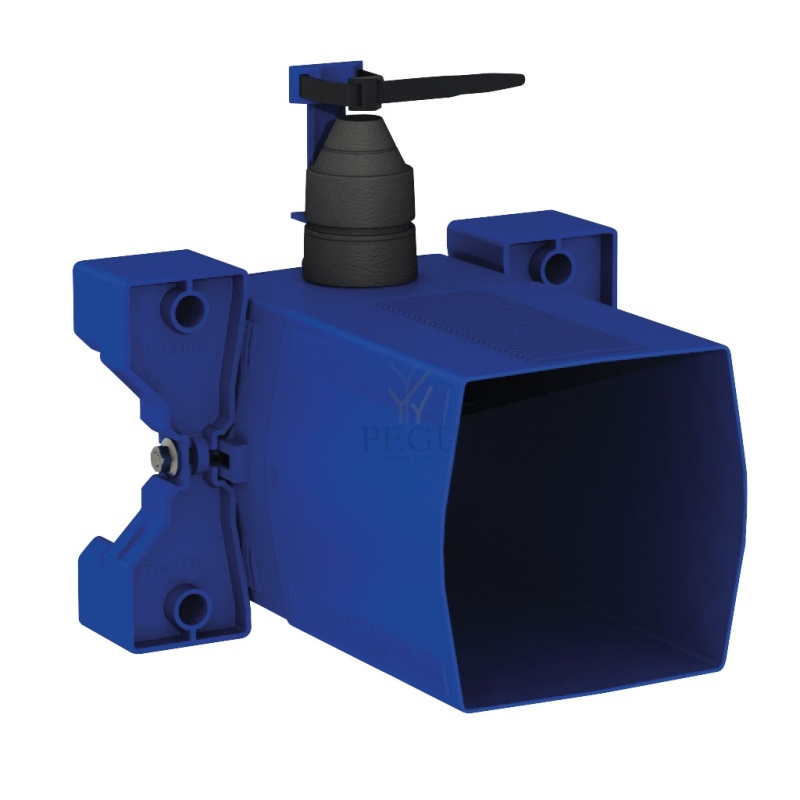

Recessed waterproof housing for TEMPOMATIC dual control WC

Ref. 464PBOX

Recessed waterproof housing, kit 1/2:
Flush system without cistern: directly connected to pipework.
Compatible with electronic WC valve.
CR123 6V Lithium battery-operated.
Collar with waterproof seal.
Hydraulic connection to the outside and maintenance from the front.
Adjusts to all types of installation (rails, solid walls, panels).
Compatible with wall finishes from 10 - 120mm (while maintaining the minimum recessing depth of 93mm).
Suitable for standard or "pipe-in-pipe" supply.
Stopcock and flow rate adjustment, activation and electronic unit are all integrated and accessible from the front.
Backflow prevention device inside the housing.
Secure system flush without sensitive elements.
Outlet connection for PVC tube Ø26/32mm.


Order with control-plate reference 464006.

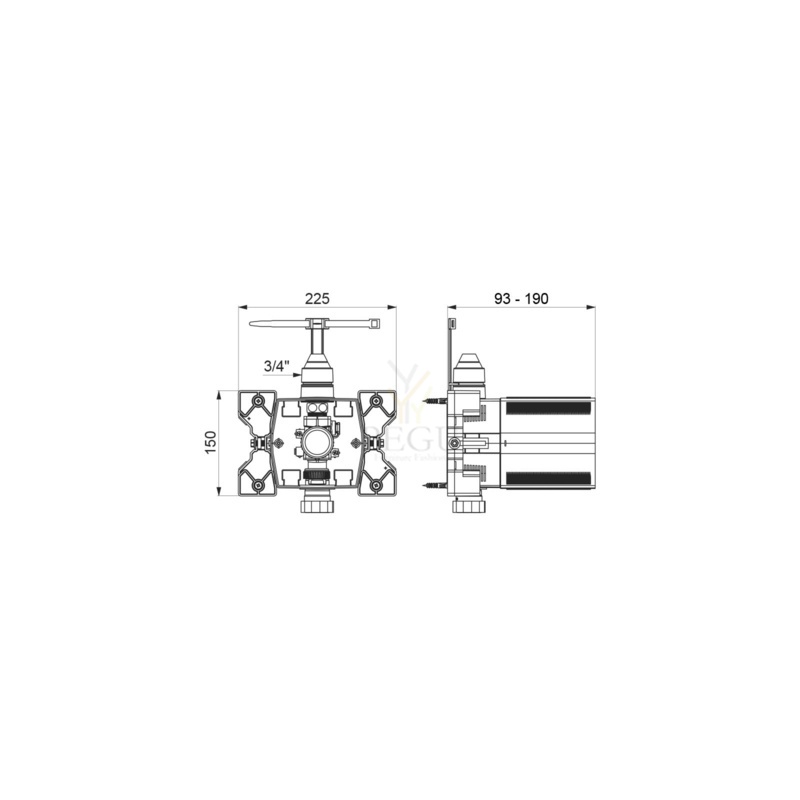

TECHNICAL CHARACTERISTICS

Recessed waterproof housing for TEMPOMATIC dual control WC

Ref. 464PBOX
Connector F¾"
Technology Electronic and time flow
Height 150mm
Depth 93 to 190mm
Width 225mm





Kokku sobivad tooted

Delabie süvistatav dual control electronic battery-operated WC ventiil RST

TEMPOMATIC dual control plate for WCs

Ref. 464006

TEMPOMATIC recessed, dual control, electronic valve for direct flush, kit 2/2:
Flush system without cistern: directly connected to pipework.
Battery-operated with CR123 6V Lithium batteries.
Satin finish stainless steel wall plate 186 x 186mm and chrome-plated metal button, with integrated electronics.
TEMPOMATIC F¾" flush valve is compatible with sea water, rain water and grey water.
Shock-resistant infrared presence detection sensor.
Detection delay is 10 seconds.
Voluntary activation (anti-blocking push-button) or automatically without contact when the user leaves.
Independent push-button: the flush will activate even if the power supply fails.
"Intelligent" automatic rinsing: flush volume adapts according to use - 3L "short" usage, 6L "long" usage - (can be adjusted to 2L/4L or 5L/9L).
3 programmes (rinsing volume can be set according to type of WC pan).
Hygienic duty flush every 24 hours (can be adjusted to 12 hours or OFF) after the last use.
Base flow rate: 1L/sec at 1 bar dynamic pressure.
Suitable for rimless WC pans without flow rate regulation and suitable for people with reduced mobility.


Order with frame system references 564060DE or 564065DE, or with recessed housing 464PBOX.


TECHNICAL CHARACTERISTICS

TEMPOMATIC dual control plate for WCs

Ref. 464006
Supply 6V batteries
Connector F¾"
Technology Electronic and time flow
Length 186mm
Width 186mm
Finish Satin stainless steel
Tootekood: DE-464006 ,   Tarneaeg: 14-21 päeva
713,70 €
