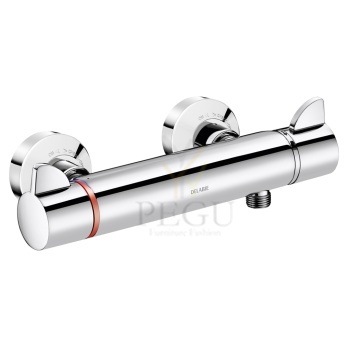

Delabie termostaat segisti dushile SECURITHERM kroom HOSPITAL

Tootekood: DE-H9741
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Hind: 567,00 €
510,30 €
Kuumakse alates: 43,38 €
Kogus: - +

DESCRIPTION

SECURITHERM Securitouch thermostatic shower mixer
Ref. H9741

SECURITHERM dual control thermostatic shower mixer with:
- Anti-scalding failsafe: hot water shuts off immediately if cold water supply fails (and vice versa).
- Securitouch thermal insulation to prevent burns.
- Scale-resistant thermostatic cartridge for temperature adjustment.
- 1/4-turn ceramic head for flow rate adjustment.
- Temperature control: 25 - 41°C.
- Double temperature limiter: first limiter set at 38°C can be overridden, second limiter set at 41°C.
- Thermal shocks are easy to undertake without removing the control knob or shutting off the cold water supply.
- Flow rate regulated at 9 lpm.
- Chrome-plated brass body and ERGO controls.
- M1/2" shower outlet.
- M3/4" inlets with integrated filters and non-return valves.
Mixer supplied with offset M1/2" M3/4" STOP/PURGE connectors, suitable for hospitals.

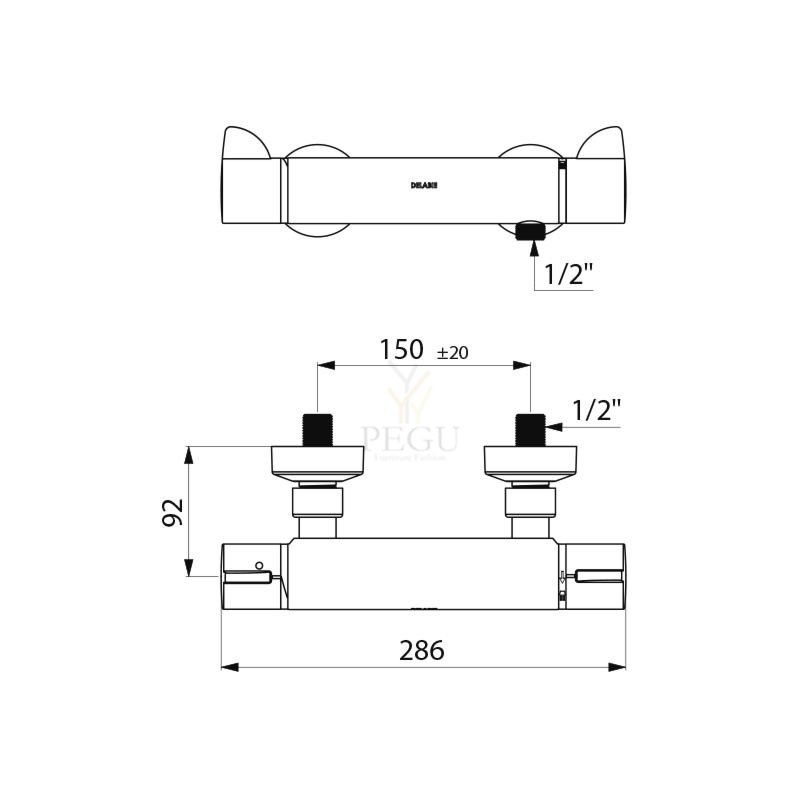

TECHNICAL FEATURES

SECURITHERM Securitouch thermostatic shower mixer
Ref. H9741

Connector M1/2"
Technology SECURITHERM dual control thermostatic, Securitouch
Depth 95mm
Length 286mm
Flow rate 9 lpm
Temperature limiter 41°C
Finish Chrome-plated brass

Failid

Sarnased tooted
Tootekood: D1010000 ,   Tarneaeg: 7 päeva
158,40 € (10%)
176,00 €

Joogifontaan Portinox FP-002 kinnitus seina, põrandani

Tootekood: FP-002 ,   Tarneaeg: 7 nädala
869,00 €

Koristaja valamu Intra U2 490x390x260

Bucket sink in stainless steel for wall mounting. Supplied with stainless steel wall panel, supporting bracket and 3 1/2" x 2" grated waste, and reducer from 2" - 1 1/2".

Tootekood: I-U2EXP ,   Tarneaeg: 7-14 päeva
355,00 €

Damixa termostaatsegisti dušile CORE ZERO, kroom

KÜSI HINDA PROJEKTILE!

Standardomadused:

Keraamiline tööorgan
Põletuskaitsega (38oC)
Veekulu max.16 l/min
Standardne tsentrite vahe 150 mm Veesäästu funktsioon Eco-Klik
Varustatud 3/4" ilukatete ja ekstsentrikutega. 1/2" ühendus käsiduši voolikule

Tootekood: D5740000 ,   Tarneaeg: 7-14 päeva
216,00 € (10%)
240,00 €
Antivandaalne R/V teras piezo dušisi nupp, eelsegatud veele,  ilma el.adaptorita



AUS 11

Pressure button-controlled shower for heat regulated water










AUS 11 is a new type of shower fitting for single shower control. The fitting is designated for premixed water – with one water inlet and shower outlet elbow. Water is released and closed by an anti-vandal pressure button connected to electronics and an electromagnetic valve. The fitting is covered by a rust-free anti-vandal cover to prevent damage.

The mounting system has been designed so as to make removing the cover without using tools impossible with no bolt or screw being visible. The cover can be "pushed into" the wall level even if the mount box has been walled to an incorrect depth.

AUS 11 is identical to AUS 1P with a different design and very resistant cover sheet.

Electronics can work in two modes:

1) The button works on the START/STOP basis – water release/closing. If the water is not turned off upon the time adjusted by the user or manager (e.g. 20 seconds), the electronic system itself instructs water stopping. The user must press again to start water running. This significantly saves water as the user reduces the showering time.

2) The button works on the START/STOP basis. After the time adjusted by the manager (e.g. 3 minutes) expires there is a forced break when water cannot be released. During this time, the user is forced to leave the shower or wait. This prevents needless showering – water wasting.




Basic technical information
Water input: G 1/2“
Water pressure: 1 - 10 Bar (0,1 – 1,0 MPa)
Time of water flow: 10 s – 42,5 min in mode 1
  0 s - 42,5 min in mode 2
Power supply: 12 V, 50 Hz
Power requirement: 6 VA
Source of power supplz: ZAC 1/20 (max. 3× AUS 11)
  ZAC 1/50 (max. 8× AUS 11)
Weight: 2,0 kg


Requirements for setting up the construction
  1. Water installation set up as per picture
  2. Set-up alcove 150 x 75 mm for installation casket
  3. Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC


Complete delivery
  • installation casket
  • input and output bolting
  • electromagnetic valve
  • spherical valve
  • covering metal plate with piezo button
  • electronics


Made to order
  • SP 1 – shower arm with water flow of 9 l/min
  • SP 2 – shower arm with water flow of 7 l/min
  • SP 3 – shower arm with water flow of 7 l/min
  • ZAC - source of power supply 12V, 50Hz


Figure


A - water inlet G 1/2"
C - electricity supply cable 12 V, 50 Hz
G - water outlet into shower armG 1/2"




Download information about the product
AUS 11 data for projectants - ( 84 kB )

Tootekood: AZP-AUS 11 ,   Tarneaeg: 3-4 nädalad
375,00 €
