Delabie utiliseerimise põranda valamu Vidoir XL P R/V teras AISI304

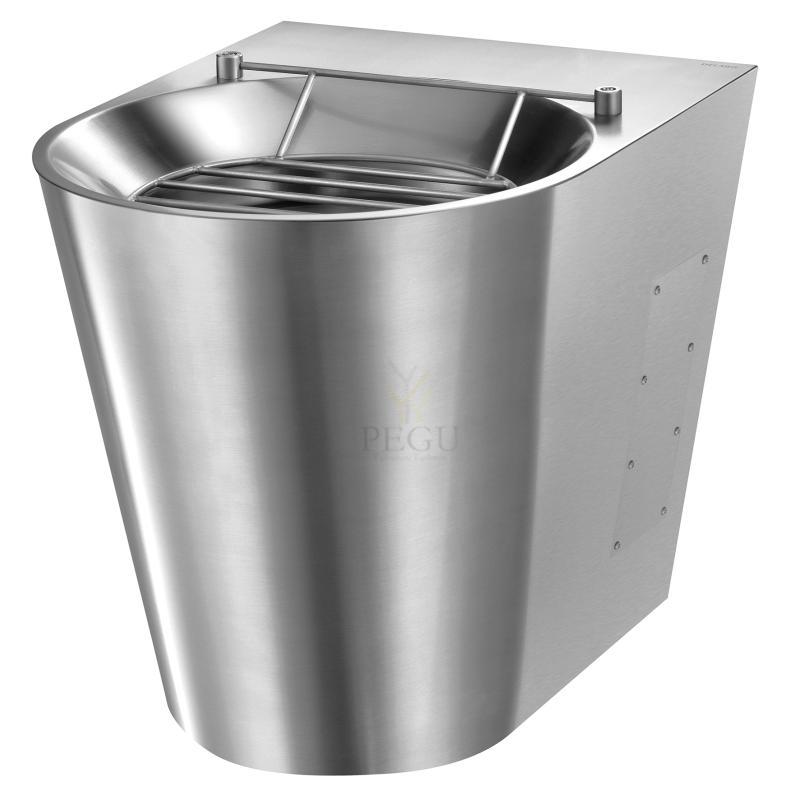

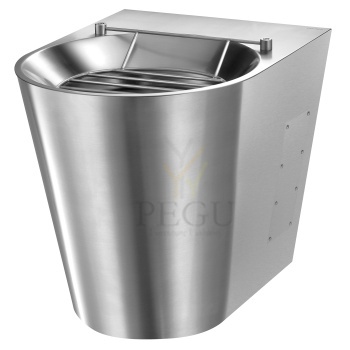

Floor-standing XL P disposal sink
Ref. 182060
Floor-standing disposal sink.
Bacteriostatic 304 stainless steel.
Stainless steel thickness: 1.5mm.
Polished satin finish.
Smooth surface is easy to clean.
Concealed perimetral flushing system.
Horizontal or vertical water inlet: Ø 55mm.
Horizontal or vertical water outlet: Ø 100mm.
Supplied with PVC pipe.
Concealed drainage: shrouded sink.
Quick and easy to install: 2 access panelswith theft prevention TORX security screws.
Hinged stainless steel bucket grid.
Weight: 16kg.

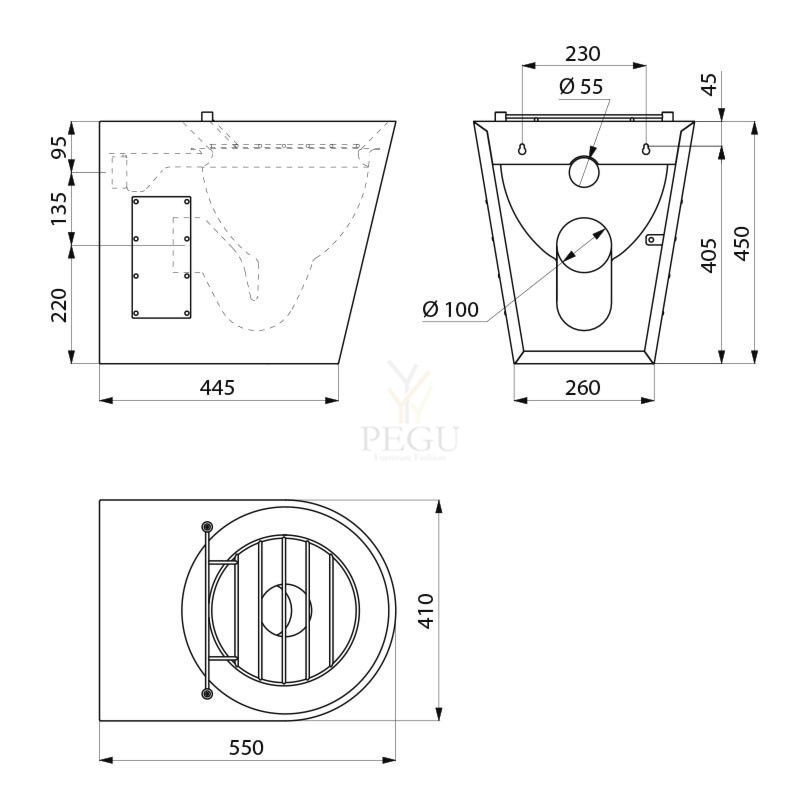

TECHNICAL FEATURES
Floor-standing XL P disposal sink
Ref. 182060
Height | 450mm |
---|---|
Length | 445mm |
Width | 410mm |
Thickness | 1.5mm |
Finish | 304 polished satin stainless steel |
Failid
Automatne kummikute pesur düüsiga, 12V, 50Hz
automatic washing system for wellingtons with jets - 12V, 50Hz
AMO 01 is a stainless steel automatic washing system for wellingtons with sensor-controlled water nozzles. When stepping into the washing chamber of the system (scanning zone) water starts to flow from the nozzles automatically and wellingtons are cleaned of dirt. Water stops flowing with a certain time delay after the foot has been removed from the scanning zone.
AMO 01 is designed for a single pipe inlet of pre-mixed water from the circulation or water pre-mixed by means of a thermostatic valve.
The AMO 01 automatic washing system is intended mainly for operations with slight shoe contamination where quick washing at maximum water savings is guaranteed.
Package contents
- body of the washing machine
- photocell head
- nozzles – 8 pcs
- electromagnetic valves 2 pcs
- corner valves with filter
- connecting hoses
Radius of sensor | 0 – 0,4 m |
Water inlet | G 1/2“ |
Water pressure | 0,3 – 1,0 MPa |
Outlet | d = 32 mm |
Inner dimensions of the trough | 250 x 400 x 280 mm |
Electricity protection | IP 55 |
Power supply | 12 V, 50 Hz |
Power requirement | 10 VA |
Source of power supply | ZAC 1/20 (max. 2 x AMO 01) |
ZAC 1/50 (max. 5 x AMO 01) | |
Weight | 18 kg |
- Set up water inlet as per picture
- Set up outlet d = 32 mm
- Set up cable for power supply – 12 V, 50 Hz from source of power supply ZAC
