Delabie valamu BOB HD roostevaba teras satiin

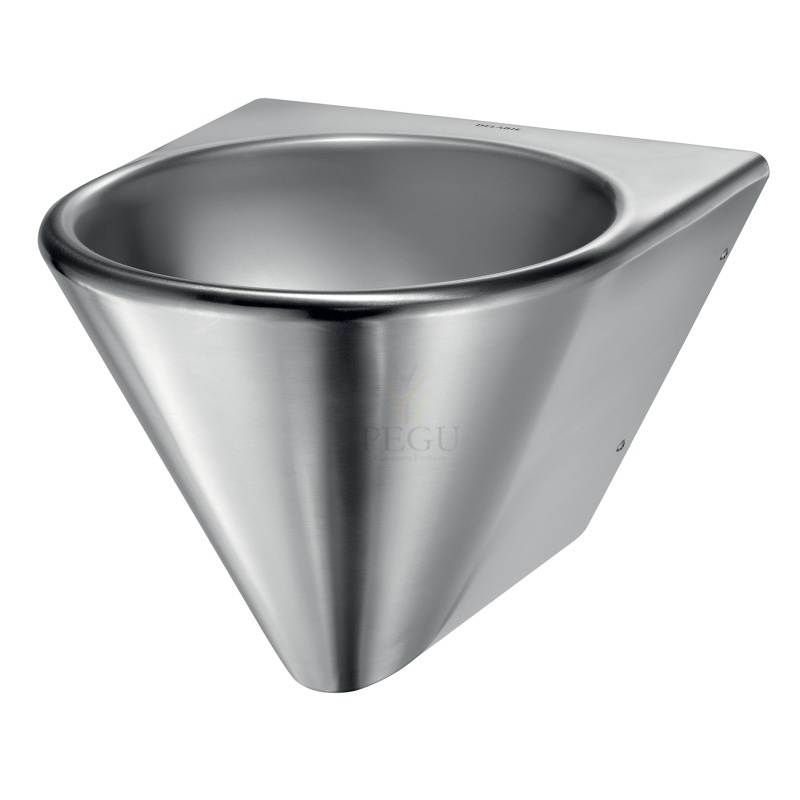

BOB HD washbasin
Ref. 164130
Wall-mounted hand washbasin.
Basin internal diameter: 310mm.
Clean and simple design.
Bacteriostatic 304 stainless steel.
Stainless steel thickness: 1.2mm.
Rounded edges prevent injury.
Vandal-resistant: shrouded basin, concealed trap, reinforced mounting frame.
Quick and easy to install from the front thanks to a stainless steel mounting frame.
Supplied with 11/2" waste and trap.
Without overflow.
Supplied with fixing elements.
CE marked. Complies with European standard EN 14688.

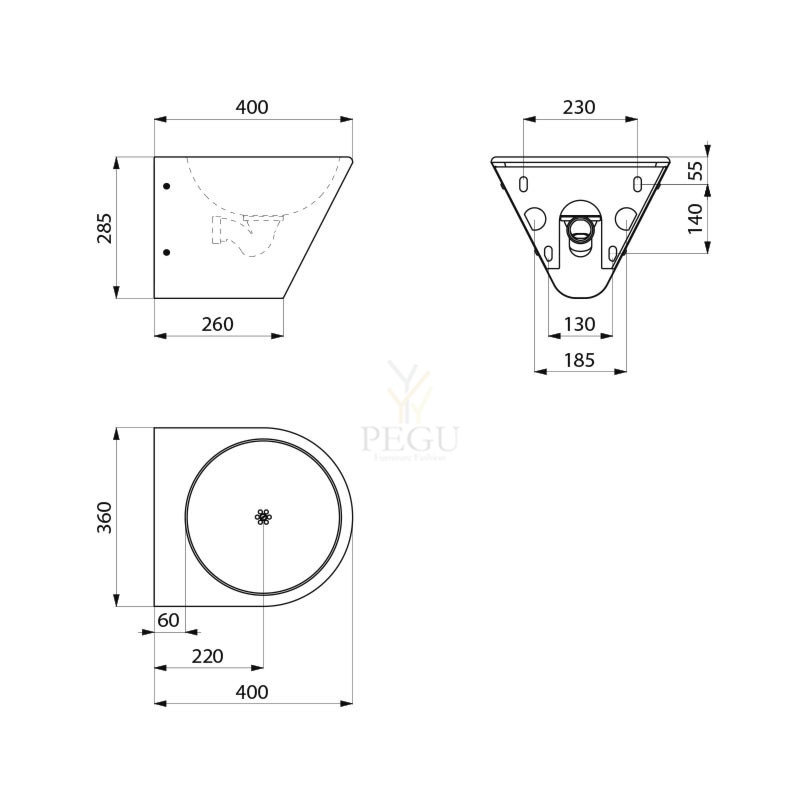

TECHNICAL FEATURES
BOB HD washbasin
Ref. 164130
Height | 285mm |
---|---|
Length | 400mm |
Width | 360mm |
Thickness | 1.2mm |
Finish | Polished satin 304 stainless steel |
Failid
Liivapüüdur SAND-02 Elcee 220, 3,5L, R/V teras, AISI304
Kasutusjuhend:
Liivapüüdur SAND-02 Elcee 220, 3,5L, roostevaba teras, AISI304
Liivapüüdur SAND-02 Elcee 220 on mõeldud liiva filtreerimiseks veest ning selle maht on 3,5 liitrit. Seade on valmistatud roostevabast terasest (AISI304) ja on ideaalne paigaldamiseks otse kraanikausi või valamualuse alla.
Paigaldamine:
Liivapüüdur on lihtne paigaldada otse kraanikausi või valamualuse alla, kasutades selleks sobivaid kinnitusvahendeid.
Kasutamine:
Liiv ja mustus kogunevad seadme alumisse kaussi. Seadme efektiivse töö tagamiseks on vajalik kaussi regulaarselt tühjendada.
Hooldus:
Kauss on kinnitatud korpuse külge kahest küljest kinnitustega. Kaussi puhastamiseks eemaldage see kinnitustest, tühjendage ja vajadusel puhastage.
Üldmõõtmed millimeetrites: Ø174 x 235
Sissevoolu mõõtmed millimeetrites: 1,5"
Väljavoolu mõõtmed millimeetrites: 1,5"
Materjal: AISI 304
Materjali paksus millimeetrites: 1,5
Kogukaal kilogrammides: 2,50
Wash trough acc. Separator SAND-02
Description
The sand catcher has a capacity of 3,5 litres and is ideal for filtering sand from water.
It is easy to mount directly under a washbasin or a wash trough.
The sand catcher is delivered with a flexible outlet that will enable straight or bent installation possibilities.
Material: Stainless steel AISI 304
Overall dimension in mm Ø174 x 235
Inlet dimension in mm 1.5"
Outlet dimension in mm 1.5"
Material AISI 304
Material thickness in mm 1.5
Gross weight in kg 2.50
CANAL wall-mounted wash trough
Ref. 120300
Wall-mounted wash trough for 4 posts - 2,400mm
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1mm for the bowl, 1.5mm for surroundand fixing brackets.
Easy to install: no joint concealers to install, light wash trough.
Drainage on the right.
With no tap hole.
Supplied with 1 ½" waste.
Without overflow.
Supplied with brackets and fixing elements.
CE marked. Complies with European standard EN 14296.
Weight: 20kg.
Possible to add a bacteriostatic 304 stainless steel splashback (ref. 0011800007).
Height | 250mm |
---|---|
Length | 2400mm |
Width | 400mm |
Thickness | 1mm (basin) et 1.5mm (edge and fixing brackets) |
Finish | 304 polished satin stainless steel |
REDO wall-mounted washbasin
Ref. 120710
Wall-mounted washbasin.
Basin internal diameter: 320mm.
Clean and simple design.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm.
Rounded edges prevent injury.
With no tap hole.
Supplied with 1 ¼" waste.
Without overflow.
Supplied with fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 3kg.
Kirurgiline valamu madala pritsmekaitsega "Hygiene+" 1 töökoht AISI304 L700mm
Kirjeldus:
Ref. 185020 kirurgiline valamu on mõeldud spetsiaalselt haiglate ja tervishoiuasutuste vajadustele. Valmistatud bacteriostatic 304 roostevabast terasest ja varustatud innovatiivse "Hygiene+" disainiga, mis vähendab bakterite arenguks sobivaid alasid ja tagab lihtsa puhastamise. Valamul on madal pritsmekaitse (75 mm), parem äravool ja kinnitusdetailid.
Peamised omadused:
- Seinakinnitusega disain
- Madal pritsmekaitse: 75 mm
- "Hygiene+": varjatud äravool, bakterite arengualade vähendamine
- Sile pind ja varjatud sifoon lihtsaks puhastamiseks
- Valmistatud bacteriostatic 304 roostevabast terasest
- Paksus: 1,2 mm
- Ilma segistiaukudeta
- CE-sertifikaat, vastab EN 14296 standardile
- Mõõdud: kõrgus 645 mm, laius 400 mm, pikkus 700 mm
- Kaal: 15,6 kg
Surgical scrub-up trough with low upstand
Ref. 185020
Wall-mounted surgical scrub-up trough with 75mm upstand.
Suitable for hospitals and healthcare facilities.
Bacteriostatic 304 stainless steel. Polished satin finish. Stainless steel thickness: 1.2mm.
Length 700mm, 1 service. Without tap hole.
Smooth surface for easy cleaning.
"Hygiene+": reduces niches where bacteria can develop, concealed trap, easy to clean.
Drainage on the right. Without overflow. Supplied with fixing elements.
Weight: 15.6kg.
Roostevaba teras peegel Wagner Ewar 600x600mm
- Mirror in robust, germ-reducing and easy-care stainless steel mirror sheet metal (AISI 304).
- Mounting: With four Torx® locking screws.
- Delivery includes fixing material.
- Other dimensions available upon request.
- Weight (in kg): 2,9
213,50 €
