Delabie valamu BOB segistiavaga d35mm roostevaba teras satiin

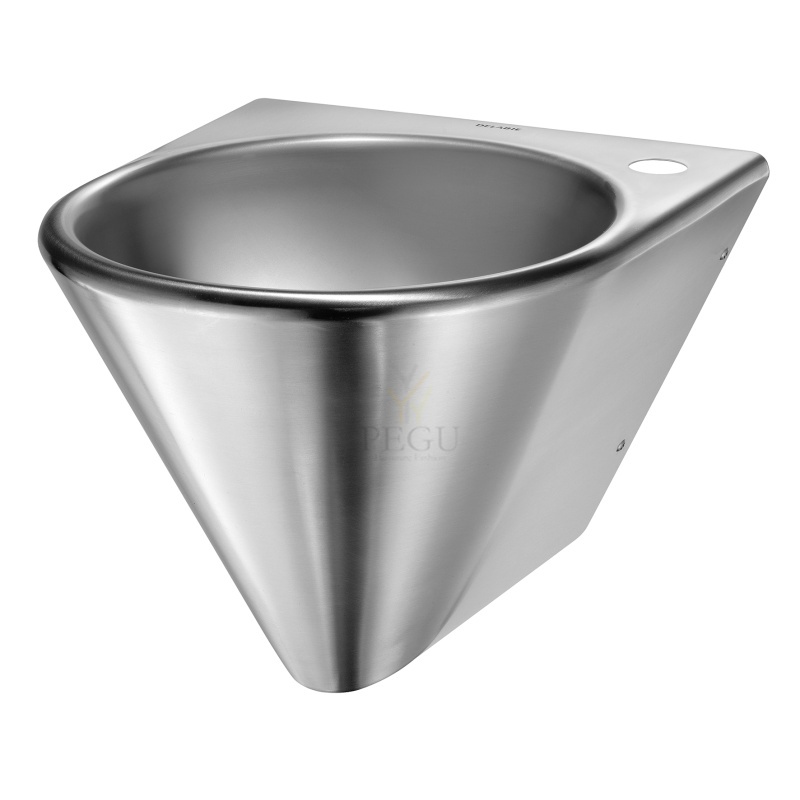

Wall-mounted BOB washbasin
Ref. 121130

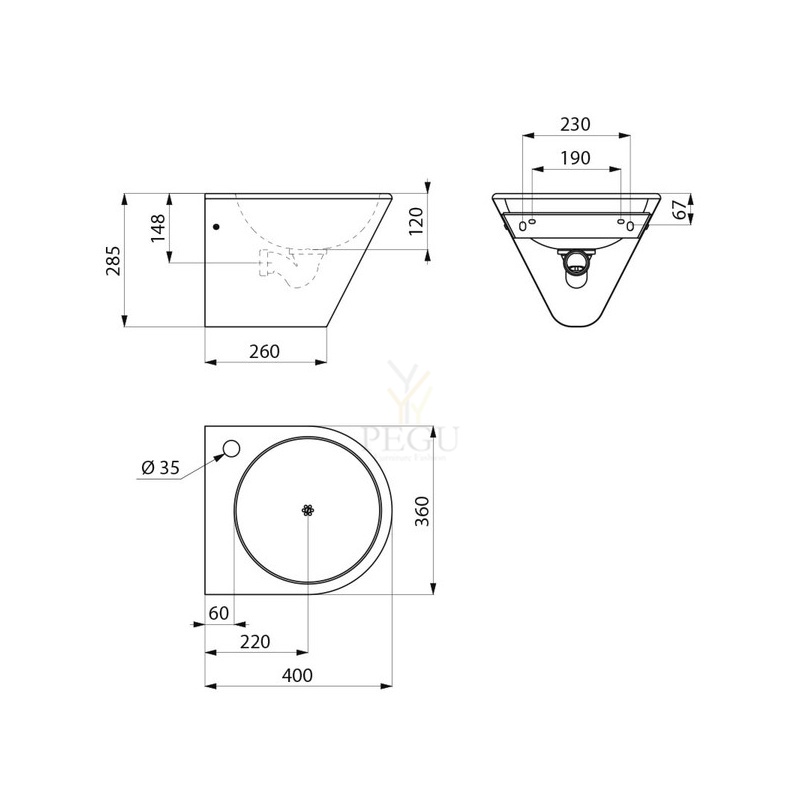

Wall-mounted washbasin.
Basin internal diameter: 310mm.
Clean and simple design.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm.
Rounded edges prevent injury.
Vandal-resistant: shrouded basin, concealed trap.
Quick and easy to install from the front thanksto a stainless steel mounting frame.
Supplied with 1 ¼" waste and trap.
With tap hole Ø 35mm on right side.
Without overflow.
Supplied with fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 5.5kg.
Failid
Kollektiivne pissuaari renn 1800 mm roostavabast terasest
Pesurenn roostevabast terasest 1800mm Intra PV180, konsoolidega
Pesurenn konsoolidega 1800mm
Automatne kummikute pesur düüsiga, 12V, 50Hz
automatic washing system for wellingtons with jets - 12V, 50Hz
AMO 01 is a stainless steel automatic washing system for wellingtons with sensor-controlled water nozzles. When stepping into the washing chamber of the system (scanning zone) water starts to flow from the nozzles automatically and wellingtons are cleaned of dirt. Water stops flowing with a certain time delay after the foot has been removed from the scanning zone.
AMO 01 is designed for a single pipe inlet of pre-mixed water from the circulation or water pre-mixed by means of a thermostatic valve.
The AMO 01 automatic washing system is intended mainly for operations with slight shoe contamination where quick washing at maximum water savings is guaranteed.
Package contents
- body of the washing machine
- photocell head
- nozzles – 8 pcs
- electromagnetic valves 2 pcs
- corner valves with filter
- connecting hoses
Radius of sensor | 0 – 0,4 m |
Water inlet | G 1/2“ |
Water pressure | 0,3 – 1,0 MPa |
Outlet | d = 32 mm |
Inner dimensions of the trough | 250 x 400 x 280 mm |
Electricity protection | IP 55 |
Power supply | 12 V, 50 Hz |
Power requirement | 10 VA |
Source of power supply | ZAC 1/20 (max. 2 x AMO 01) |
ZAC 1/50 (max. 5 x AMO 01) | |
Weight | 18 kg |
- Set up water inlet as per picture
- Set up outlet d = 32 mm
- Set up cable for power supply – 12 V, 50 Hz from source of power supply ZAC
RMO 02
automatic washing system for wellingtons
RMO 02 is a stainless steel sensor-controlled washing system with rotary brushes for wellingtons. A built-in photocell sensor reacts to the user holding the handrail. The electromagnetic valve switches on, opens the water inlet, the brushes start to rotate and the circular jet injection of the disinfecting lotion is carried out. After placing the foot with the wellington on the grid in between the rotary brushes, the sole is cleaned by means of the horizontal brush and the leg portion is cleaned by means of two vertical brushes. The system is automatically switched off when the user releases the handrail. There is a CENTRAL/STOP button on the handrail for emergency switch-off.
The washing system is intended for free standing installation on the floor. Imperfections of the floor are balanced out by four adjustable hobs. The construction of the system allows the outlet to be placed above the floor level.
The RMO 02 washing system, with its easy maintenance, is mainly intended for operations where quick removal of mechanical dirt from wellingtons is required.
The canister with disinfecting solution is not part of the delivery.
Package contents
- body of the washing machine
- removable grid
- electronics with photocell
- three rotary brushes
- jerican holder
- priming hose
- adjustable supporting legs
- central stop button
Radius of sensor | 0,7 m |
Water inlet | G 1/2“ |
Water pressure | 0,1 – 1,0 MPa |
Outlet | G 6/4” |
Electricity protection | IP 55 |
Power supply | 230 V, 50 Hz |
Power requirement | 370 W |
Water temperature | max. 42°C |
Weight | 95 kg |
- Set up water inlet as per picture
- Set up outlet G 6/4” via effluvial cover
- Set up cable for power supply – 230 V, 50 Hz
REDO wall-mounted washbasin
Ref. 121710
Wall-mounted washbasin.
Basin internal diameter: 320mm.
Clean and simple design.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm.
Rounded edges prevent injury.
With central tap hole Ø 35mm.
Supplied with 1 ¼" waste.
Without overflow.
Supplied with fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 3kg.
TECHNICAL FEATURES
REDO wall-mounted washbasin
Ref. 121710
Height | 150mm |
---|---|
Length | 375mm |
Width | 430mm |
Thickness | 1.2mm |
Finish | 304 polished satin stainless steel |
