Delabie valamu DUPLO RP pesurenn 1200x500mm segistiavaga d35mm roostevaba teras satiin
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Kohustuslik märge projekti spetsifikatsioonis: PEGU OÜ

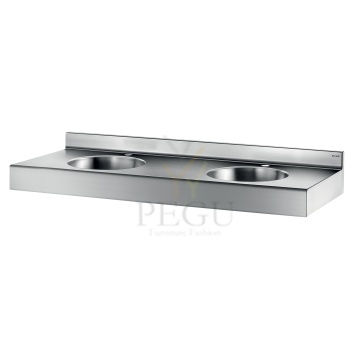

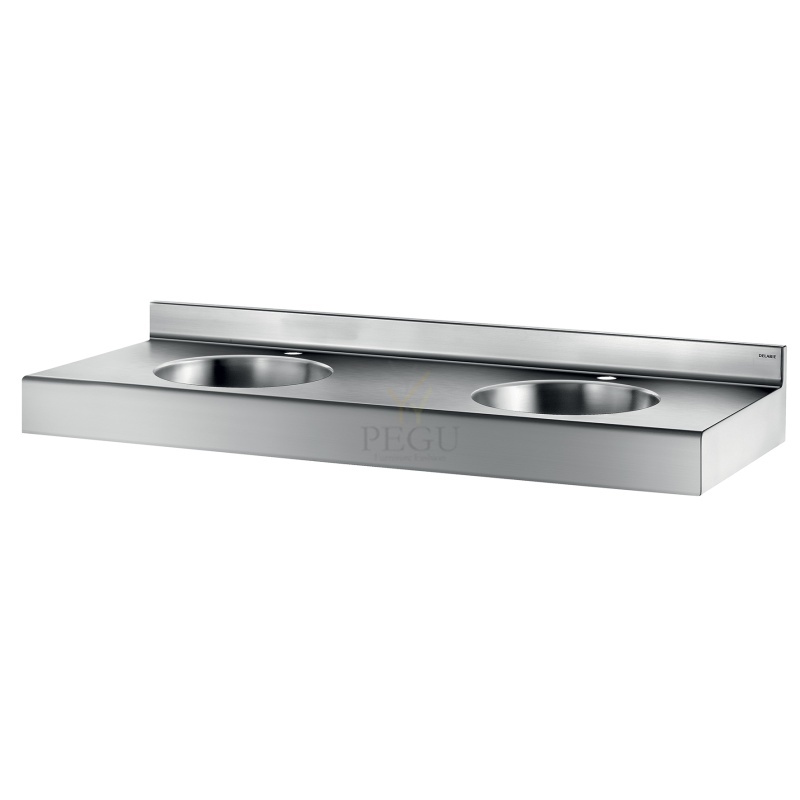

DUPLO RP wall-mounted multiple washbasin
Ref. 121390
Wall-mounted double washbasin, 1,200x500mm.
With a splashbaack to protect the wall from splashing and improve hygiene.
Basin internal diameter: 310mm.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.5mm.
Rounded edges prevent injury.
With central tap hole, Ø 35mm.
Supplied with 1 ¼" waste.
Without overflow.
Supplied with brackets and fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 15kg.
Failid
RMO 02
automatic washing system for wellingtons
RMO 02 is a stainless steel sensor-controlled washing system with rotary brushes for wellingtons. A built-in photocell sensor reacts to the user holding the handrail. The electromagnetic valve switches on, opens the water inlet, the brushes start to rotate and the circular jet injection of the disinfecting lotion is carried out. After placing the foot with the wellington on the grid in between the rotary brushes, the sole is cleaned by means of the horizontal brush and the leg portion is cleaned by means of two vertical brushes. The system is automatically switched off when the user releases the handrail. There is a CENTRAL/STOP button on the handrail for emergency switch-off.
The washing system is intended for free standing installation on the floor. Imperfections of the floor are balanced out by four adjustable hobs. The construction of the system allows the outlet to be placed above the floor level.
The RMO 02 washing system, with its easy maintenance, is mainly intended for operations where quick removal of mechanical dirt from wellingtons is required.
The canister with disinfecting solution is not part of the delivery.
Package contents
- body of the washing machine
- removable grid
- electronics with photocell
- three rotary brushes
- jerican holder
- priming hose
- adjustable supporting legs
- central stop button
Radius of sensor | 0,7 m |
Water inlet | G 1/2“ |
Water pressure | 0,1 – 1,0 MPa |
Outlet | G 6/4” |
Electricity protection | IP 55 |
Power supply | 230 V, 50 Hz |
Power requirement | 370 W |
Water temperature | max. 42°C |
Weight | 95 kg |
- Set up water inlet as per picture
- Set up outlet G 6/4” via effluvial cover
- Set up cable for power supply – 230 V, 50 Hz
Loputussüsteem pissuaarile aegreleega 230V/AC antivandaalne
SLP 01Z
Time-controlled flushing unit, 230 V AC
Characteristics
- vandal-proof
- time-controlled flushing unit for urinal troughs SLPN 02(Z) - 05(Z)
- adjustable flushing time 0,5 - 15,5 s, standard 5 s
- parameters adjustment by remote control SLD 04
- adjustable flushing interval 10 min - 3 days, standard 1 h
- after switch on the power supply 230 V AC, SLP 01Z starts to flush in adjusted interval
Order number | 01011 |
Code | SLP 01Z |
Supply specification
Technical information
Mounting box dimension: 145 x 155 x 100 mm
Operating voltage: 230 V AC/50 Hz
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 40 l/min (inf. data)
Water inlet: male thread G 1“
Water outlet: male thread G 1“
531,00 €
AFO 01.Yst. steel sensor controlled drinking fountain
AFO 01.Y is st. stainless wall hung drinking fountain controlled by sensor. Water runs after disrupting the scanning zone.
Fountain is made by welding all components together.
Fountain is suppplied with safety power 12 V, 50 Hz from power supply ZAC (AFO 01.Y) or with 4x AA battery (AFO 01.YB).
Material is standardly st. steel AISI 304 or can be AISI 316 (AFO 01.Y.CL or AFO 01.YB.CL).
St. steel driking fountain AFO 01.Y is based on favourite model AFO 01 with manual control.
The sensor, located on the right side of the fountain, is reacting on the approach of the user. Water starts to run from the nozzle, located in the middle of the fountain bowl, and runs over the time when the user´s head is in the scanning zone (max. 30 sec.) + preset time (max. 4 sec.) to clean the nozzle.
Package contents
- st. steel drinking fountain
- nozzle
- sensor and electronic
- electromagnetic valve
- connecting flexible hose
- corner valve with filters
- siphon
- mounting material
water inlet | G 1/2" |
water pressure | 1 - 10 Bar (AFO 01.Y; AFO 01.Y.CL) |
2 - 8 Bar (AFO 01.YB; AFO 01.YB.CL) | |
outlet | d = 40 mm |
bowl inner dimension | d = 245 mm |
weigth | 4 kg |
suppply | 12 V, 50 Hz (AFO 01.Y; AFO 01.Y.CL) |
6 V - 4 x AA battery (AFO 01.YB; AFO 01.YB.CL) | |
power supply | ZAC 1/20 (max. 3 x AFO 01.Y ; AFO 01.Y.CL) |
Joogifontään AFO04 seinale mehaaniline R/V teras AISI316(basseinile)
AFO 04
suspension drinking fountain
AFO 04 is a stainless-steel drinking fountain of a modern design. It is manufactured with a double surface finish: matt bowl (blasted with ballotini) and brushed casing. Thanks to its interesting appearance, it particularly suits public spaces, such as sports facilities, parks, squares, business centres, fitness and wellness centres, but also schools and kindergartens.
Similarly to AFO 01, the drinking fountain is operated with a push valve. Water is flowing while the valve is pushed and for a preset time after its release, in which way the nozzle is rinsed.
The water inlet is through a flexible hose; siphon trap is made of a flexible coupling. The flexible design of the water inlet and outlet enables variable and trouble-free connection of the fountain as well as its simple dismounting.
The AFO 04 drinking fountain is made from stainless steel of the AISI 304 class; the AFO 04.CL drinking fountain is made from steel of the AISI 316 class.
Package contents
- stainless steel casing
- press valve
- corner valve with filter
- fixing bar
- siphon
- connecting hose
- anchoring material
Water inlet | G 1/2" |
Water pressure | 2 - 6 Bar (recommended 3 Bar) |
Outlet | d = 40 mm |
Inner dimension of the fountain | d = 245 mm |
Weight | 4 kg |
- Set-up water inlet - pipe G1/2“.
- Set-up drainage d = 40 mm.
R/V teras WC pott ja valamu
AISI304 paksus 1,5 mm
Kinnitus poltidega läbi seina
Loputus ühendus 1"
WC äravool 100mm
Valamu ärravool 32mm
NB! Vee mehhanismid on vaja tellida eraldi
2562,00 €
