Water inlet | G 1/2" |
Water pressure | 2 – 6 Bar, recommended 3 Bar |
Outlet | d = 40 mm |
Inner dimensions of sink | d = 290 mm |
Weight | 20 kg |
Delabie valamu HEMI D385mm roostevaba teras poleeritud
Kaubamärk:
![Delabie-PEGU](https://www.pegu.ee/media/gavial/.image/brand-thumb/general/SEnda/DELABIE_C100M35.jpg)
Ühik: tk
Tarneaeg: 14-21 päeva
Kohustuslik märge projekti spetsifikatsioonis: PEGU OÜ
DESCRIPTION

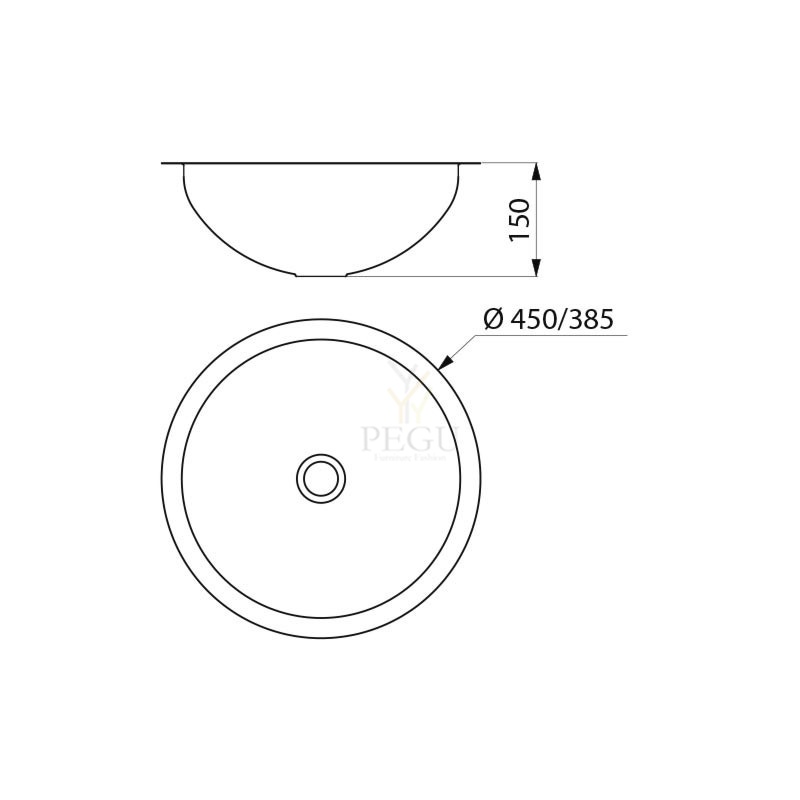

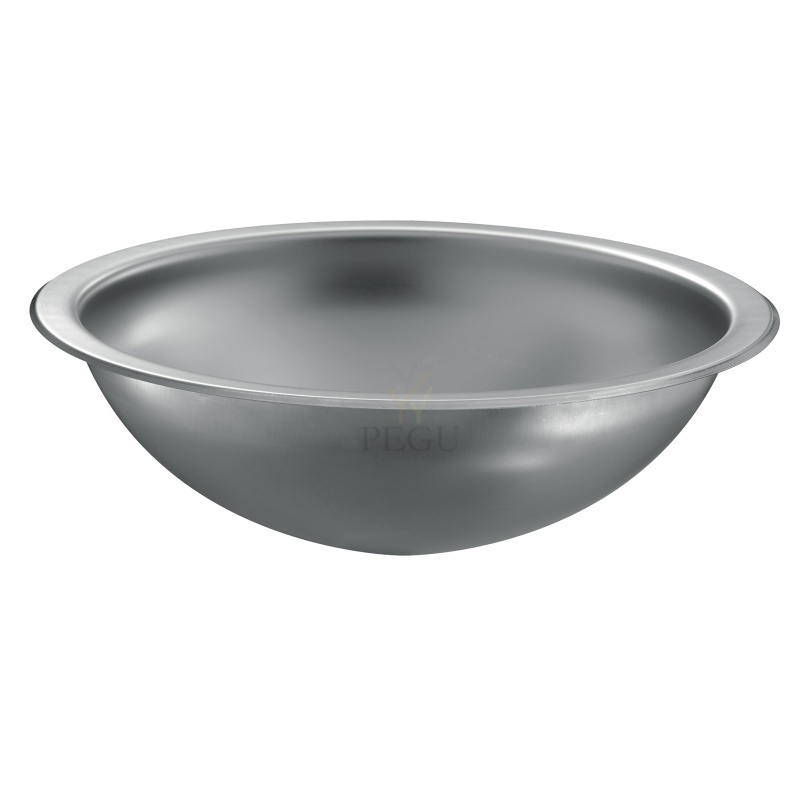

HEMI inset round washbasin Ø 385mm - Ref. 120491
Round washbasin for recessed installation from above or below.
Basin internal diameter: 385mm.
Cut-out diameter: 400mm for installation from above, 380mm for installation from below.
Bacteriostatic 304 stainless steel.
Bright polished finish.
Stainless steel thickness: 0.8mm.
One-piece, seam-free pressed bowl.
Rounded edges prevent injury.
Supplied with 1 1⁄4" waste.
Without overflow.
CE marked. Complies with European standard EN 14688.
Weight: 1.6kg.
Failid
FRAJU PMR washbasin
Ref. 120440
Wall-mounted washbasin, 620x505mm.
Suitable model for people with reduced mobility.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm for the bowl and 1.5mm for surround.
Rounded edges prevent injury.
Without tap hole.
Supplied with 1¼" waste.
Without overflow.
Supplied with fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 5kg.
2-ne Valamu jalaga 1200x700, kõrgus 850mm , R/V teras
Нержавеющая большегрузная двойная мойка на ножках, 1200 x 700 x 850 мм
Характеристики
- stainless steel bulk double-sink with a sheating
- without a tap hole (could be made to order)
- possibility of fine plane regulation by the regulation screws on the supporting legs
- possibility to order inner sinks in dimensions: 400 x 300 x 200 mm/ 400 x 400 x 250 mm/ 400 x 400 x 200 mm
- available also in the length 1400 mm
- material CrNi 18/10 (AISI-304)
- brushed finish
- different dimensions could be made to order
Арт. № | 93160 |
Название | SLUN 16 |
AFO 01.Yst. steel sensor controlled drinking fountain
AFO 01.Y is st. stainless wall hung drinking fountain controlled by sensor. Water runs after disrupting the scanning zone.
Fountain is made by welding all components together.
Fountain is suppplied with safety power 12 V, 50 Hz from power supply ZAC (AFO 01.Y) or with 4x AA battery (AFO 01.YB).
Material is standardly st. steel AISI 304 or can be AISI 316 (AFO 01.Y.CL or AFO 01.YB.CL).
St. steel driking fountain AFO 01.Y is based on favourite model AFO 01 with manual control.
The sensor, located on the right side of the fountain, is reacting on the approach of the user. Water starts to run from the nozzle, located in the middle of the fountain bowl, and runs over the time when the user´s head is in the scanning zone (max. 30 sec.) + preset time (max. 4 sec.) to clean the nozzle.
Package contents
- st. steel drinking fountain
- nozzle
- sensor and electronic
- electromagnetic valve
- connecting flexible hose
- corner valve with filters
- siphon
- mounting material
water inlet | G 1/2" |
water pressure | 1 - 10 Bar (AFO 01.Y; AFO 01.Y.CL) |
2 - 8 Bar (AFO 01.YB; AFO 01.YB.CL) | |
outlet | d = 40 mm |
bowl inner dimension | d = 245 mm |
weigth | 4 kg |
suppply | 12 V, 50 Hz (AFO 01.Y; AFO 01.Y.CL) |
6 V - 4 x AA battery (AFO 01.YB; AFO 01.YB.CL) | |
power supply | ZAC 1/20 (max. 3 x AFO 01.Y ; AFO 01.Y.CL) |
Joogifontään free-standing mehaaniline R/V teras AISI304
AFO 02 - IIstainless steel free-standing drinking fountain (indoor/outdoor)
AFO 02-II is a stainless steel drinking fountain of modern design with a manual press valve that allows its easy use. The water flows only when the valve is pressed and then there is a certain adjusted time to rinse out the nozzle.
The drinking fountain is to be placed in an open space. It is made up of an anchoring part intended for embedding in concrete and the column itself with a press valve and nozzle. These parts are connected by means of 3 screws and the upper part can be, therefore, easily dismounted in case of necessity (e.g. during winter).
The water inlet is fitted with a flexible hose, the siphon is made from a stretchy, flexible connector. The flexible finish of the water inlet and outlet allows the variable and problem-free connection of the fountain.
AFO 02-II stainless steel fountain is suitable mainly for schools, medical facilities and spa resorts, and is utilizable outdoors.
Drinking fountain AFO 02-II is manufactured from the stainless steel AISI 304. AFO 02.CL-II is made of the stainless steel AISI 316 and is suitable for places with higher concentration of chlorine.
For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).Detail of the bowl
Package contents
- stainless steel column and cone with nozzle
- press valve
- anchoring construction
- flexible hose siphon
- connecting hoses
- anchoring material
- Set-up water inlet - pipe G 1/2“
- Set-up drainage d = 40 mm
- Prepared alcove for embedding (concreting) in the base construction
Joogifontään põranda/sein mehaaniline R/V teras AISI304
AFO 01.S
stainless steel drinking fountain with pressure valve designed to stand and to be attached to wall
AFO 01.S is a drinking fountain of stainless steel with pressure valve designed to stand and to be attached to wall. Water runs for the time for which the valve is pressed plus the pre-set period after it is released; thus the jet can be rinsed.
Water supply is provided by a flexible hose, trap comprises an elastic flexible couple. Flexible design of water supply and outflow allows variable and easy connection of the drinking fountain as well as its dismounting.
Automatic drinking fountain (with a sensor) can be supplied per order.
AFO 01.S is manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order. For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).
Package contents
- Stainless housing with cone
- Pressure valve with jet
- Flexible hose outflow
- Fixing and connecting material
dimensions | 330 x 900 x 365 mm |
outlet | d = 40 mm |
water inlet | G 1/2" |
water pressure | 0,2 – 0,6 MPa, recommended 0,3 MPa |
weight | 12 kg |
- Set up water outlet d = 40 mm
- Set up water inlet G 1/2"
