Dušiiste põrandale CARE Normbau Ascento 548x437x623 mm, tumehall
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Müüja: PEGU OÜ
Olete teinud oma valiku – nüüd jääb vaid nautida ostu!
Tellimuse vormistamine on kiire ja lihtne:
✔ Lisage soovitud tooted ostukorvi.
✔ Täitke andmed – kas eraisikuna või juriidilise isikuna.
✔ Valige sobiv tarneviis.
Pärast ostu kinnitamist saadetakse teile e-kirjaga teavitus ning meie asume tellimust täitma!
PEGU OÜ – neile, kes hindavad stiili, kvaliteeti ja laitmatut teenindust.

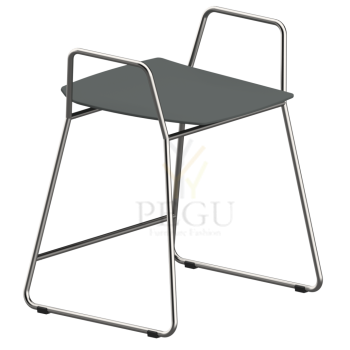

Dušiiste põrandale CARE Normbau Ascento 548x437x623 mm, tumehall
Care Stool, 548 x 437 x 623 mm, Dark grey
- Ascento as Modular Seating Solution, expandible and combinable
- ergonomic formed seat with rounded outer edges upper extended bow arms that serve as as grab rails with non-slip rubber buffers in colour black
- Product : Hocker
- Product group : 8700
- Length : 548 mm
- Width : 437 mm
- Height : 623 mm
- Wide seat surface : 412 mm
- Depth of the seat surface : 419 mm
- Material : Polypropylen, Gestell aus Edelstahl, Werkstoff Nr. 1.4301 (A2, AISI 304)
- Surface : matt
- Colour : lieferbar in Dunkelgrau (018) und Weiß (019)
- Loading : max. 150 kg
seinakinnitus plaat 90x250 mm
Pikkus 700mm
725,90 €
The supporting armrest provides assistance to those with limited strength and mobility.
590,00 €
General description
-
Wall to wall grab bar with three support points, made of diameter 32 mm AISI 304 stainless steel tube, to be installed in the washbasins and toilets.
-
With snap flange covers to conceal the screws, helping to achieve a beautiful and sleek look and protecting the flange surfaces from damage, dust, moisture and foreign particles.
-
Ideal to design barrier-free accessibility, both domestic and commercial places, these grab bars help make the lives easier for the handicapped and elderly people.
-
Highest durability and rusting resistance.
-
Optionally, these bars can be electrically isolated by installing the electrical isolation Kit code KA0020.
-
These grab bars are supplied with a kit to fix the bar to a brick wall.
Components and materials
-
BFD600C: grab bar right hand, made of diameter 32 mm AISI 304 stainless steel tube, bright finish.
-
BFI600C: grab bar left hand, made of diameter 32 mm AISI 304 stainless steel tube, bright finish.
-
BFD600CS: grab bar right hand, made of diameter 32 mm AISI 304 stainless steel tube, satin finish.
-
BFI600CS: grab bar left hand, made of diameter 32 mm AISI 304 stainless steel tube, satin finish.
-
TUBING: made of 32 mm diameter tube, seamless construction. The bending process guarantees the uniformity of the diameter along the bends.
-
CONCEALED MOUNTING FLANGE: three units made of AISI 304 stainless steel, 3 mm thick. Incorporates two Ø 6.5 mm screws holes for wall mounting.
-
SNAP FLANGE COVER: three units made of stainless steel AISI 304, 0.8 mm thick and Ø 82 mm. Each cover snaps over mounting flange to conceal mounting screws.
189,00 €
Stützklappgriff mit Grundplatte vario, E-Taster: WC-Schließer, Anschluß verdeckt mit Montageplatte
Länge 725 mm,
aus Aluminium, kratzfeste Pulverbeschichtung mit antibakteriellem
Schutz, lieferbar in den Cavere Farben, mit trigonometrischer Griffkontur zum ergonomischen Abstützen und Greifen, Platz sparend durch zentrische Lagerkonsole, links und rechts einsetzbar, mit robuster und wartungsfreier Gleitlagertechnik, mit einstellbarer Bremse, einfache Montage oder Demontage durch Einhängen in die Grundplatte, Grundplatte aus Edelstahl mit
ausgleichender Wandauflage, verdeckte Verschraubung,nachrüstbar mit Papierrollenhalter 7449 110, max. zul. Belastung: 100 kg,
Belastbar bis 100 kg.
Allgemeine Beschreibung E-Taster: Ø 32 mm, mit Bildzeichen: Farbe blau für WC-Spülung, Farbe rot für die Option Ruftaste, Farbe schwarz für eine frei belegbare Option (neutral). Spiralkabel 4-adrig 0,25 mm² für Steuerspannung bis 24 V.. Stützklappgriff vario, einhängbar, kann mit max. zwei E-Tastern geliefert werden. E-Taster mit der Funktion »Schließer« werden überwiegend für WC-Spülungen eingesetzt, können aber auch mit einer frei belegbaren Option ausgestattet werden. Die Funktion »Öffner« wird überwiegend bei Rufanlagen verwendet.
Das Befestigungsmaterial ist nach den baulichen Gegebenheiten festzulegen und separat zu bestellen.
Be-Line drop-down support rail, L. 650mm, anthracite
Ref. 511960C
Be-Line drop-down support rail for people with reduced mobility.
In the lowered position use as a grab bar, as a support for standingand for assisting movement, for WCS or showers.
Allows side access in the raised position.
Removable: easy to remove with anti-theft locking system. Reduces the number of barsin a facility, allowing installation only when required.
Example: hotels or hospitals providing short-term accommodation for people with reduced mobility.
Slowed down descent. Retained in upright position.
Aluminium tube.
Rounded profile Ø 42mm with ergonomic flat front face that prevents rotation for an optimal grip.
Metallised anthracite powder-coated aluminium finish provides a good visual contrast with the wall.
Uniform surface for easy maintenance and hygiene.
Concealed fixings secured to wall by a 304 stainless steel plate, 5mm thick.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Dimensions: 650 x 210 x 120mm.
Tested to over 200kg. Maximum recommended user weight: 135kg.
TECHNICAL FEATURES
Be-Line drop-down support rail, L. 650mm, anthracite
Ref. 511960C
| Height | 210mm |
|---|---|
| Length | 650mm |
| Width | 120mm |
| Finish | Powder-coated metallised anthracite aluminium |
499,00 €
