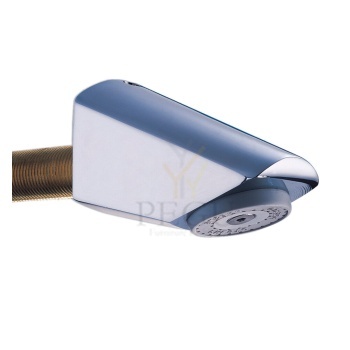

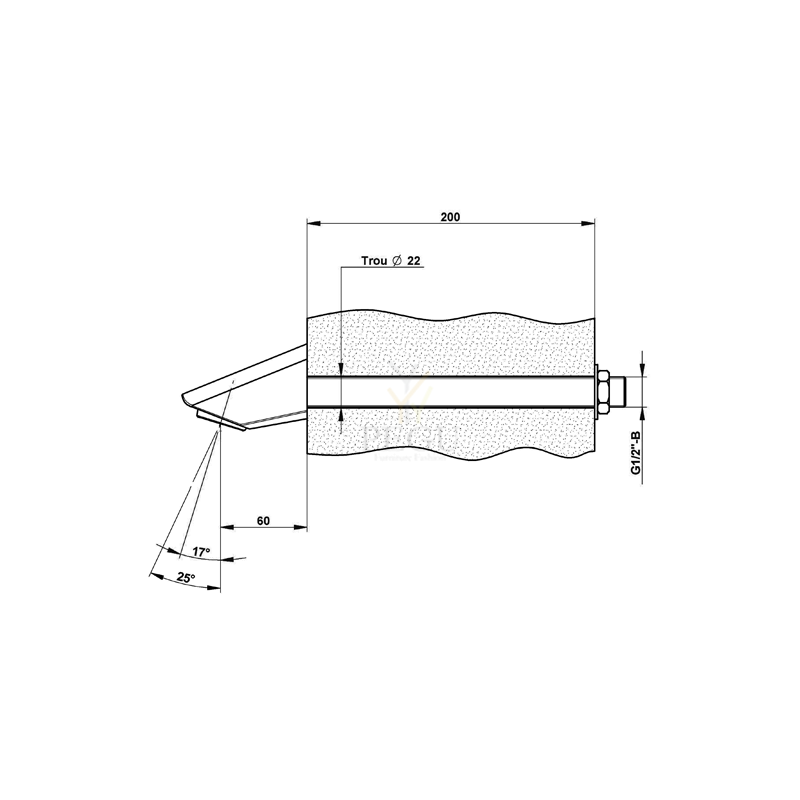

Dušiotsik Presto läbi seina 29120, antivandaalne, sein 1,5-200mm 1/2"

Sisu

ALPA

Presto

must

30 sek. töötsükkel 3 bar

> Working pressure : 1 to 5 bar

> Flow : 6 l/min with integrated flow limiter Anti-water-hammering device Hand-held shower on rail with chrome plated slide

> Flow time : 30 seconds (± 5 sec.)

> Hydraulic supply : G 1/2"(15x21), top or rear water inlet. For rear water inlet, we recommend to add the adaptation kit under the reference 91026. On P 50 tap NF II and thermostatic mixer tap EN 1111 (NF check valves)

> Material : Anodised aluminum profile (2.5mm thickness) Aluminum removable valve plate, peinted RAL 7005 High resistance RAL 7005 coloured ABS casings

> Functioning: Wide opening panel without the need to dismantle from the wall and shower taps on a removable valve plate

> Thermal resistance : Resistant to a temperature of 75°C for 30-minute-thermal-shocks

> Security : Anti-scald system: flow is immediately stopped if the cold water is cut off Maximum delivered temperature : pre-fixed at 38°

> Delivered with : 1/2" hoses with revolving nuts MM 1/2" (15x21) straight stop valve and 250 micron filters Fastening screw and instruction manual > Standards & approvals : Brass body in accordance with EN 1982, EN 12164, EN 12165 Chrome-plated surface treatment in accordance with EN 12540 200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227

R/V teras WC pott ja valamu

AISI304 paksus 1,5 mm

Kinnitus poltidega läbi seina

Loputus ühendus 1"

WC äravool 100mm

Valamu ärravool 32mm

NB! Vee mehhanismid on vaja tellida eraldi
