Dušipaneel Delabie SECURITHERM termostaadiga electronic 6V RST

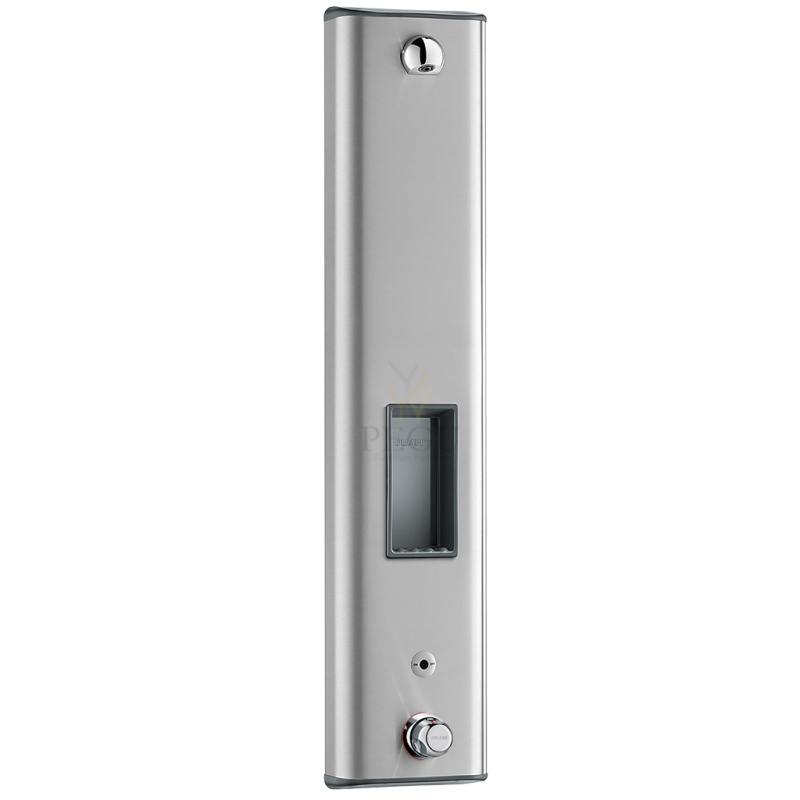

SECURITHERM shower panel
Ref. 792404
Electronic thermostatic shower panel:
Large model stainless steel panel for surface mounting.
Top inlet via in-line stopcocks, M1/2".
SECURITHERM thermostatic mixer.
Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding safety: automatic shut-off if cold or hot water supply fails.
Thermal shocks are possible.
Battery-operated with 223 6V Lithium battery.
Infrared presence detection. Shower starts when hand is 4cm from the sensor.
Shuts off on demand or automatically after ~60 seconds.
Duty flush (~60 seconds every 24 hours after the last use).
Flow rate set at 6 lpm at 3 bar.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation.
With integrated soap dish.
Concealed fixings.
Filters and non-return valves.

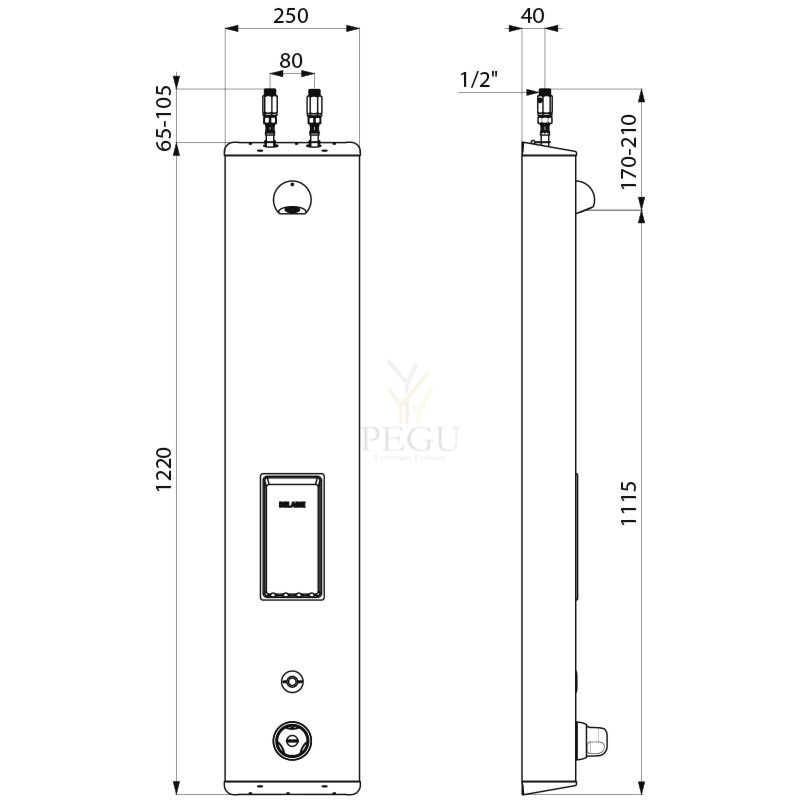

TECHNICAL FEATURES
SECURITHERM shower panel
Ref. 792404
Supply | 6V battery |
---|---|
Connector | M1/2" |
Technology | Electronic |
Height | 1220mm |
Depth | 100mm |
Width | 250mm |
Flow rate | 6 lpm |
Temperature limiter | Thermostatic |
Finish | Stainless steel |
Sisu
ALPA
Presto
must
30 sek. töötsükkel 3 bar
Kontaktivaba veekraan+seebi+desinfektandi dosaator MWSD bent
Multifunctional touchless faucet, water and soap in one unit, countertop integration.
Simple Touchless operation, the untouchable™ makes use of an elegant infrared interface, operated through a simple process: select above, receive under. By swiping above the untouchable™ - in any direction - the dispenser cycles through the available liquids. When a desired liquid is selected, the hand is simply placed under the faucet. Compatible with 1,000 ml standard Euro bottles, suitable for low-viscosity soaps and lotions, refillable using bottles with wide neck, dosage (depending on viscosity): soap approx. 2 ml, value can be changed on request before delivery
Stainless steel, ground | ||
Water | ||
Refillable | ||
1000 ml | ||
Liquid soaps | ||
Touchless |
> Working pressure :
1 to 5 bar
> Flow :
6 l/min with integrated flow limiter Anti-water-hammering design
Hand-held shower on rail with chrome plated slide
> Flow time :
30 seconds (± 5 sec.)
> Hydraulic supply :
G 1/2" (15x21), top or rear water inlet. For rear water inlet, we recommend to add the adaptation kit under the reference 91026. On ALPA S® NF IB mixer tap with NF check valves
> Material :
Anodised aluminium extruded section (2.5mm thickness) Aluminium removable valve plate, peinted RAL 7005 colour High resistance RAL 7005 coloured ABS covers
> Functioning:
Wide opening panel without the need to dismantle from the wall and shower taps on a removable valve plate
> Thermal resistance :
Resistant to a temperature of 75°C for 30-minute-thermal-shocks
> Security :
Adjustable tamper-proof temperature limiter to prevent scalding
Patented anti-blocking "S" system preventing the water flows continuously
> Delivered with :
1/2" hoses with revolving nuts
MM 1/2" (15x21) straight stop valve and 250 micron filters Fastening screw and instruction manual
> Standards & approvals :
Brass body in accordance with EN 1982, EN 12164, EN 12165 Chrome-plated surface treatment in accordance with EN 12540 200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227
CURVE series electronic basin mixer with infrared sensor and fixed high spout. Battery operated
High tap (fixed) with spout H=250 mm, projection 200 mm
Mechanical mixing with side lever
Infrared sensor with activation on presence detection
Vandal proof stop after 1 min of continuous flow
Automatic anti-legionella water flow every 24h after last use
Long-life 6V lithium battery (220,000 cycles)
Sealed battery box for installation under basin
PREMIX SECURITY
Ref. 731053
Group thermostatic mixing valve for hot water circulating loops adjustable from 44°C to 58°C:
Anti-scalding safety.
Regulates temperature variations.
Non-return valves and filters accessible from the exterior without having to remove the mechanism.
Thermal cartridge with no specific lever needed (push-button on the control knob).
Interchangeable cartridge with thermostatic cell.
High-resistance chrome-plated brass body.
Maximum hot water temperature: 85°C.
Differential hot water / mixed water: 15°C mini.
Pressure differences at the entrance: 1 bar maximum (0.5 bar recommended).
Minimum pressure / maximum: 1 to 10 bar (1 to 5 bar recommended).
Left hand side hot water inlet (red ring) and right hand side cold water inlet (blue ring).
Mixed water outlet at the top (purple ring) for bottom outlet: unscrew / place lid at the top and outlet connector at the bottom.
15% energy savings: optimised heat loss (comparison between a circulating loop at 55°C and a non-circulating system at 70°C).
Safety and prolongation of system life span (Hot water at >65°C leads to premature aging within the system).
Maximum temperature limiter, can be adjusted by the installer.
Reduced risk of scalding by limiting temperature at the point-of-use.
90 lpm - M1".
