Eemaldatav ülesklapitav iste 450X563X340mm Nylon Care 400 Must
Eemaldatav ülesklapitav iste 450X563X340mm Nylon Care 400 Must

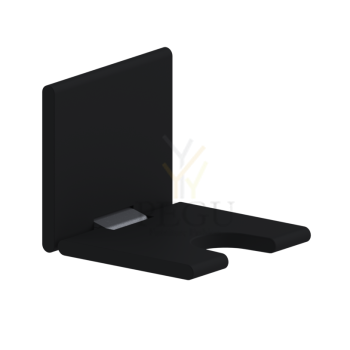

Nylon Care 400 Hanging seat FR,
with hygiene recess, 450 x 563 x 406 mm, Cavere Metallic anthracite, padded, colour black
- Nylon Care - a well-tried and proven product family with a wide range of variants, three product series suiting many different requirements
- for hanging in Cavere Care Shower handrails
- for hanging in Inox Care and Nylon Care Shower handrails
- with adjustable brake
- locked in place in vertical position
- Pad with non-corrosive metal core throughout,
- with adjustable brake
- with non-corrosive steel core throughout
- locked in place in vertical position
- steel reinforced hinges
- for top edge of shower handrail 770-800mm
- for top edge of shower handrail 850mm the seat height corresponds 460 mm (DIN18040 und ÖNORM B1600)
- retrofittable with armrest 7843100
- Product category : Hanging seat
- Product version : with hygiene recess
- Product group : 2000

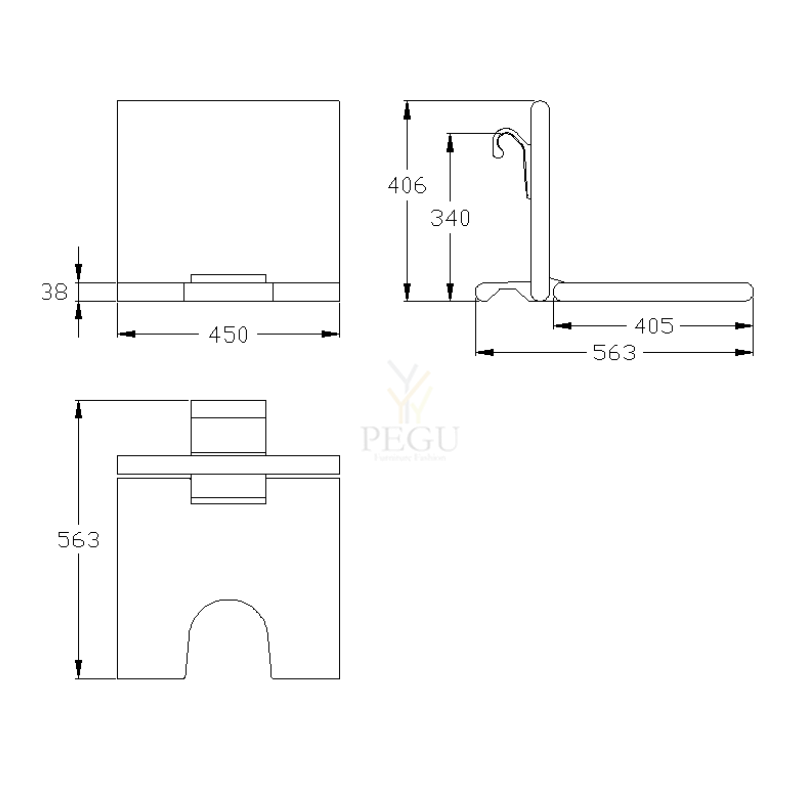

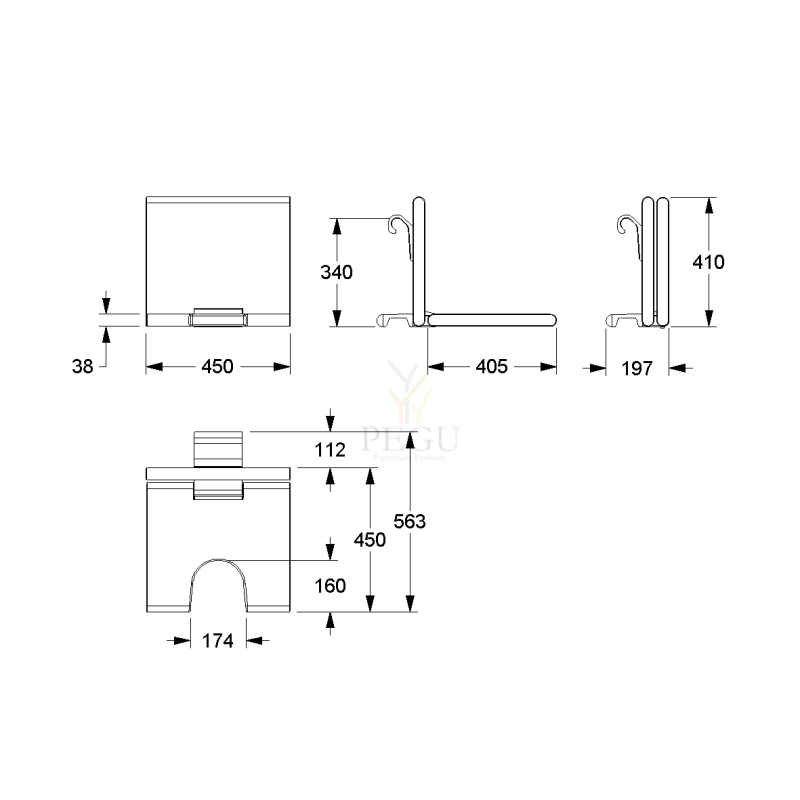

- Length : 450 mm
- Width : 563 mm
- Height : 406 mm
- Wide seat surface : 450 mm
- Depth of the seat surface : 405 mm
- Additional colour : padded, colour black
- Material : aluminium
- Material addition : padded made of PUR integral foam
- Surface : scratch-resistant powder coating with antibacterial protection
- Colour : Cavere Metallic anthracite
- Colours available : available in White (019), Cavere Metallic anthracite (095) and Cavere Metallic silver (096)
- Loading : max. 150 kg
Inva tugitoru dushiliftiga 750x750x1200mm harjatud RST parem
Inox Care Shower handrail,
with shower head rail central, right, 750 x 750 x 1200 mm, Stainless steel, shower head holder, colour dark grey (018)
- Inox Care as a robust and timeless classic with bacteriostatic properties
- Shower head holder with easy adjustment to any height and angle, self-adjusting clamp maintenance-free
- with long operating handle and multi-purpose side hook
- with Rose Gasket for sealing of the drilling points according to German standard DIN 18534-1
- with stainless steel roses Ø 70mm for concealed screw fixing
- In case of lightweight partition walls a backfill made of min. 20mm hardwood is needed
- produced in accordance with Regulation (EU) 2017/745 on medical devices
- CE-certified
- meets the requirements of German standard DIN 18040 and Austrian standard ÖNORM B 1600
- supplied with stainless steel Torx screw sØ 6 x 70 mm and plugs
- Product category : Shower handrail
- Product version : with shower head rail central
- Product group : 5500
- Axle dimension a1 : 750 mm
- Axle dimension a2 : 750 mm
- Axle dimension a3 : 1200 mm
- Diameter : 32 mm
- Fixing points : 4 St.
- Fixing type : rosettes mounting
- Additional colour : shower head holder, colour dark grey (018)
- Material : stainless steel, material No. 1.4301 (A2, AISI 304)
- Material addition : Shower head holder made of polyamide
- Surface : brushed finish
- Version : right
- Colour : Stainless steel
- Loading : max. 175 kg
Inva tugitoru dushiliftiga 750x750x1200mm harjatud RST vasak
Inox Care Shower handrail,
with shower head rail central, left, 750 x 750 x 1200 mm, Stainless steel, shower head holder, colour dark grey (018)
- Inox Care as a robust and timeless classic with bacteriostatic properties
- Shower head holder with easy adjustment to any height and angle, self-adjusting clamp maintenance-free
- with long operating handle and multi-purpose side hook
- with Rose Gasket for sealing of the drilling points according to German standard DIN 18534-1
- with stainless steel roses Ø 70mm for concealed screw fixing
- In case of lightweight partition walls a backfill made of min. 20mm hardwood is needed
- produced in accordance with Regulation (EU) 2017/745 on medical devices
- CE-certified
- meets the requirements of German standard DIN 18040 and Austrian standard ÖNORM B 1600
- supplied with stainless steel Torx screw sØ 6 x 70 mm and plugs
- Product category : Shower handrail
- Product version : with shower head rail central
- Product group : 5500
- Axle dimension a1 : 750 mm
- Axle dimension a2 : 750 mm
- Axle dimension a3 : 1200 mm
- Diameter : 32 mm
- Fixing points : 4 St.
- Fixing type : rosettes mounting
- Additional colour : shower head holder, colour dark grey (018)
- Material : stainless steel, material No. 1.4301 (A2, AISI 304)
- Material addition : Shower head holder made of polyamide
- Surface : brushed finish
- Version : left
- Colour : Stainless steel
- Loading : max. 175 kg
Normbau Inox Care inva käepide duši hoidikuga 2062240, 1100 x 1100 x 1200mm, vasak
Inox Care Shower handrail with showerhead holder 2062240, 1100 x 1100 x 1200mm, left hand
made of stainless steel, material No. 1.4301 (A2, AISI 304), brushed finish, self-adjusting shower head NY.BRH 91. 32, made of Nylon, shower head available in NORMBAU colour dark grey 018, easy adjustment to any height and angle, shower head holder suitable for various hand shower heads, with multi-purpose side hook, with stainless steel roses 70mm dia. for concealed screw fixing, rose inners with compensation of wall differences, maximum loading permitted: 175 kgs.
Supplied with 6mm dia x 70mm stainless Torx screws and plugs for solid masonry.
Suitable for NORMBAU suspendable shower seats 0847 710, 0847 714, 0847 910, 0847 914.
Normbau Inox Care inva käepide duši hoidikuga 2062340, 1100 x 1100 x 1200mm, parem
Inox Care Shower handrail with showerhead holder 2062240, 1100 x 1100 x 1200mm, right hand
1100 x 1100 x 1200 mm, 32 mm dia, right
made of stainless steel, material No. 1.4301 (A2, AISI 304), brushed finish, self-adjusting shower head NY.BRH 91. 32, made of Nylon, shower head available in NORMBAU colour dark grey 018, easy adjustment to any height and angle, shower head holder suitable for various hand shower heads, with multi-purpose side hook, with stainless steel roses 70mm dia. for concealed screw fixing, rose inners with compensation of wall differences, maximum loading permitted: 175 kgs.
Supplied with 6mm dia x 70mm stainless Torx screws and plugs for solid masonry.
Suitable for NORMBAU suspendable shower seats 0847 710, 0847 714, 0847 910, 0847 914.
