400 x 298 x 120 mm
ca. 500 paper towels / sensor with 500 ml soap bottle

• Combination consisting of a sensor liquid soap dispenser and a paper towel dispenser in robust, germ-reducing and easy-care stainless steel (AISI 304).
• All-stainless steel housing; all corners fully welded, visible surfaces satin finished and brushed.
  Further available surfaces: see below.
• Sensor liquid soap dispenser with EWAR® eModule touch-free operated soap pump.
• Designed for standard 500 ml disposable bottles of liquid soap or hand lotion.
• Paper towel dispenser with deep-drawn paper removal opening for easy paper removal.
• Designed for approx. 500 standard paper towels in zigzag fold. Paper size (folded): 240-250 mm x 100-115 mm.
• Inspection slots to indicate fill level.
• Accessible for refilling through lockable front flap with fall protection.
• Keyed alike cylinder lock in corrosion-resistant zinc die-casting.
• eModule battery-powered with two 1.5 V Baby/LR14 batteries.
  Power supply available as an option.
• Wear parts can be replaced as modules.
• Mounting: With four screws through key holes and one optional anti-theft hole in the back wall.
• Delivery includes fixing material, batteries, first fill with soap and one pack of paper towels.

• Weight (in kg): 4,8

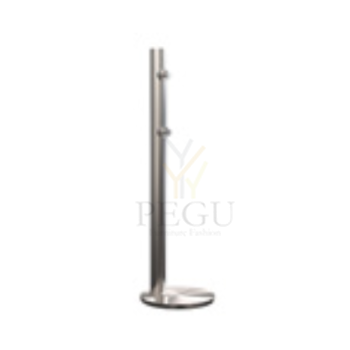

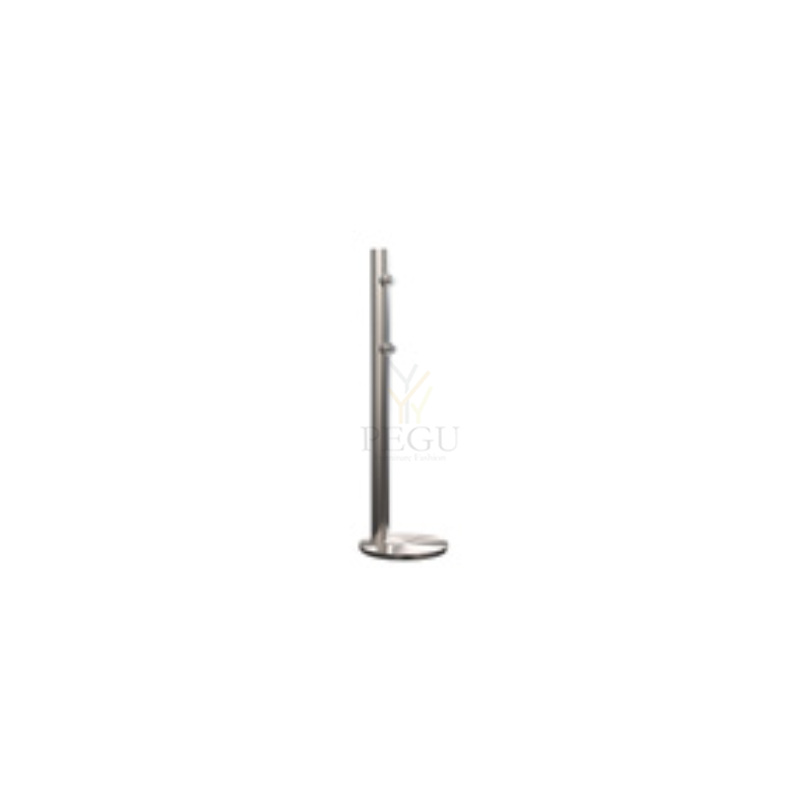

Käterätikuivati on valmistatud messingist. (brass)

Полотенцесушители выполнены из латуни

Sobib nii küttevee kui ka tarbevee süsteemi.

Подходят как для отопительной системы, так и для ГВС

Maksimaalne töörõhk on 600 KPa

Максимальное рабочее давление 600 KPa

Maksimaalne temperatuur 85°C

максимальная температура 85°C

Võimalikud viimistlused Chroom +...%

Возможные покрытия Chroom +...%

86 x 257 x 120 mm
700 ml tank

• Sensor disinfectant dispenser in robust, germ-reducing and easy-care stainless steel (AISI 316L).
• All-stainless steel housing with rounded vertical corners, visible surfaces satin finished and brushed.
  Further available surfaces: see below.
• With EWAR® eModule touch-free operated disinfectant pump with 700 ml tank.
• Designed for standard disinfectants for hands.
• Inspection slot to indicate fill level.
• Accessible for refilling through lockable, hinged housing.
• Keyed alike cylinder lock in corrosion-resistant zinc die-casting.
• eModule battery-powered with two 1.5 V Baby/LR14 batteries.
  Power supply available as an option.
• Wear parts can be replaced as modules.
• Mounting: With four screws through key holes and one optional anti-theft hole in the back wall.
• Delivery includes fixing material and batteries.

• Weight (in kg): 1,8
