Idral Pedaal segisti, põvanda
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Müüja: PEGU OÜ

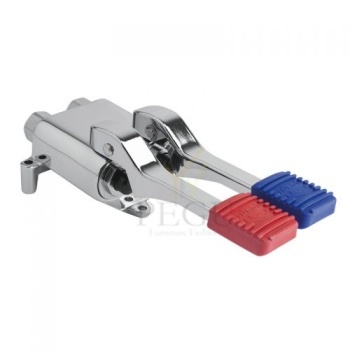

Floor mounted double pedal mixer
2 independent controls for hot and cold water
Cast brass body
Anti-limescale and self-lubricant material valve
Progressive stop without water hammer
Fastenings included
Failid
Dušpaneel PRESTO DL400SE eelsegatud veele, 30 sek 3bar, alumiinium stop kraaniga sirge 1/2"
Душевая панель PRESTO DL400SE на смешанную/холодную воду, 30 sek 3bar, алюминий стоп кран 1/2"
Vajutava nupuga duššipaneel
DL400SE
eelsegatud vesi
Presto
30 sek. töötsükkel 3 bar
Range: Timed flow single tap for shower
Ref: 27400 - PRESTO DL 400 SE® single tap with straight stop valve
> Working pressure :
1 to 5 bar
> Flow :
8 l/min at 3 bar with integrated flow limiter (+ additional 6l/mn limiter) Anti-water-hammering design
Fixed shower head with anti-limescale spikes
> Flow time :
30 seconds (± 5 sec.)
> Hydraulic supply :
G 1/2" (15x21) Top water inlet with straight stop valve For cold or premixed water
> Material and colour finish :
Injected molded metal body and cover
Extruded cover in aluminium (magnesium-silicon alloy 6060)
> Thermal resistance :
Resistant to a temperature of 75°C for 30-minute-thermal-shocks
> Security :
Patented anti-blocking "S" system to avoid the water to flow continuously
> Delivered with :
VBA screws and nylon plugs Additional 6l/mn limiter
M G 1/2" - FG3/4" stop valve and filter Instruction manual
> Standards & approvals :
Acoustic class I
Molded chrome-plated body in accordance with EN 12540
200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227
Töötsükkel 7 sek
> Working pressure: 1 to 5 bar
> Flow: 3 l/min at 3 bars - 4-position setting Anti water-hammer system
> Flow time: 15 seconds - lever upwards or downwards
> Hydraulic supply: 2 PEX hoses DN8 G3/8'' - 350mm
> Thermal resistance: This tap can withstand a thermal shock of 75°C for 30 minutes as part of a thermal shock programme
> Safety: With temperature limiter (at 38°C for cold water at 15°C/3 bar and hot water at 60°C/3 bar)
> Convenience: Soft-touch Two-coloured ergonomic lever, in glass fiber reinforced polymer
> Delivered with: 2 PEX hoses with swivel nut and NF check valves 1 base gasket 2 MM 3/8'' (12x17) stop valves 2 Filter gaskets 1 Fixing bracket > Standards / Approvals: Chrome-plated brass body compliant with standards NF EN1982 / NF EN12164 / NF EN12165 Nickel-Chrome surface treatment compliant with NF EN12540 Neutral Salt Spray (NSS) resistant: 200 h according to NF ISO 9227
> Working pressure : 1 to 5 bar
> Flow : 6 l/min with integrated flow limiter Anti-water-hammering design Hand-held shower on rail with chrome plated slide > Flow time : 30 seconds (± 5 sec.)
> Hydraulic supply : G 1/2" (15x21), top or rear water inlet. For rear water inlet, we recommend to add the adaptation kit under the reference 91026. On ALPA NF IB mixer tap with NF check valves
> Material : Anodised aluminium extruded section (2.5mm thickness) Aluminium removable valve plate, peinted RAL 7005 colour High resistance RAL 7005 coloured ABS covers
> Functioning: Wide opening panel without the need to dismantle from the wall and shower taps on a removable valve plate
> Thermal resistance : Resistant to a temperature of 75°C for 30-minute-thermal-shocks > Security : Adjustable tamper-proof temperature limiter to prevent scalding
> Delivered with : 1/2" hoses with revolving nuts MM 1/2" (15x21) straight stop valve and 250 micron filters Fastening screw and instruction manual
> Standards & approvals : Brass body in accordance with EN 1982, EN 12164, EN 12165 Chrome-plated surface treatment in accordance with EN 12540 200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227
> Working pressure :
1 to 5 bar
> Flow :
6 l/min with integrated flow limiter
Fixed shower head with anti-limescale spikes Quick connector for hand-held shower
> Flow time :
30 seconds (± 5 sec.)
> Hydraulic supply :
G 1/2" (15x21), top or rear water inlet. For rear water inlet, we recommend to add the adaptation kit under the reference 91026 On P 50 tap NF II and thermostatic mixer tap EN 1111 (NF check valves)
G1/2" two-way reverser (shower head/hand-held shower reverser)
> Material :
Anodised aluminum profile (2.5mm thickness) Aluminum removable valve plate, peinted RAL 7005 High resistance RAL 7005 coloured ABS casings
> Functioning:
Wide opening panel without the need to dismantle from the wall and shower taps on a removable valve plate
> Thermal resistance :
Resistant to a temperature of 75°C for 30-minute-thermal-shocks
> Security :
Anti-scald system: flow is immediately stopped if the cold water is cut off Maximum delivered temperature : pre-fixed at 38°
> Delivered with :
1/2" hoses with revolving nuts
MM 1/2" (15x21) straight stop valve and 250 micron filters Quick connector for hand-held shower
Fastening screws and instruction manual
> Standards & approvals :
Brass body in accordance with EN 1982, EN 12164, EN 12165 Chrome-plated surface treatment in accordance with EN 12540 200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227
