Idral Pedaal segisti, seinale
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Kohustuslik märge projekti spetsifikatsioonis: PEGU OÜ

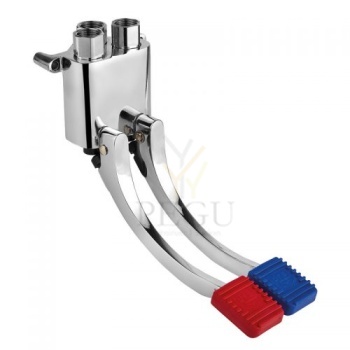

Wall mounted double pedal mixer
2 independent controls for hot and cold water
Cast brass body
Anti-limescale and self-lubricant material valve
Progressive stop without water hammer
Fastenings included
Failid
Kraanikaussi segisti isesulguv MODERN, 15sek 3bar
Vajutava nupuga segisti
Idral
kroom
15 sek. töötsükkel 3 bar
6 l/min
Töötsükkel 7 sek
> Working pressure :
1 to 5 bar
> Flow :
6 l/min with integrated flow limiter Anti-water-hammering design
Hand-held shower on rail with chrome plated slide
> Flow time :
30 seconds (± 5 sec.)
> Hydraulic supply :
G 1/2" (15x21), top or rear water inlet. For rear water inlet, we recommend to add the adaptation kit under the reference 91026. On ALPA S® NF IB mixer tap with NF check valves
> Material :
Anodised aluminium extruded section (2.5mm thickness) Aluminium removable valve plate, peinted RAL 7005 colour High resistance RAL 7005 coloured ABS covers
> Functioning:
Wide opening panel without the need to dismantle from the wall and shower taps on a removable valve plate
> Thermal resistance :
Resistant to a temperature of 75°C for 30-minute-thermal-shocks
> Security :
Adjustable tamper-proof temperature limiter to prevent scalding
Patented anti-blocking "S" system preventing the water flows continuously
> Delivered with :
1/2" hoses with revolving nuts
MM 1/2" (15x21) straight stop valve and 250 micron filters Fastening screw and instruction manual
> Standards & approvals :
Brass body in accordance with EN 1982, EN 12164, EN 12165 Chrome-plated surface treatment in accordance with EN 12540 200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227
DESCRIPTION
TEMPOMIX 3 shower kit
Ref. 794BOX1-794219
Recessed time flow shower mixer with soft-touch operation:
Tamperproof chrome-plated metal wall plate 160 x 160mm.
Waterproof recessing housing:
- Collar with waterproof seal.
- Hydraulic connection from the exterior and maintenance from the front.
- Top inlet.
- Adjusts to all types of installation (rails, solid walls, panels).
- Compatible with wall finishes 10 - 120mm (while maintaining the minimum recessing depth of 93mm).
- Suitable for standard pipe supply or "pipe in pipe".
- Stopcocks and flow rate adjustment, filters, non-return valves and cartridge are integrated and can be accessed from the front.
- TEMPOMIX 3 single control mixer F½".
-Supplied in 2 kits: secure system flush without sensitive elements.
Temperature control and operation via the push-button.
Maximum temperature limiter (can be adjusted by installer).
Time flow ~30 seconds, can be adjusted.
Soft-touch operation.
Flow rate 6 lpm at 3 bar.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation.
PREMIX COMFORT
Ref. 731300
Group thermostatic mixing valve for mixed water distribution from 32° to 42°C:
Anti-scalding safety.
Regulation of temperature variations.
Non-return valves and filters accessible from the exterior without having to remove the mechanism.
Thermal cartridge with no specific lever needed (push-button on the control knob).
Interchangeable cartridge with automotive cell.
High-resistance chrome-plated brass body.
Maximum hot water temperature: 85°C.
Differential hot water / mixed water: 15°C mini.
Pressure differences at the entrance: 1 bar maximum (0.5 bar recommended).
Minimum pressure / maximum: 1 to 10 bar (1 to 5 bar recommended).
Left hand side hot water inlet (red ring) and right hand side cold water inlet (blue ring).
Mixed water outlet at the top (purple ring).
For bottom outlet: unscrew / place lid at the top and outlet connector at the bottom.
Maximum temperature limiter, can be adjusted by the installer.
Reduced risk of scalding by limiting temperature at the point-of-use.
90 lpm - M1".
