Idral Pedaal segistiga komplekt, põvanda
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Müüja: PEGU OÜ

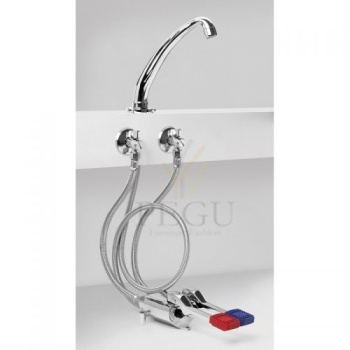

Complete assembling kit including double pedal mixer and spout

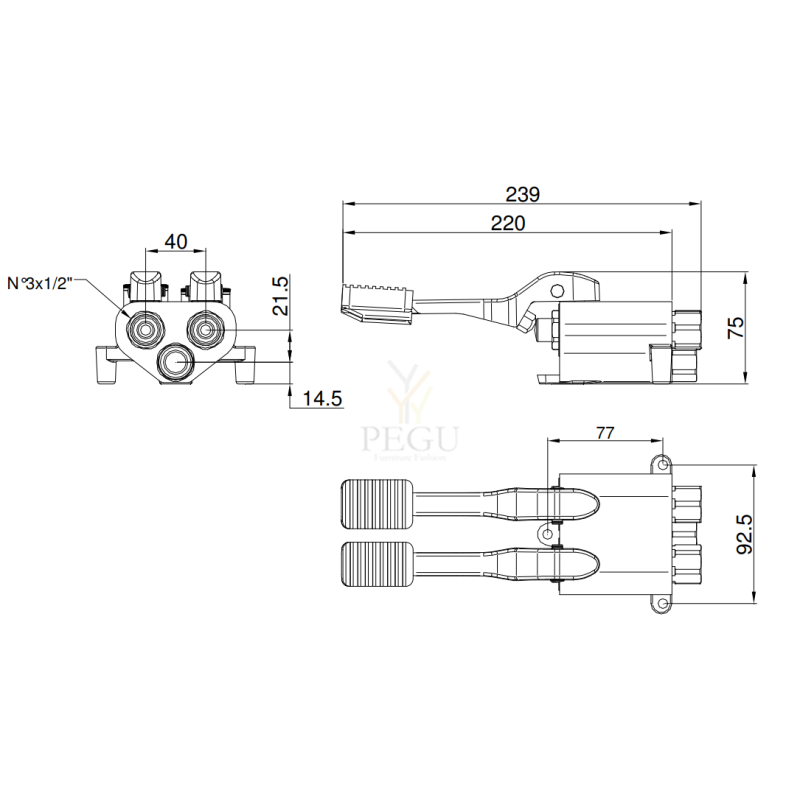

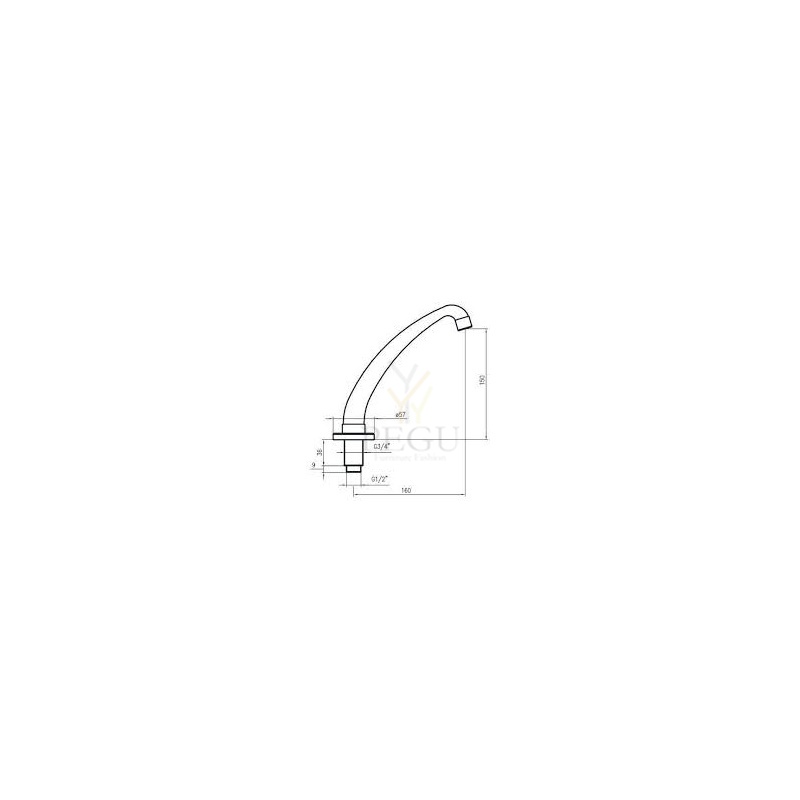

It includes: double pedal mixer art. 02066, spout art. 02025, water connections with flexible tubes, check valves with filter
Failid
Vajutava nupuga dušši segisti
ALPA
Presto
kroom
30 sek. töötsükkel 3 bar
> Working pressure: 1 to 5 bar
> Flow: 3 l/min at 3 bars - 4-position setting Anti water-hammer system
> Flow time: 7 seconds - lever upwards 11 seconds - lever downwards
> Hydraulic supply: 2 PEX hoses DN8 G3/8'' - 350mm
> Thermal resistance: This tap can withstand a thermal shock of 75°C for 30 minutes as part of a thermal shock programme
> Safety: With S® antiblocking system to prevent blocking in continuous flow With temperature limiter (at 38°C for cold water at 15°C/3 bar and hot water at 60°C/3 bar) > Convenience: Soft-touch Two-coloured ergonomic lever, in glass fiber reinforced polymer
> Delivered with: 2 PEX hoses with swivel nut and NF check valves 1 base gasket 2 MM 3/8'' (12x17) stop valves 2 Filter gaskets 1 Fixing bracket
> Standards / Approvals: Chrome-plated brass body compliant with standards NF EN1982 / NF EN12164 / NF EN12165 Nickel-Chrome surface treatment compliant with NF EN12540 Neutral Salt Spray (NSS) resistant: 200 h according to NF ISO 922
> Working pressure :
1 to 5 bar
> Flow :
6 l/min with integrated flow limiter Anti-water-hammering device
Fixed shower head with anti-limescale spikes
> Flow time :
30 seconds (± 5 sec.)
> Hydraulic supply :
G 1/2" (15x21), top or rear water inlet. For rear water inlet, we recommend to add the adaptation kit under the reference 91026 On P 50 tap NF II with cold water or pre-mixed water
> Material :
Anodised aluminium extruded section (2.5mm thickness) Aluminum removable valve plate, peinted RAL 7005 colour High resistance RAL 7005 coloured ABS covers
> Functioning:
Wide opening panel without the need to dismantle from the wall and shower taps on a removable valve plate
> Thermal resistance :
Resistant to a temperature of 75°C for 30-minute-thermal-shocks
> Security :
Non turnable push button Non-removable, wear-proof red marker
> Delivered with :
1/2" hoses with revolving nuts
MM 1/2" (15x21) straight stop valves and 250 micron filters Fastening screws and instruction manual
> Standards & approvals :
Brass body in accordance with EN 1982, EN 12164, EN 12165 Chrome-plated surface treatment in accordance with EN 12540
200-hour neutral salt spray resistant (NSS) in concordance with ISO 9227
Wall mounted pedal tap
Cast brass body
Anti-limescale and self-lubricant material valve
Progressive stop without water hammer
Fastenings included
PREMIX SECURITY
Ref. 731052
Group thermostatic mixing valve for hot water circulating loops adjustable from 44°C to 58°C:
Anti-scalding safety.
Regulates temperature variations.
Non-return valves and filters accessible from the exterior without having to remove the mechanism.
Thermal cartridge with no specific lever needed (push-button on the control knob).
Interchangeable cartridge with thermostatic cell.
High-resistance chrome-plated brass body.
Maximum hot water temperature: 85°C.
Differential hot water / mixed water: 15°C mini.
Pressure differences at the entrance: 1 bar maximum (0.5 bar recommended).
Minimum pressure / maximum: 1 to 10 bar (1 to 5 bar recommended).
Left hand side hot water inlet (red ring) and right hand side cold water inlet (blue ring).
Mixed water outlet at the top (purple ring) for bottom outlet: unscrew / place lid at the top and outlet connector at the bottom.
15% energy savings: optimised heat loss (comparison between a circulating loop at 55°C and a non-circulating system at 70°C).
Safety and prolongation of system life span (Hot water at > 65°C leads to premature aging within the system).
Maximum temperature limiter, can be adjusted by the installer.
Reduced risk of scalding by limiting temperature at the point-of-use.
55 lpm - M3/4".
