86 x 260 x 121 mm

• Sensor liquid soap dispenser in robust, germ-reducing and easy-care stainless steel (AISI 316L).
• All-stainless steel housing; all corners fully welded, visible surfaces satin finished and brushed.
  Further available surfaces: see below.
• With EWAR® eModule touch-free operated and non-drip soap pump.
• Designed for standard 500 ml bottles of liquid soap or hand lotion.
• Inspection slot to indicate fill level.
• Accessible for refilling through lockable, hinged housing.
• Keyed alike cylinder lock in corrosion-resistant zinc die-casting.
• eModule battery-powered with two 1.5 V Baby/LR14 batteries.
  Power supply available as an option.
• Wear parts can be replaced as modules.
• Mounting: With three screws through key holes and one optional anti-theft hole in the back wall.
• Delivery includes fixing material, batteries and first fill with soap.

• Weight (in kg): 2,1

86 x 298 x 121 mm

• Sensor disinfectant dispenser in robust, germ-reducing and easy-care stainless steel (AISI 316L).
• All-stainless steel housing; all corners fully welded, visible surfaces satin finished and brushed.
  Further available surfaces: see below.
• With EWAR® eModule touch-free operated disinfectant pump with 950 ml tank.
• Designed for standard disinfectants.
• Inspection slot to indicate fill level.
• Accessible for refilling through lockable, hinged housing.
• Keyed alike cylinder lock in corrosion-resistant zinc die-casting.
• eModule battery-powered with two 1.5 V Baby/LR14 batteries.
  Power supply available as an option.
• Wear parts can be replaced as modules.
• Mounting: With two screws through key holes and one optional anti-theft hole in the back wall.
• Delivery includes fixing material and batteries.

• Weight (in kg): 1,8

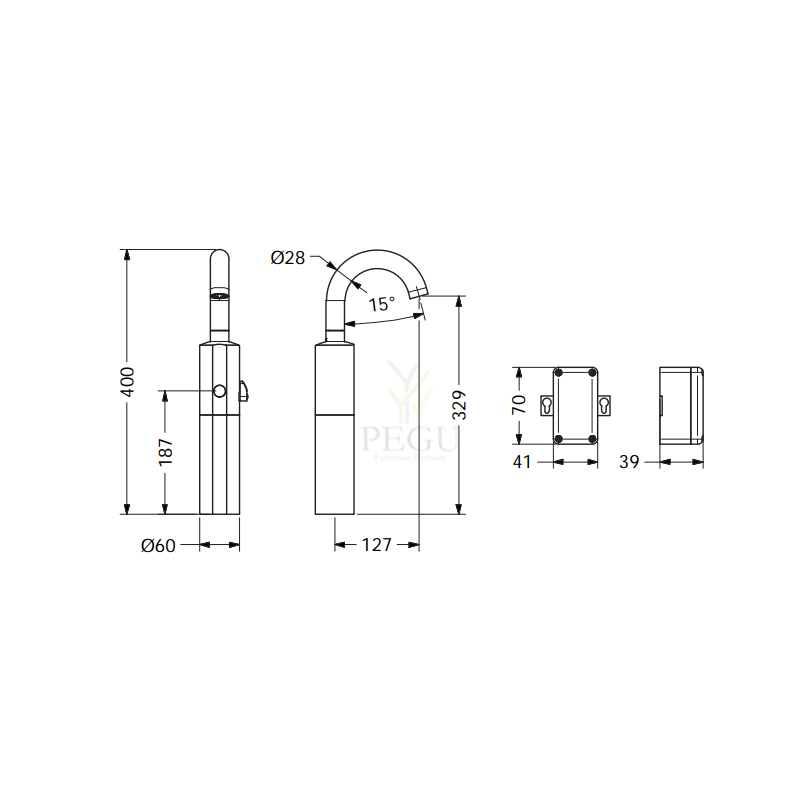

> Working pressure : 1 to 5 bar

> Flow : 3 l/min with integrated flow limiter High quality anti-limescale aerator Anti-water-hammering design

> Hydraulic supply : G 3/8" (12x17)

> Power supply : Integrated 6V CRP2 lithium battery

> Material and colour finish : Injected molded metal body and cover Matte Black finishing

> Thermal resistance : Resistant to a temperature of 75°C for 30 minute thermal shocks

> Security : Temperature limiting system to avoid any risk of scalding Anti-overflow security time is set to 30 seconds Anti-blocking system preventing the water to flow continuously

> Delivered with : 1 Brass clamping nut 1 Gasket and 1 Washer 2 PEX Hoses with revolving nuts and NF check valves 2 MM G 3/8" (12x17) Stop valves 2 Filter gaskets 1 Self-adhesive sticker Instruction manual

> Standards & approvals : Molded chrome-plated body in accordance with EN 12540 Brass in accordance with NF EN1982, EN12164, EN12165 200-hour neutral salt spray resistant (NSS) in accordance with NF ISO 9227
