Intra UME R/V teras koristajavalamu, pritsmisplekiga 435x320x205mm
Lisa sobivad kaubad ostukorvi ja kasuta promokoodi PEGU-SUVI erihindade saamiseks! Promokood kehtib toodetele, mis pole hetkel muudes kampaaniates.
Kaubamärk:
![Intra-TEKA-PEGU](https://www.pegu.ee/media/gavial/.image/brand-thumb/general/Intra/Intra_Scandinavian_Design_pos.jpg)
Ühik: tk
Tarneaeg: 14 -21 päeva
Müüja: PEGU OÜ

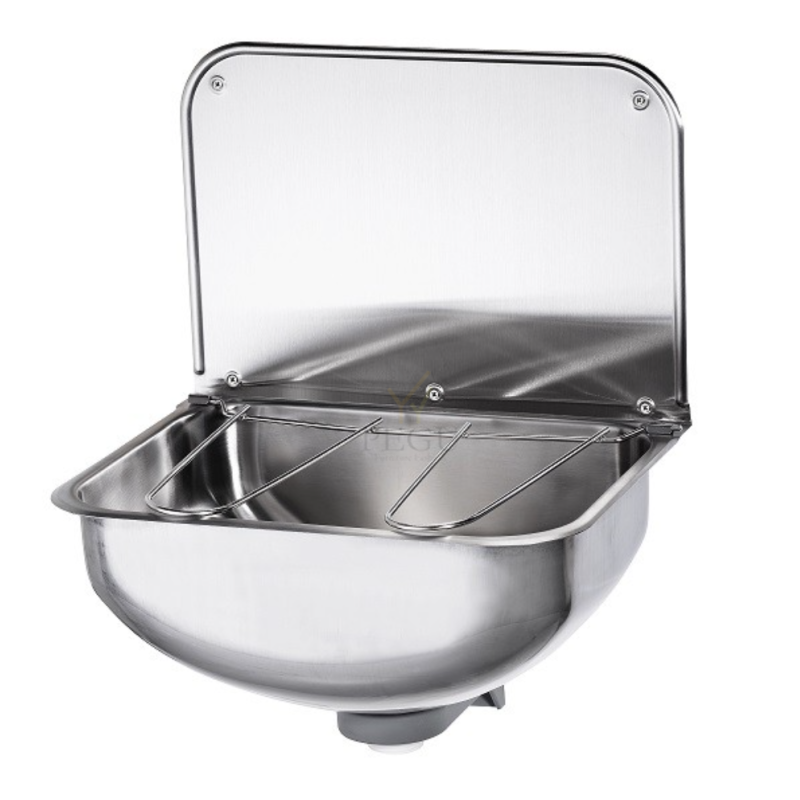

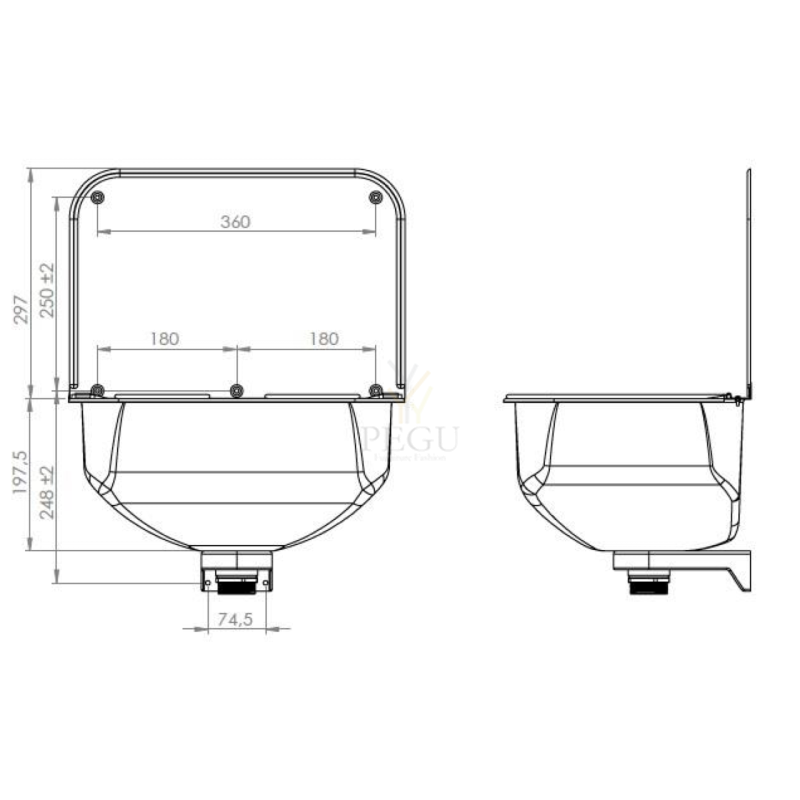

Intra UME R/V teras koristajavalamu, pritsmisplekiga 435x320x205mm
Valamu R/V terasest
Garaazi/koristusruumi jaoks
UME
Stainless Steel bucket sink. Supplied with splash back and fitted with a fixated swing back bucket tray. Including 1½” waste plug.
Seinakraan, vooliku otsaga
Poleeritud messing
1/2"
GENOU wall-mounted hand washbasin
Reference: 180330
CCTP description
Wall-mounted, knee-operated hand washbasin.
Bacteriostatic 304 stainless steel. Polished satin finish.
Stainless steel thickness: 1.2mm
Rounded edges prevent injury.
Supplied with swan neck spout and time flow
tap with 7 second time flow.
Supplied with 1 ¼" waste.
Without overflow.
Supplied with fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 5kg.
Valamu R/V terasest
Garaazi/koristusruumi jaoks
DESCRIPTION
Joogifontään seinale sensoriga R/V teras AISI304 6V(4x1.5V)
AFO 01.Yst. steel sensor controlled drinking fountain
AFO 01.Y is st. stainless wall hung drinking fountain controlled by sensor. Water runs after disrupting the scanning zone.
Fountain is made by welding all components together.
Fountain is suppplied with safety power 12 V, 50 Hz from power supply ZAC (AFO 01.Y) or with 4x AA battery (AFO 01.YB).
Material is standardly st. steel AISI 304 or can be AISI 316 (AFO 01.Y.CL or AFO 01.YB.CL).
St. steel driking fountain AFO 01.Y is based on favourite model AFO 01 with manual control.
The sensor, located on the right side of the fountain, is reacting on the approach of the user. Water starts to run from the nozzle, located in the middle of the fountain bowl, and runs over the time when the user´s head is in the scanning zone (max. 30 sec.) + preset time (max. 4 sec.) to clean the nozzle.
Package contents
- st. steel drinking fountain
- nozzle
- sensor and electronic
- electromagnetic valve
- connecting flexible hose
- corner valve with filters
- siphon
- mounting material
water inlet | G 1/2" |
water pressure | 1 - 10 Bar (AFO 01.Y; AFO 01.Y.CL) |
2 - 8 Bar (AFO 01.YB; AFO 01.YB.CL) | |
outlet | d = 40 mm |
bowl inner dimension | d = 245 mm |
weigth | 4 kg |
suppply | 12 V, 50 Hz (AFO 01.Y; AFO 01.Y.CL) |
6 V - 4 x AA battery (AFO 01.YB; AFO 01.YB.CL) | |
power supply | ZAC 1/20 (max. 3 x AFO 01.Y ; AFO 01.Y.CL) |
