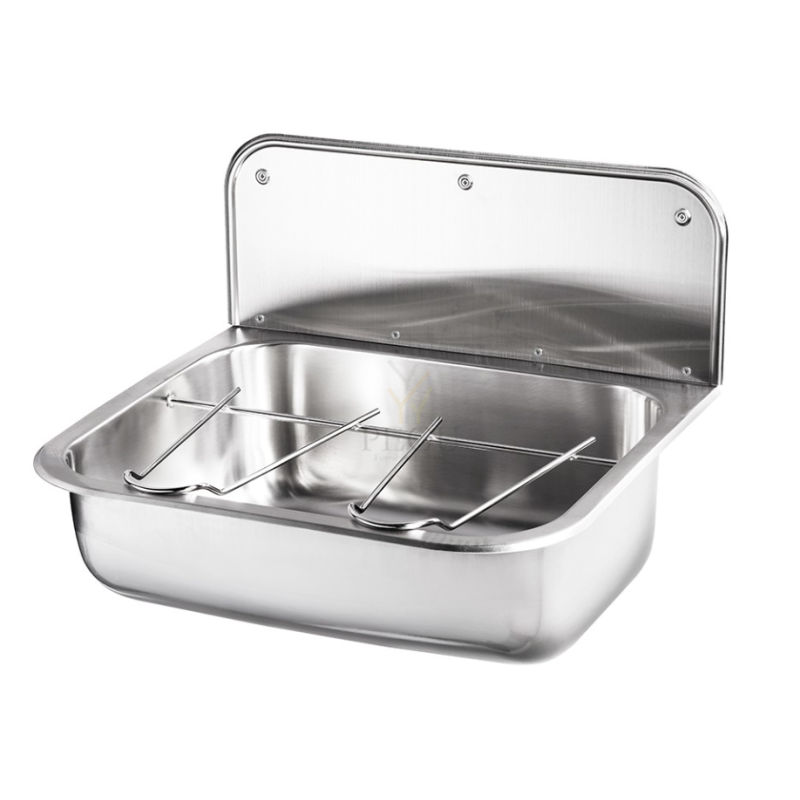

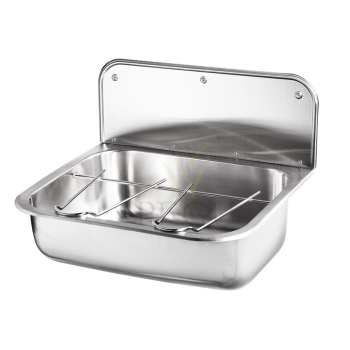

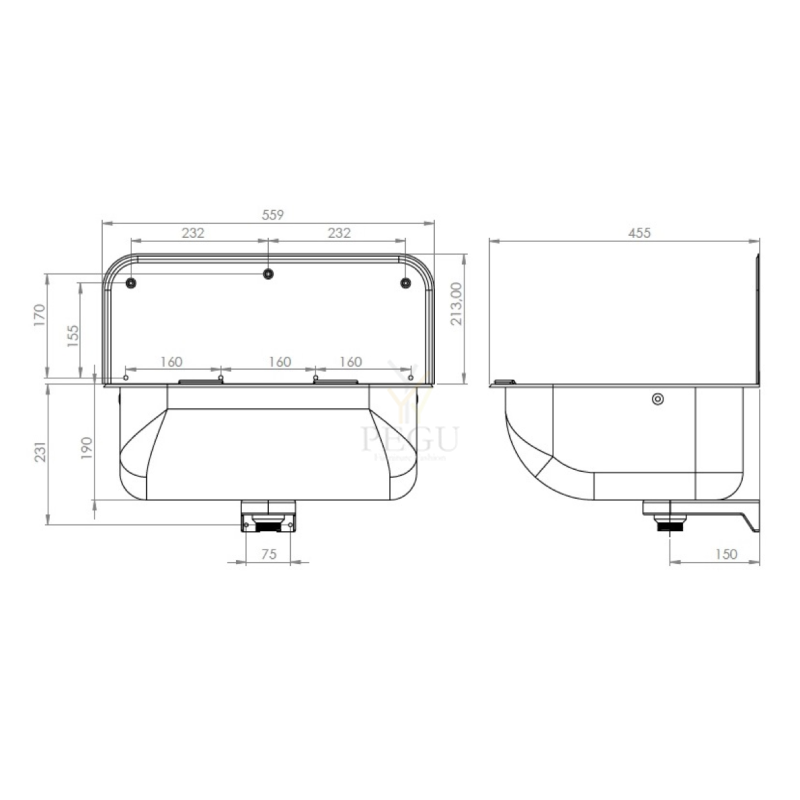

Intra UXL R/V teras koristajavalamu, pritsmisplekiga 560x460x185mm
Lisa sobivad kaubad ostukorvi ja kasuta promokoodi PEGU-SUVI erihindade saamiseks! Promokood kehtib toodetele, mis pole hetkel muudes kampaaniates.
Kaubamärk:
Ühik: tk
Tarneaeg: 14 -21 päeva
Müüja: PEGU OÜ
IIntra UXL R/V teras koristajavalamu, pritsmisplekiga 560x460x185mm
Valamu R/V terasest
Garaazi/koristusruumi jaoks
UXL
Stainless Steel bucket sink. Supplied with splash back and fitted with a removable swing back bucket tray. Including 1½” waste plug.
Seinakraan, vooliku otsaga
Pronks
1/2"
Koristaja valamu Intra U2 490x390x260
Bucket sink in stainless steel for wall mounting. Supplied with stainless steel wall panel, supporting bracket and 3 1/2" x 2" grated waste, and reducer from 2" - 1 1/2".
General
| Size (mm): | 525 x 334 x 97 |
| Large bowl (mm): | 500 x 310 x 83 |
| Designer: | Halvor Thorsen |
Description
Icon Hand Wash Basin IC1-22 in stainless steel 18/10, is designed for under mounting.The hand wash basin is pressed in one piece and has laser-cut integrated outlet holes that are concealed by a removable outlet cover.The basin is supplied with waste under part and overflow equipment.
Polished finish.
Loputussüsteem pissuaarile aegreleega 230V/AC antivandaalne
SLP 01Z
Time-controlled flushing unit, 230 V AC
Characteristics
- vandal-proof
- time-controlled flushing unit for urinal troughs SLPN 02(Z) - 05(Z)
- adjustable flushing time 0,5 - 15,5 s, standard 5 s
- parameters adjustment by remote control SLD 04
- adjustable flushing interval 10 min - 3 days, standard 1 h
- after switch on the power supply 230 V AC, SLP 01Z starts to flush in adjusted interval
| Order number | 01011 |
| Code | SLP 01Z |
Supply specification
Technical information
Mounting box dimension: 145 x 155 x 100 mm
Operating voltage: 230 V AC/50 Hz
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 40 l/min (inf. data)
Water inlet: male thread G 1“
Water outlet: male thread G 1“
AFO 01.Yst. steel sensor controlled drinking fountain
AFO 01.Y is st. stainless wall hung drinking fountain controlled by sensor. Water runs after disrupting the scanning zone.
Fountain is made by welding all components together.
Fountain is suppplied with safety power 12 V, 50 Hz from power supply ZAC (AFO 01.Y) or with 4x AA battery (AFO 01.YB).
Material is standardly st. steel AISI 304 or can be AISI 316 (AFO 01.Y.CL or AFO 01.YB.CL).
St. steel driking fountain AFO 01.Y is based on favourite model AFO 01 with manual control.
The sensor, located on the right side of the fountain, is reacting on the approach of the user. Water starts to run from the nozzle, located in the middle of the fountain bowl, and runs over the time when the user´s head is in the scanning zone (max. 30 sec.) + preset time (max. 4 sec.) to clean the nozzle.
Package contents
- st. steel drinking fountain
- nozzle
- sensor and electronic
- electromagnetic valve
- connecting flexible hose
- corner valve with filters
- siphon
- mounting material
| water inlet | G 1/2" |
| water pressure | 1 - 10 Bar (AFO 01.Y; AFO 01.Y.CL) |
| 2 - 8 Bar (AFO 01.YB; AFO 01.YB.CL) | |
| outlet | d = 40 mm |
| bowl inner dimension | d = 245 mm |
| weigth | 4 kg |
| suppply | 12 V, 50 Hz (AFO 01.Y; AFO 01.Y.CL) |
| 6 V - 4 x AA battery (AFO 01.YB; AFO 01.YB.CL) | |
| power supply | ZAC 1/20 (max. 3 x AFO 01.Y ; AFO 01.Y.CL) |
