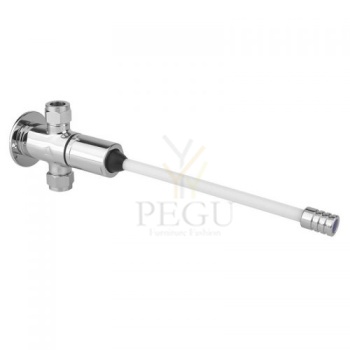

Isesulguv Põlvekraan 15 sek IDRAL eelsegatud, külma veele
Kaubamärk:
![Idral-PEGU](https://www.pegu.ee/media/gavial/.image/brand-thumb/general/Idral/IDRAL_uff.jpg)
Ühik: tk
Tarneaeg: 7-14 päeva
Kohustuslik märge projekti spetsifikatsioonis: PEGU OÜ
CLASSIC series wall mounted self closing basin tap with knee operated lever with unscrewing control system
Multidirectional lever with unscrewing control system
Self-closing time 15 secs at 3 bars (not adjustable)
Failid
Dušikomplekt SPORT isesulguv temperatuuri regulaatoriga KSA32/36 15sek
Dushikomplekt
kroom
15 sek töötsükkel
Segistiga+toru+otsik
Vooluhulga piiraja
12 l/min (3bar)
1401
Veesääst 30% (3 bar)
RST vee vooluhulga regulaator dušisegistile või peaduššile (½” ühendus). Toodetud Saksamaal. Pakendis 1 tk.
Töötsükkel 7 sek
> Working pressure: 1 to 5 bar
> Flow: 3 l/min at 3 bar - 4 position-setting Anti water-hammer system
> 15 seconds - lever upwards or downwards
> Hydraulic supply: 2 PEX hoses DN8 G3/8'' - 350mm
> Thermal resistance: This tap can withstand a thermal shock of 75°C for 30 minutes as part of a thermal shock programme
> Convenience: Soft-touch Two-coloured ergonomic lever, in glass fiber reinforced polymer
> Installation: Cross-partition Wall thickness: 0 to 50 mm
> Delivered with: 2 PEX hoses with swivel nut and NF check valves 2 MM 3/8'' (12x17) stop valves 2 Filter gaskets 1 clamping nut > Standards / Approvals: Chrome-plated brass body compliant with standards NF EN1982 / NF EN12164 / NF EN12165 Nickel-Chrome surface treatment compliant with NF EN12540 Neutral Salt Spray (NSS) resistant: 200 h according to NF ISO 9227
> Working pressure : 1 to 5 bar
> Flow : 6 l/min with integrated flow limiter Anti-water-hammering device Hand-held shower on rail with chrome plated slide
> Flow time : 30 seconds (± 5 sec.)
> Hydraulic supply : G 1/2"(15x21), top or rear water inlet. For rear water inlet, we recommend to add the adaptation kit under the reference 91026. On P 50 tap NF II and thermostatic mixer tap EN 1111 (NF check valves)
> Material : Anodised aluminum profile (2.5mm thickness) Aluminum removable valve plate, peinted RAL 7005 High resistance RAL 7005 coloured ABS casings
> Functioning: Wide opening panel without the need to dismantle from the wall and shower taps on a removable valve plate
> Thermal resistance : Resistant to a temperature of 75°C for 30-minute-thermal-shocks
> Security : Anti-scald system: flow is immediately stopped if the cold water is cut off Maximum delivered temperature : pre-fixed at 38°
> Delivered with : 1/2" hoses with revolving nuts MM 1/2" (15x21) straight stop valve and 250 micron filters Fastening screw and instruction manual > Standards & approvals : Brass body in accordance with EN 1982, EN 12164, EN 12165 Chrome-plated surface treatment in accordance with EN 12540 200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227
