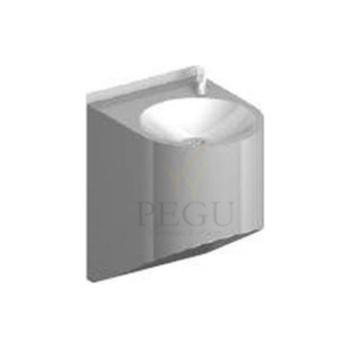

Joogifontään AFO04 seinale mehaaniline R/V teras AISI316(basseinile)

Tootekood: AZP-AFO04.CL
Kaubamärk:
Ühik: tk
Tarneaeg: 3-4 nädalad
Hind:
1226,00 €
Kuumakse alates: 104,21 €
Kogus: - +

Joogifontään AFO04 seinale mehaaniline R/V teras AISI316(basseinile)

AFO 04

suspension drinking fountain

AFO 04 is a stainless-steel drinking fountain of a modern design. It is manufactured with a double surface finish: matt bowl (blasted with ballotini) and brushed casing. Thanks to its interesting appearance, it particularly suits public spaces, such as sports facilities, parks, squares, business centres, fitness and wellness centres, but also schools and kindergartens.

Similarly to AFO 01, the drinking fountain is operated with a push valve. Water is flowing while the valve is pushed and for a preset time after its release, in which way the nozzle is rinsed.

The water inlet is through a flexible hose; siphon trap is made of a flexible coupling. The flexible design of the water inlet and outlet enables variable and trouble-free connection of the fountain as well as its simple dismounting.

The AFO 04 drinking fountain is made from stainless steel of the AISI 304 class; the AFO 04.CL drinking fountain is made from steel of the AISI 316 class.

Package contents

  • stainless steel casing
  • press valve
  • corner valve with filter
  • fixing bar
  • siphon
  • connecting hose
  • anchoring material
Water inlet G 1/2"
Water pressure 2 - 6 Bar (recommended 3 Bar)
Outlet d = 40 mm
Inner dimension of the fountain d = 245 mm
Weight 4 kg
  • Set-up water inlet - pipe G1/2“.
  • Set-up drainage d = 40 mm.
