Tootegrupid
FP005-SENSO1.png Zoom

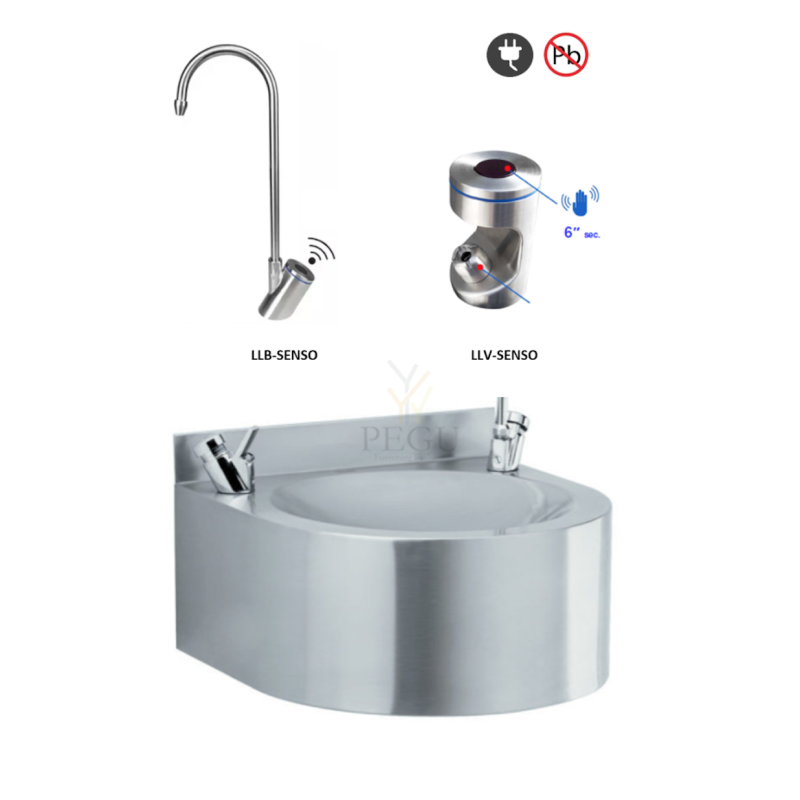

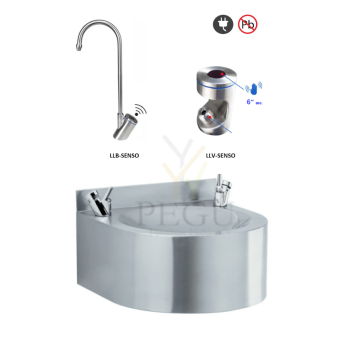

Joogifontaan FP005-SENSO kinnitus seina, satiin KONTAKTIVABA

Tootekood: FP-005-SENSO
Kaubamärk:
Ühik: tk
Tarneaeg: 7 päeva
Hind:
1649,00 €
Kuumakse alates: 140,17 €
Kogus: - +
   - või -

Joogifontaan FP005-SENSO kinnitus seina, satiin KONTAKTIVABA

pudelitäitmisekraaniga

Sarnased tooted
Tootekood: DE-311QU12 ,   Tarneaeg: 7 päeva
162,00 € (10%)
180,00 €

General

Size (mm): 560 x 420 x 199

Accessories

Included:
Extra equipment: Brackets

Mounting: Wall mount
Finish: Satin
Properties: Overflow
Tootekood: I-RS72STD + I-91008 ,   Tarneaeg: 14-21 päeva
427,00 €

Majandus valamu Intra VK50STD  555x455x230 senile kinnitav

Wall hung utility sink in stainless steel. Supplied with fixing brackets.

Tootekood: I-VK50STD ,   Tarneaeg: 14-21 päeva
305,00 €
Antivandaalne R/V teras piezo dušisi nupp, eelsegatud veele,  ilma el.adaptorita



AUS 11

Pressure button-controlled shower for heat regulated water










AUS 11 is a new type of shower fitting for single shower control. The fitting is designated for premixed water – with one water inlet and shower outlet elbow. Water is released and closed by an anti-vandal pressure button connected to electronics and an electromagnetic valve. The fitting is covered by a rust-free anti-vandal cover to prevent damage.

The mounting system has been designed so as to make removing the cover without using tools impossible with no bolt or screw being visible. The cover can be "pushed into" the wall level even if the mount box has been walled to an incorrect depth.

AUS 11 is identical to AUS 1P with a different design and very resistant cover sheet.

Electronics can work in two modes:

1) The button works on the START/STOP basis – water release/closing. If the water is not turned off upon the time adjusted by the user or manager (e.g. 20 seconds), the electronic system itself instructs water stopping. The user must press again to start water running. This significantly saves water as the user reduces the showering time.

2) The button works on the START/STOP basis. After the time adjusted by the manager (e.g. 3 minutes) expires there is a forced break when water cannot be released. During this time, the user is forced to leave the shower or wait. This prevents needless showering – water wasting.




Basic technical information
Water input: G 1/2“
Water pressure: 1 - 10 Bar (0,1 – 1,0 MPa)
Time of water flow: 10 s – 42,5 min in mode 1
  0 s - 42,5 min in mode 2
Power supply: 12 V, 50 Hz
Power requirement: 6 VA
Source of power supplz: ZAC 1/20 (max. 3× AUS 11)
  ZAC 1/50 (max. 8× AUS 11)
Weight: 2,0 kg


Requirements for setting up the construction
  1. Water installation set up as per picture
  2. Set-up alcove 150 x 75 mm for installation casket
  3. Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC


Complete delivery
  • installation casket
  • input and output bolting
  • electromagnetic valve
  • spherical valve
  • covering metal plate with piezo button
  • electronics


Made to order
  • SP 1 – shower arm with water flow of 9 l/min
  • SP 2 – shower arm with water flow of 7 l/min
  • SP 3 – shower arm with water flow of 7 l/min
  • ZAC - source of power supply 12V, 50Hz


Figure


A - water inlet G 1/2"
C - electricity supply cable 12 V, 50 Hz
G - water outlet into shower armG 1/2"




Download information about the product
AUS 11 data for projectants - ( 84 kB )

Tootekood: AZP-AUS 11 ,   Tarneaeg: 3-4 nädalad
375,00 €

CANAL wall-mounted wash trough
Ref. 120300

Wall-mounted wash trough for 4 posts - 2,400mm
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1mm for the bowl, 1.5mm for surroundand fixing brackets.
Easy to install: no joint concealers to install, light wash trough.
Drainage on the right.
With no tap hole.
Supplied with 1 ½" waste.
Without overflow.
Supplied with brackets and fixing elements.
CE marked. Complies with European standard EN 14296.
Weight: 20kg.
Possible to add a bacteriostatic 304 stainless steel splashback (ref. 0011800007).



Height 250mm
Length 2400mm
Width 400mm
Thickness 1mm (basin) et 1.5mm (edge and fixing brackets)
Finish 304 polished satin stainless steel
Tootekood: DE-120300 ,   Tarneaeg: 14-21 päeva
1115,10 € (10%)
1239,00 €
