Soodus

Laos

Joogifontaan kinnitus põranda R/V teras

Tootekood: FP-001
Kaubamärk:

Ühik: tk
Tarneaeg: 7 nädalad

Kohustuslik märge projekti spetsifikatsioonis: PEGU OÜ

kuumaks al. 68,72 €

Hind: 841,80 €

799,71 €

Kuumakse alates: 68,72 €

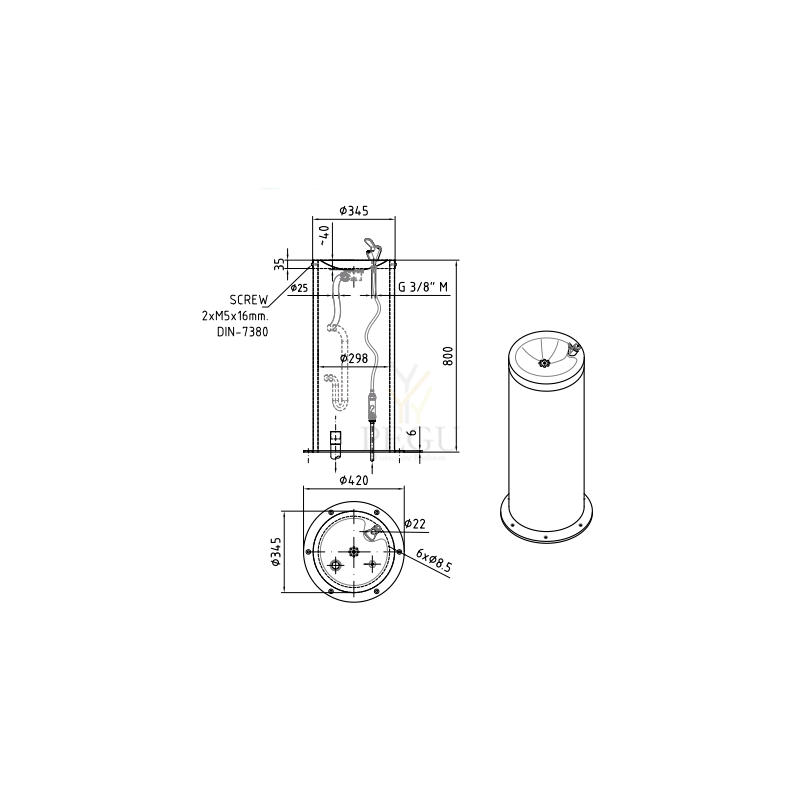

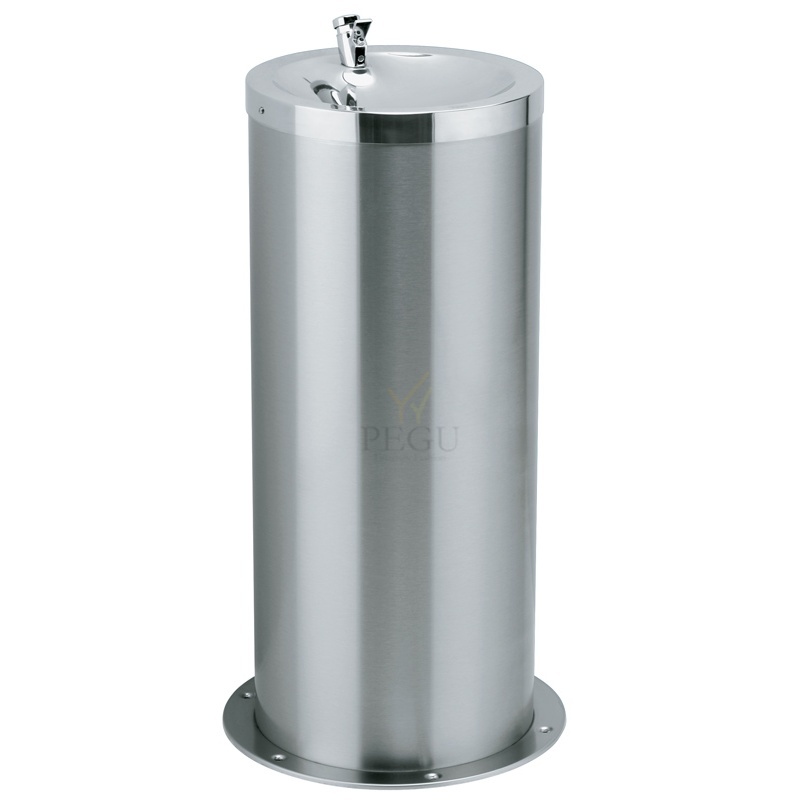

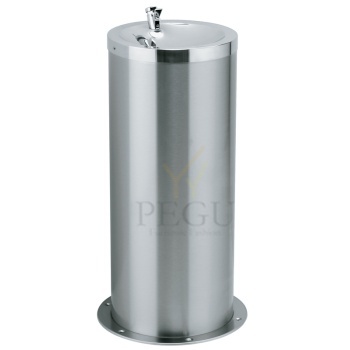

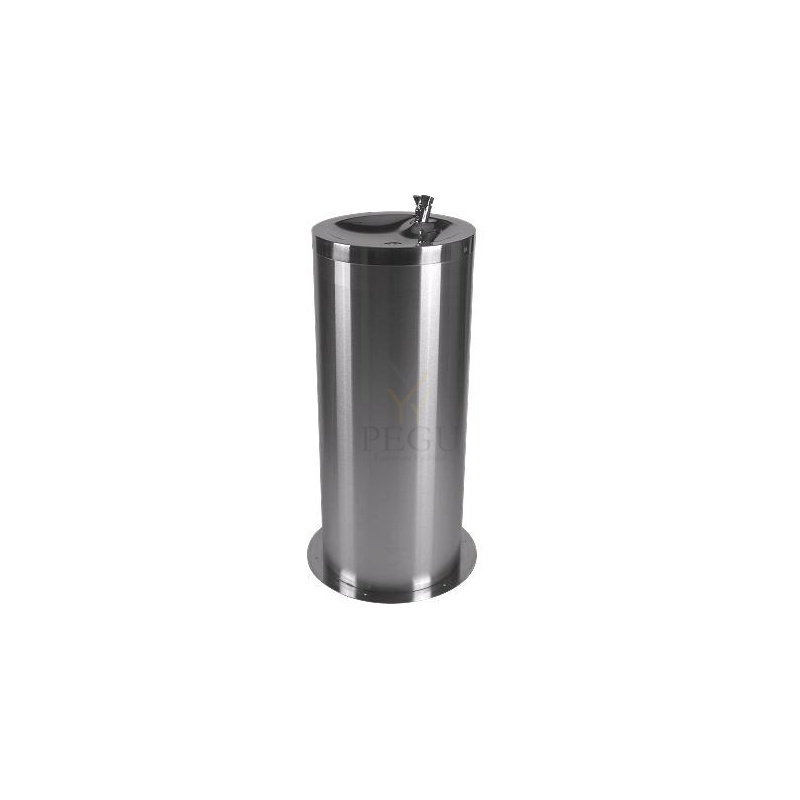

FP-001 Drinking fountain for foor installation made of 1mm thick stainless steel.

Supplied with a push button water bubbler.

Basin polished fnish Cover grinding fnish

* Customized height for children available. Made of Stainless Steel AISI 304 (1.4301)

Failid

Fuente FP-001Ficha Tecnica.pdf

Sarnased tooted

Laos

Majandus valamu Intra VK50STD 555x455x230 senile kinnitav

Wall hung utility sink in stainless steel. Supplied with fixing brackets.

Tootekood: I-VK50STD , Tarneaeg: 14-21 päeva

305,00 €

Võrdle

Soodus

Laost otsas

Külmumiskindel AUTOMAATJOOTJA Hobustele ja Lehmadele D80CM

DRINKING SYSTEM

Frost-free drinking system for cattle and horses
Fresh and clean water for the animals all year round
Without wiring or electricity
A minimum of maintenance
No concern about filling the drinking vessels
No concern about cleaning the drinking vessels

Automaatjootjad sobivad kasutamiseks nii karjamaal kui ka tallides ning nende läheduses asuvates joogikohtades.

Jootjaid on lihtne kasutada ning hobused saavad kiiresti aru, et mugavam on vee juurdevoolu avamiseks vajutada klapile

mitte nina otsaga vaid selle ülaosaga. Kui koon (mokad) on joomiseks vabad, joobki hobune loomulikul viisil vee pindmiselt

kihilt. Seetõttu olemegi valinud jooginõuks lai ja sügav kauss, et tekiks joomiseks mugav veepind.

Töötamise põhimõte

Tõusutoru on varustatud isetühjeneva 3-tee

ventiiliga, mis on paigaldatud kaevu, mis omakorda

on süvistatud pinnasesse.

Kui jootjat ei kasutata on veest tühi nii ventiil kui

ka tõustoru, milles olev vesi võiks muidu külmuda.

Nii jootja ventiil ja tõusutoru on külmumiskindlad nii

kaua kuni on külmumiskindel ka vee toitetorustik.

Tootekood: FL-A382 , Tarneaeg: 14-21 päeva

1070,55 € (10%)
1189,50 €

Võrdle

Laost otsas

Joogifontään seinale sensoriga R/V teras AISI316(basseinid) 12V/50Hz

AFO 01.Yst. steel sensor controlled drinking fountain

AFO 01.Y is st. stainless wall hung drinking fountain controlled by sensor. Water runs after disrupting the scanning zone.

Fountain is made by welding all components together.

Fountain is suppplied with safety power 12 V, 50 Hz from power supply ZAC (AFO 01.Y) or with 4x AA battery (AFO 01.YB).

Material is standardly st. steel AISI 304 or can be AISI 316 (AFO 01.Y.CL or AFO 01.YB.CL).

St. steel driking fountain AFO 01.Y is based on favourite model AFO 01 with manual control.

The sensor, located on the right side of the fountain, is reacting on the approach of the user. Water starts to run from the nozzle, located in the middle of the fountain bowl, and runs over the time when the user´s head is in the scanning zone (max. 30 sec.) + preset time (max. 4 sec.) to clean the nozzle.

Package contents

st. steel drinking fountain
nozzle
sensor and electronic
electromagnetic valve
connecting flexible hose
corner valve with filters
siphon
mounting material

water inlet	G 1/2"
water pressure	1 - 10 Bar (AFO 01.Y; AFO 01.Y.CL)
	2 - 8 Bar (AFO 01.YB; AFO 01.YB.CL)
outlet	d = 40 mm
bowl inner dimension	d = 245 mm
weigth	4 kg
suppply	12 V, 50 Hz (AFO 01.Y; AFO 01.Y.CL)
	6 V - 4 x AA battery (AFO 01.YB; AFO 01.YB.CL)
power supply	ZAC 1/20 (max. 3 x AFO 01.Y ; AFO 01.Y.CL)

Tootekood: AZP-AFO01.YCL , Tarneaeg: 3-4 nädala

1159,00 €

Võrdle

Laost otsas

Joogifontään põranda/sein pudeli täitmisega, mehaaniline R/V teras AISI304

AFO 01.SL

drinking fountain with spout for filling bottles designed to stand and to be attached to wall

AFO 01.SL is a drinking fountain with spout for filling bottles designed to stand and to be attached to wall. Water runs for the time for which the valve is pressed plus the pre-set period after it is released; thus the jet can be rinsed. Second pressure valve serves for bottle filling.

In standard version the fountain is produced with a niche suitable for filling the bottle of 0.7 l. Fliountain with a niche for filling the botlles of 1.5 l can be made on order.

Water supply is provided by a flexible hose, trap comprises an elastic flexible couple. Flexible design of water supply and outflow allows variable and easy connection of the drinking fountain as well as its dismounting.

TAutomatic drinking fountain (with a sensor) can be supplied per order.

AFO 01.SL is manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order.
For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

Package contents

Stainless housing with cone
Pressure valve with jet
Pressure valve for bottle filling
Flexible hose outflow
Fixing and connecting material

dimensions	330 x 900 x 365 mm
water outlet	d = 40 mm
water inlet	G 1/2"
water pressure	2 - 6 Bar, recommended 3 Bar
weight	12 kg

Set up water outlet d = 40 mm
Set up water inlet G 1/2"

Tootekood: AZP-AFO01.SL , Tarneaeg: 3-4 nädalad

1917,00 €

Võrdle

Laost otsas

Presto NEO anti-block Isesulgev kraan 1/2" 7 sek 150mm roostevaba teras AISI304L

> Working pressure: 1 to 5 bar

> Flow: 3 l/min at 3 bars - 4-position setting Anti water-hammer system

> Flow time: 7 seconds

> Hydraulic supply: G 1/2" x 15 - cold water

> Dimensions : 150mm projection

> Thermal resistance: This tap can withstand a thermal shock of 75°C for 30 minutes as part of a thermal shock programme

> Safety: With S® antiblocking system to prevent blocking in continuous flow Interchangeable head and non-turnable push button to avoid premature wear Non-removable blue circled marker

> Delivered with: 1 Installation manual

> Standards / Approvals: Stainless steel body (304 L) Neutral Salt Spray (NSS) resistant: 200 h according to NF ISO 9227

Tootekood: P66225 , Tarneaeg: 14 päeva

219,60 €

Võrdle
