Joogifontään veejahutussüsteemiga, pudeli taitmisega põrand/sein piezo nupp, R/V teras AISI304 230V/50Hz

Tootekood: AZP-AFO01.SCL
Kaubamärk:
Ühik: tk
Tarneaeg: 3-4 недели
Hind:
5765,00 €
Kuumakse alates: 490,03 €
Kogus: - +
   - või -

Joogifontään veejahutussüsteemiga, pudeli taitmisega põrand/sein piezo nupp,  R/V teras AISI304 230V/50Hz

AFO 01.SCL

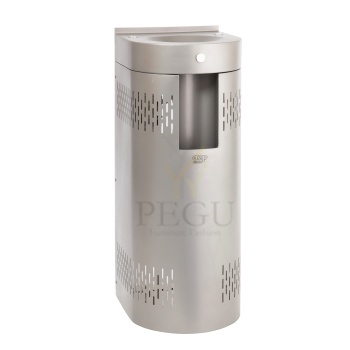

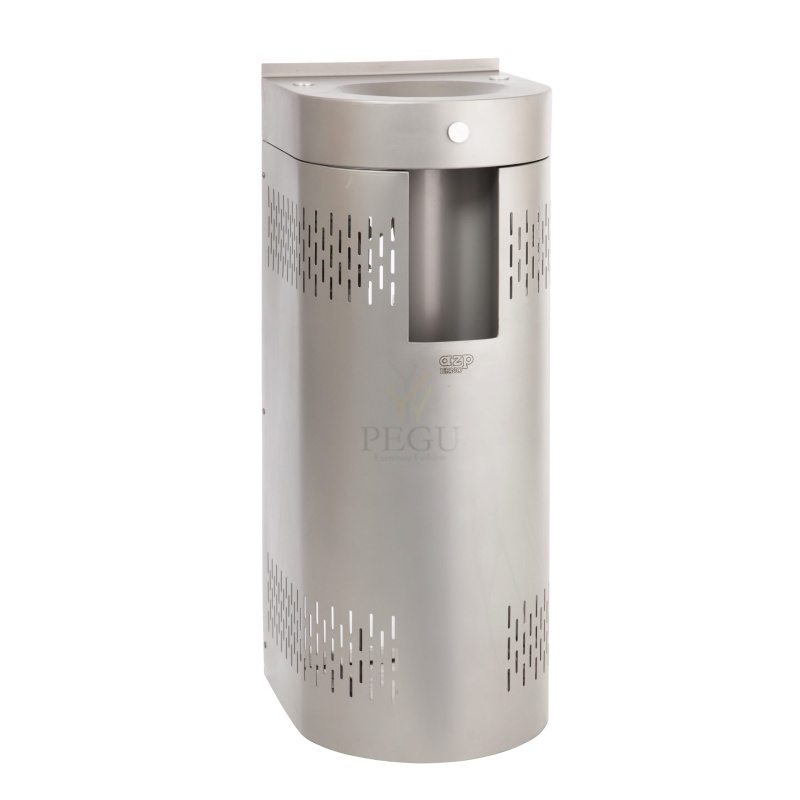

drinking fountain with cooling and spout for filling bottles designed to stand and to be attached to wall

AFO 01.SCL is a drinking fountain with cooling and spout for filling bottles designed to stand and to be attached to wall. User can select between uncooled water and water running through a flow cooler. Uncooled water is used for bottle filling as a standard – can be changed. Start/stop control by piezo-buttons – resistant solution. Facility keeper can set a time period after which the water flow automatically stops.

The product contains a flow cooler. It is not a design with cooled tank only where – after the pre-cooled amount of water is pumped out – the user has to wait for the next charge to be cooled.

Water supply is provided by a flexible hose, trap comprises an elastic flexible couple. Flexible design of water supply and outflow allows variable and easy connection of the drinking fountain as well as its dismounting.



Automatic drinking fountain (with a sensor) can be supplied per order.

AFO 01.SCL is manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order. For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

Package contents

  • Stainless housing with cone
  • Electronics and control piezo-buttons
  • Water supply and electromagnetic valves
  • Flow cooler
  • Flexible hose outflow
  • Fixing and connecting material

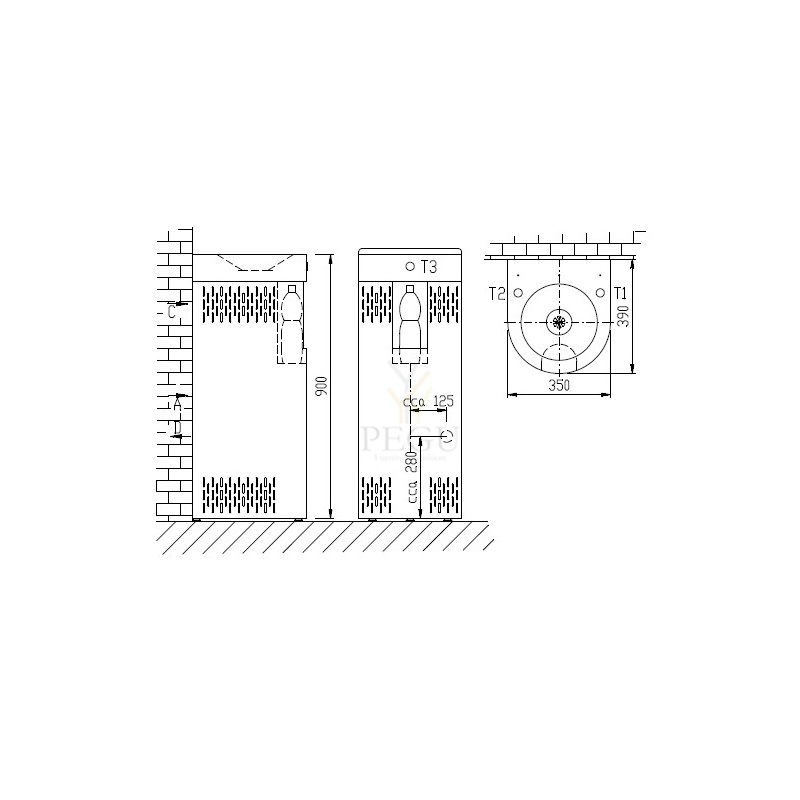

dimensions 330 x 900 x 365 mm
water outlet d = 40 mm
water inlet G 1/2"
water pressure 0,2 – 0,6 MPa, recommended 0,3 MPa
power supply 230 V, 50 Hz
power input 830 W
weight 25 kg



  • Set up water outlet d = 40 mm
  • Set up water inlet G 1/2"
  • Electric socket 230 V, or set up electric cable CYKY 3C x 1,5
Sarnased tooted

Delabie WC pott INVA Monobloco 700 R/V teras

DESCRIPTION

MONOBLOCO 700 PMR WC pan with cistern
Ref. 110790

Floor-standing WC pan with dual flush cistern 3L/6L, 370 x 895 x 700mm.
700mm elongated pan for better comfort for people with reduced mobility.
Bacteriostatic 304 stainless steel. Polished satin finish.
Stainless steel thickness: 1.5mm.
One-piece pressed WC bowl, seam-free for better hygiene.
WC bowl surface is polished with rounded edges for easy cleaning.
Concealed perimetral flushing rim. Water supply can be recessed from below or exposed from the side (right/left).
Recessed horizontal or vertical waste outlet. Supplied with PVC pipe.
Pre-drilled holes for fixing the toilet seat. Supplied with stainless steel blanking caps when installed without toilet seat lid.
Quick to install: 2 access panels with theft prevention TORX security screws.
CE marked. Complies with European standard EN 997 for 4L flush.
Weight: 22kg.
10-year warranty.

TECHNICAL FEATURES

MONOBLOCO 700 PMR WC pan with cistern
Ref. 110790

Height 895mm
Length 700mm
Width 370mm
Thickness 1.5mm
Finish Polished satin 304 stainless steel


Tootekood: DE-110790 ,   Tarneaeg: 7 nädalad
2519,10 € (10%)
2799,00 €
Tootekood: 461760 ,   Tarneaeg: 7-14 päeva
391,40 € (5%)
412,00 €
WC poti raam loputuskastiga , antivandaalse R/V teras katega


BSAZ 5

Wall module construction for WC with vandal-resistant st.steel cover






BSAZ 5 is a wall module for wall mounted toilets equipped with anti-vandal stainless steel cover – with resistant stainless safety buttons. The cover is screwed by security bolts therefore it cannot be dismounted without special tools. The system is suitable for spaces where toilet flushing from a cistern is required but where, on the other hand, there is a threat of damaging of usual plastic covers. The robust anti-vandal stainless cover contains stainless control buttons resistant to damage (unlike the usual plastic buttons).



The cover of BSAZ 5 is manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order. For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).








Version types
BSAZ 5 - Wall module construction for WC with vandal-resistant st.steel cover


Basic technical information
Dimensions of wall module: (1000–1200) × 510 × (160–200) mm
Dimensions of st.steel cover: 510 × 230 × 30 mm
Water inlet: G 1/2"
Outlet: DN 100


Requirements for setting up the construction
  1. Space for mounting the wall module
  2. Water inlet G 1/2"
  3. Waste pipe for outlet connection (DN 100)


Complete delivery
  • wall module with cistern
  • st.steel cover with vandal-proof buttons

Tootekood: AZP-BSAZ 5 ,   Tarneaeg: 3-4 nädalad
1055,00 €

Stainless steel rectangular mirror, H. 500mm
Ref. 3452

Depth 10mm
Length Unbreakable mirror
Width 385mm
Drop height 485mm
Finish "Mirror" polished 304 stainless steel
Tootekood: DE-3452 ,   Tarneaeg: 7-21 päeva
247,50 € (10%)
275,00 €

> Working pressure: 1 to 5 bar

> Flow: 3 l/min at 3 bars - 4-position setting Anti water-hammer system

> Flow time: 15 seconds - lever upwards or downwards

> Hydraulic supply: 2 PEX hoses DN8 G3/8'' - 350mm

> Thermal resistance: This tap can withstand a thermal shock of 75°C for 30 minutes as part of a thermal shock programme

> Safety: With temperature limiter (at 38°C for cold water at 15°C/3 bar and hot water at 60°C/3 bar)

> Convenience: Soft-touch Two-coloured ergonomic lever, in glass fiber reinforced polymer

> Delivered with: 2 PEX hoses with swivel nut and NF check valves 1 base gasket 2 MM 3/8'' (12x17) stop valves 2 Filter gaskets 1 Fixing bracket > Standards / Approvals: Chrome-plated brass body compliant with standards NF EN1982 / NF EN12164 / NF EN12165 Nickel-Chrome surface treatment compliant with NF EN12540 Neutral Salt Spray (NSS) resistant: 200 h according to NF ISO 9227

Tootekood: P68050 ,   Tarneaeg: 7-14 päeva
328,70 € (5%)
346,00 €
