Keraamiline HOME pissuaar Alessi LAUFEN radariga Sanela, 24V DC
Keraamiline HOME pissuaar Alessi LAUFEN radariga Sanela, 24V DC
SLP 25R

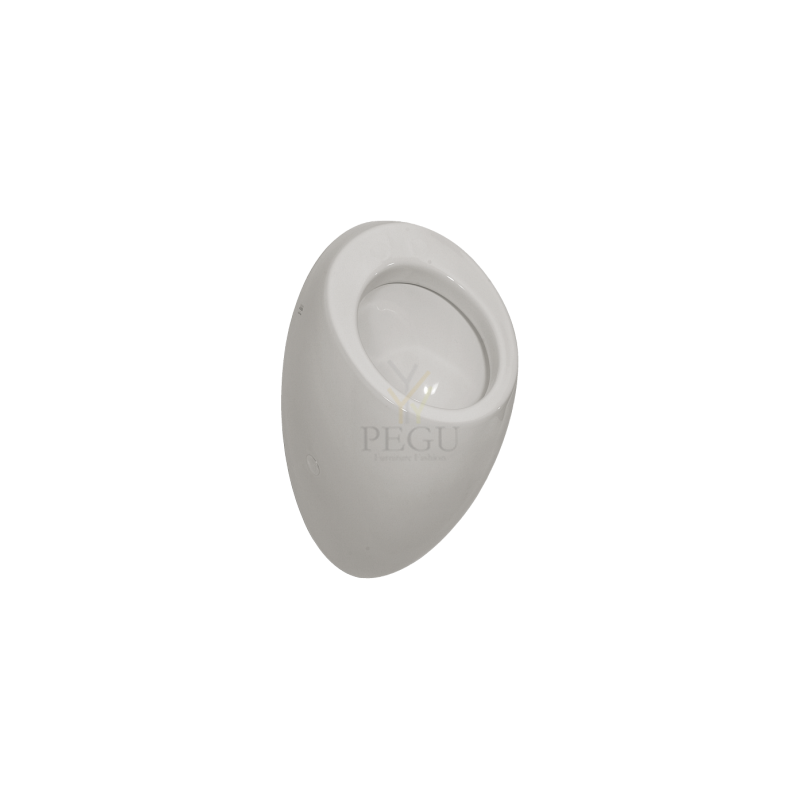

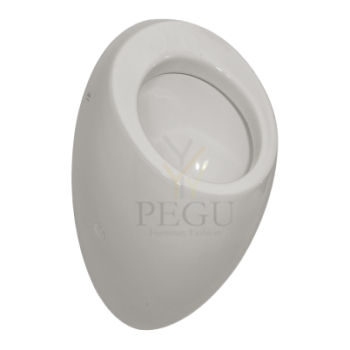

Urinal Alessi with a radar flushing unit, 24 V DC
Characteristics
- easy installation
- whole flushing unit is placed behind the urinal
- system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
- adjustable flushing time 0,5 - 15,5 s
- parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
- automatic flushing after each 6 hours non-use
- possibility to regulate a water flow by the angle valve
- radar flushing unit recharges a water to the siphon after each flushing
Order number | 01254 |
Code | SLP 25R |
Supply specification
Technical information
Operating voltage: 24 V DC
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 3/4“
Water outlet: inlet fitting with a rubber sealing
Video
Adapter 220/24V DC 1-2 segistile, 1-3 pissuaare
Dimensions: cca 140 x 100 x 62 mm
Input voltage: 230V AC/50Hz
Output voltage: stabilized 24V DC
IP code: IP 55
Automatic washbasin taps and shower controls supply: 2 valves max.
Automatic urinal flushing units supply: 5 valves max.
Automatic toilet flushing unit supply: 4 valves max.Dimensions: cca 140 x 100 x 62 mm
Input voltage: 230V AC/50Hz
Output voltage: stabilized 24V DC
IP code: IP 55
Automatic washbasin taps and shower controls supply: 2 valves max.
Automatic urinal flushing units supply: 5 valves max.
Automatic toilet flushing unit supply: 4 valves max.
