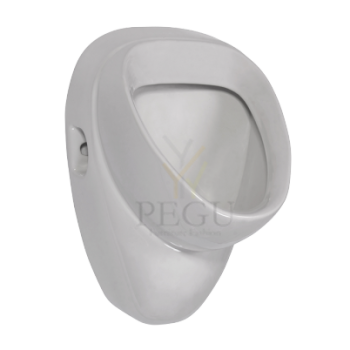

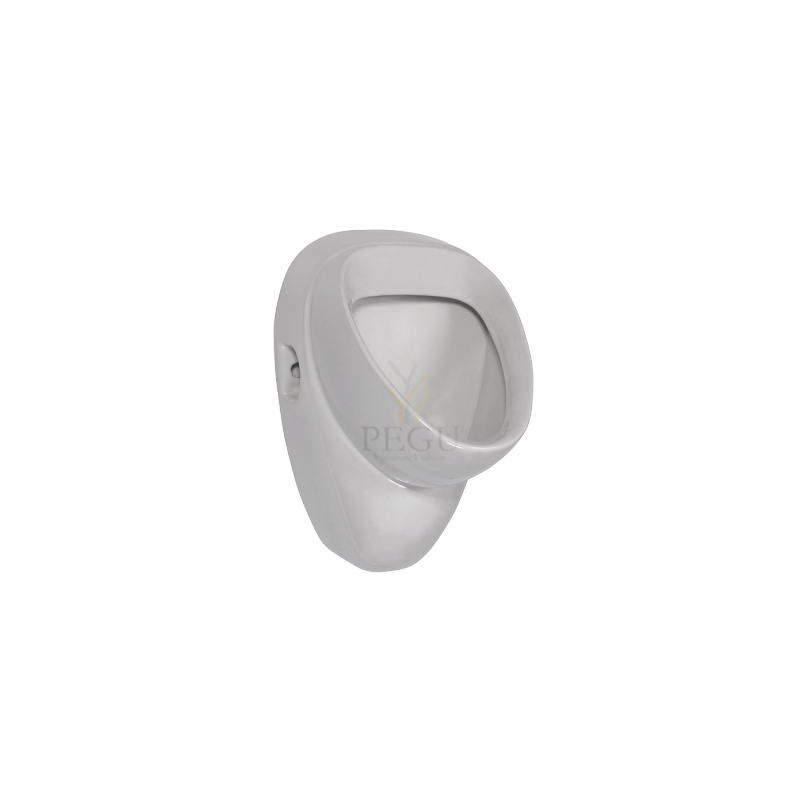

Keraamiline pissuaar Roca Zoom radariga Sanela, integreeritud adapter 230V/ AC

Tootekood: SA-SLP35RZ
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Hind: 976,00 €
878,40 €
Kuumakse alates: 75,02 €
Kogus: - +
   - või -

Keraamiline pissuaar Roca Zoom radariga Sanela,  integreeritud adapter 230V/ AC

SLP 35RZ



Urinal Roca Zoom with a radar flushing unit and integrated power supply, 230 V AC



Characteristics

  • economy flushing by 1 liter of water
  • easy installation by the help of paper drill template
  • whole flushing unit is placed behind the urinal
  • system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
  • adjustable flushing time 0,5 - 15,5 s
  • parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
  • automatic flushing after each 6 hours non-use
  • possibility to regulate a water flow by the ball valve
  • radar flushing unit recharges a water to the siphon after each flushing
Code SLP 35RZ
Order number 01355


Supply specification

SLP 35RZ - Supply No. 01355 - ceramic urinal with the radar flushing unit on the mounting rail, electromagnetic valve, connecting hoses, angle valve with filter and check valve, inlet fitting with a rubber sealing, siphon, paper drill template, power supply

Technical information

Operating voltage: 230 V AC/50 Hz
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 1/2“
Water outlet: inlet fitting with a rubber sealing

Video



Failid

Kokku sobivad tooted

Adapter 220/24V DC 1-2 segistile, 1-3 pissuaare

Dimensions: cca 140 x 100 x 62 mm
Input voltage: 230V AC/50Hz
Output voltage: stabilized 24V DC
IP code: IP 55
Automatic washbasin taps and shower controls supply: 2 valves max.
Automatic urinal flushing units supply: 5 valves max.
Automatic toilet flushing unit supply: 4 valves max.Dimensions: cca 140 x 100 x 62 mm
Input voltage: 230V AC/50Hz
Output voltage: stabilized 24V DC
IP code: IP 55
Automatic washbasin taps and shower controls supply: 2 valves max.
Automatic urinal flushing units supply: 5 valves max.
Automatic toilet flushing unit supply: 4 valves max.

Tootekood: SA-SLZ01Y ,   Tarneaeg: 14 päeva
129,00 €
