Keraamiline pissuaar Vila ilma kaaneta, radariga, 230 V/ AC
Keraamiline pissuaar Vila ilma kaaneta, radariga, 230 V/ AC
SLP 12RZ

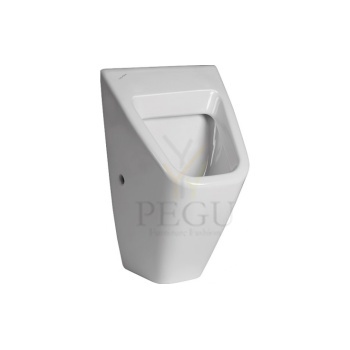

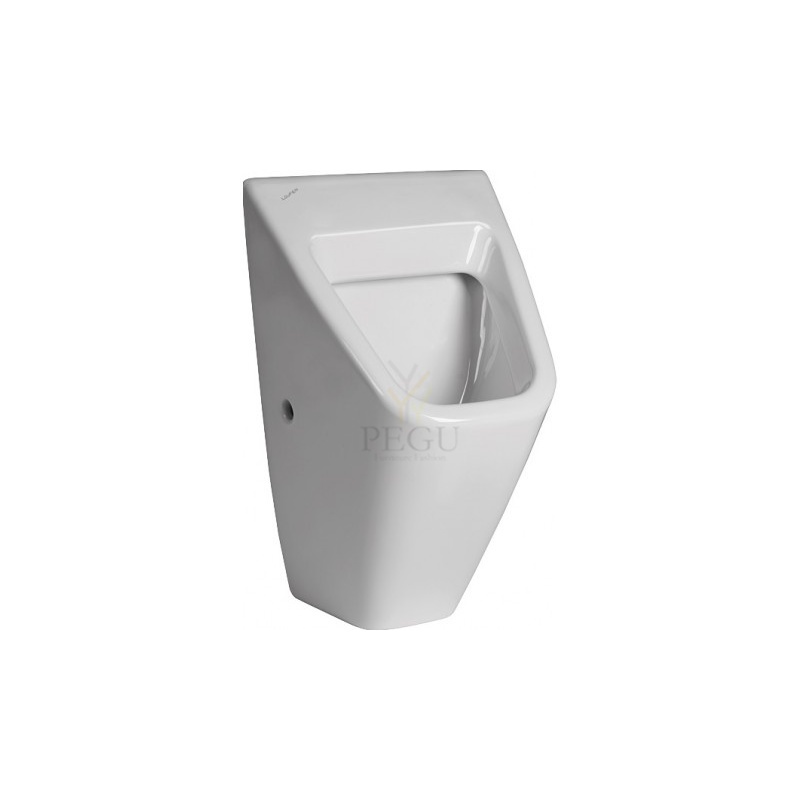

Urinal Vila without cover with a radar flushing unit and integrated power supply, 230 V AC
Characteristics
- economy flushing by 1 liter of water
- easy installation
- whole flushing unit is placed behind the urinal
- system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
- adjustable flushing time 0,5 - 15,5 s
- parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
- automatic flushing after each 6 hours non-use
- water flow could be regulated by ball valve
- radar flushing unit recharges a water to the siphon after each flushing
Order number | 01125 |
Code | SLP 12RZ |
Supply specification
Technical information
Operating voltage: 230 V AC/50 Hz
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf.data)
Water inlet: male thread G 3/4“
Water outlet: inlet fitting with a rubber sealing
Video
PA001 alumine osa allajooksuga
Pa010.BI loputuskast
BA005 kroomitud toru
BA003 mehhanism kroomitud ketiga
PA144 tume puit iste soft-close
Valamu Globo Paestun PA057.BI
1auk, (võiks teha 3)
Kollektiivne pissuaari renn 2400 mm roostevabast terasest
2318,00 €
WC pott Genesis:
tagajooksuga vaas+loputuskast+soft-close iste
Radariga loputussüsteem pissuaarile Nova, Renova, Nova Top, integreeritud adapter 230 V AC
SLP 07Z
Radar flushing unit on the mounting rail, 230 V AC
Characteristics
- radar flushing unit for urinals NOVA PRO FELIX 26 000; RENOVA Nr. 1 235 300; NOVA PRO ALEX 66 000; NOVA PRO M36 000; RENOVA Nr. 1 PLAN 235 100 (Kolo)
- economy flushing by 1 liter of water
- easy installation by the help of paper drill template
- whole flushing unit is placed behind the urinal
- system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
- adjustable flushing time 0,5 - 15,5 s
- parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
- automatic flushing after each 6 hours non-use
- possibility to regulate a water flow by the angle valve
- radar flushing unit recharges a water to the siphon after each flushing
Order number | 01071 |
Code | SLP 07Z |
Supply specification
Technical information
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 1/2“
Water outlet: inlet fitting with a rubber sealing
709,00 €
