Tööorgan laborikraanile Broen-Lab 19760002.png Zoom

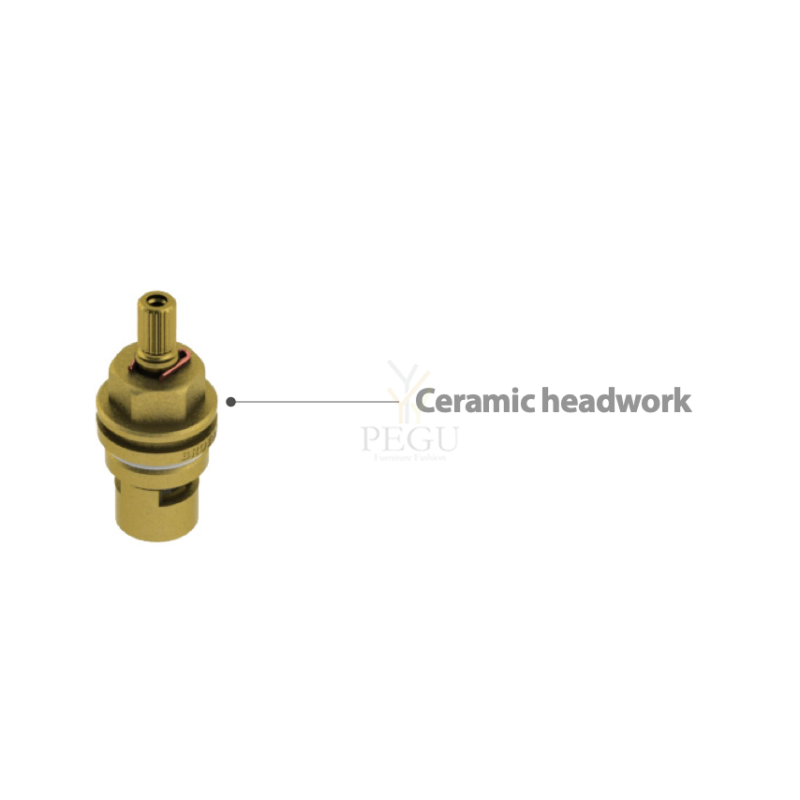

Keraamiline tööorgan veekraanile BROEN-LAB UniFlex

Tootekood: BR-1976000
Kaubamärk:
Ühik: tk
Tarneaeg: 2-3 nädala
Hind:
55,00 €
Kuumakse alates: 4,68 €
Kogus: - +
   - või -

Keraamiline tööorgan veekraanile BROEN-LAB UniFlex

ref.1976000

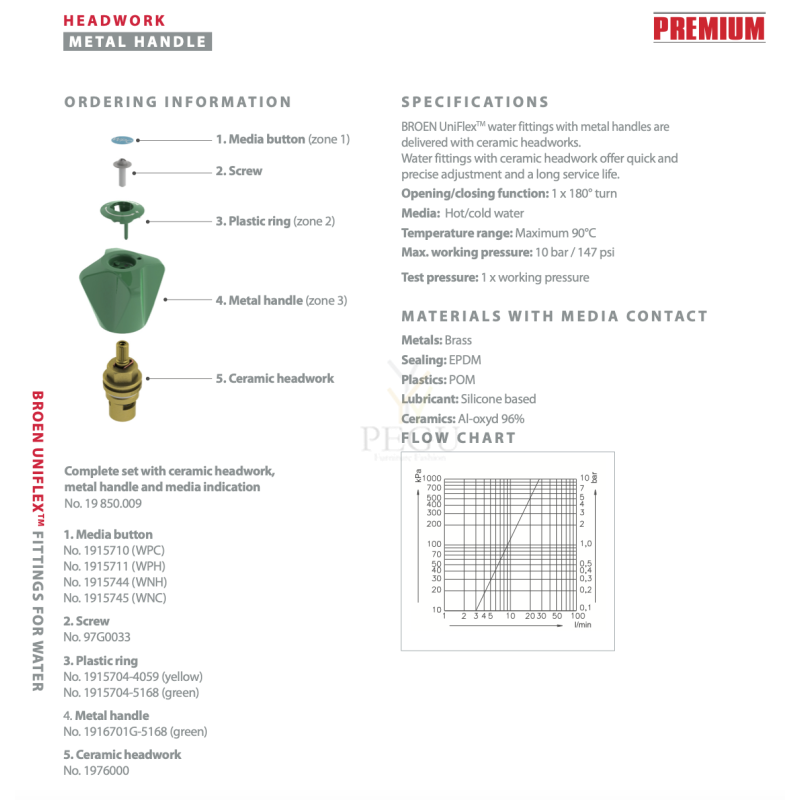

METALLKÄEPIDE
S P E C I F I K AT S I O O N I D

BROEN-LAB UniFlex™ metallist veesegistid metallkäepidemetega on varustatud keraamiliste 180° pöördega peaosadega.
Keraamiliste peaosadega segistid võimaldavad kiiret ja täpset reguleerimist ning pikaajalist töökindlust.

Avamise/sulgemise funktsioon: 1 x 180° pööre
Kasutusala: Kuum/külm vesi
Temperatuurivahemik: Maksimaalselt 90°C
Maksimaalne töörõhk: 10 bar / 147 psi
Testirõhk: 1 x töörõhk

MATERJALID, MIS PUUTUVAD KOKKU MEEDIASTA

  • Metallid: Messing
  • Tihendid: EPDM
  • Plastik: POM
  • Määrdeaine: Silikoonil põhinev
  • Keraamika: 96% alumiiniumoksiid



METAL HANDLE

S P E C I F I C AT I O N S

BROEN-LAB UniFlexTM Metal water fittings with metal handles are delivered with ceramic 180° turn headworks.
Water fittings with ceramic headwork offer quick and precise adjustment and a long service life.

Opening/closing function: 1 x 180° turn Media: Hot/cold water
Temperature range: Maximum 90°C Max. working pressure: 10 bar / 147 psi Test pressure: 1 x working pressure

MATERIALS WITH MEDIA CONTACT

Metals: Brass
Sealing: EPDM
Plastics: POM
Lubricant: Silicone based Ceramics: Al-oxyd 96%

Sarnased tooted
S P E C I F I CATIONS
The fitting is delivered with an integrated BALLOFIX® ball valve.
Handle: Metal, BROEN POLYCOAT powder coated
with media indication according to EN13792
Spout: Full swivel action
Hose nozzle: Removable metal
Headwork: Ceramic
Opening/closing function: 180° (wrist action lever: 90°)
Temperature range: 0-90°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 3 kg
MATERIALS WITH MEDIA CONTACT
Metals: Brass
Plastics: POM, PTFE, SPX (hose)
Sealing: EPDM
Lubricant: Silicone based
Ceramics: Al2O3 96%
Solder: DIN L-Ag55:Sn
ORDERING INFORMATION
For standard configuration please refer to the item
numbers below.
Other options:
- aerator
- fixed hose nozzle
- integrated non-return valve
- alternative hose inlet connection / without a hose
- other inlet options (type, length)
- national approvals
Tootekood: B-25360021039-52B ,   Tarneaeg: 3-4 päeva
365,00 €
BROEN-LAB fully recirculating fittings ensure constant fresh
water with no dead legs even when the point-of-use valve is in closed position.
The Tee-piece of the fitting should be connected to a loop with a constant circulation of water. For more details about installation, jointing methods, etc. please refer to page 22.
SPECIFICATIONS
Handle: Metal, BROEN-LAB POLYCOAT powder coated
with media indication according to EN13792
Hose nozzle: Removable plastic
Headwork: Diaphragm type
Opening/closing function: 1 1/2 x 360°
Temperature range: 0-65°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 1.8 kg
MATERIALS WITH MEDIA CONTACT
Diaphragm: PTFE
Plastics: PP, PP-n, PVDF
Rubber: EPDM
ORDERING INFORMATION
For standard configuration please refer to the item
numbers below.
Other options:
- also available in ABS (1, 11/4 , 11/2)
Tootekood: B-25330431036 ,   Tarneaeg: 14-21 päeva
595,00 €

S P E C I F I C AT I O N S
Handle: Metal, BROEN-LAB POLYCOAT powder coated

with media indication according to EN13792
Hose nozzle: Removable/external G3/4 thread, metalHeadwork: Diaphragm type
Opening/closing function: 1 1/2 x 360°Temperature range: 0-90°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 0.9 kg

MATERIALS WITH MEDIA CONTACT

Metals: Stainless Steel, AISI 316Diaphragm: PTFE
Rubber: EPDM

ORDERING INFORMATION

For standard configuration please refer to the item numbers below.

Tootekood: B-25330021036 ,   Tarneaeg: 14-21 päeva
379,00 €
S P E C I F I CATIONS
Handle: Metal, BROEN POLYCOAT powder coated
Spout: Swivel action
Hose nozzle: Aerator
Cartridge: Ceramic (temperature and flow regulation type)
Opening/closing function: 25°, mixing function: ±45°
Temperature range: 0°C - 90°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 2.4 kg
MATERIALS WITH MEDIA CONTACT
Metals: Brass
Plastics: POM, PTFE, SPX (hose)
Sealing: EPDM
Lubricant: Silicone based
Ceramics: Al2O3 96%
ORDERING INFORMATION
For standard configuration please refer to the item
numbers below.
Other options:
- removable hose nozzle
MOUNTING INFORMATION
Tootekood: B-25350381035-52B ,   Tarneaeg: 2-3 nädalad
615,00 €
Broen LAB Kangsegisti H-300mm, S-300mm

S P E C I F I CATIONS
Handle: Metal, BROEN POLYCOAT powder coated
Spout: Swivel action
Hose nozzle: Aerator
Cartridge: Ceramic (temperature and flow regulation type)
Opening/closing function: 25°, mixing function: ±45°
Temperature range: 0°C - 90°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 2.4 kg
MATERIALS WITH MEDIA CONTACT
Metals: Brass
Plastics: POM, PTFE, SPX (hose)
Sealing: EPDM
Lubricant: Silicone based
Ceramics: Al2O3 96%
ORDERING INFORMATION
For standard configuration please refer to the item
numbers below.
Other options:
- removable hose nozzle
MOUNTING INFORMATION
Tootekood: B-25350411035-52B ,   Tarneaeg: 2-3 nädalad
629,00 €
