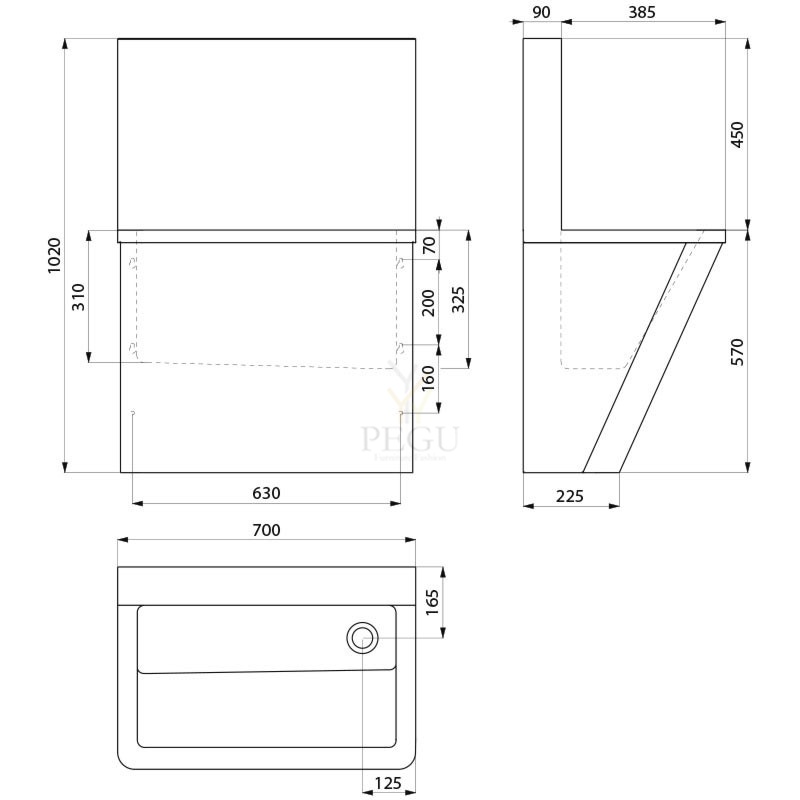

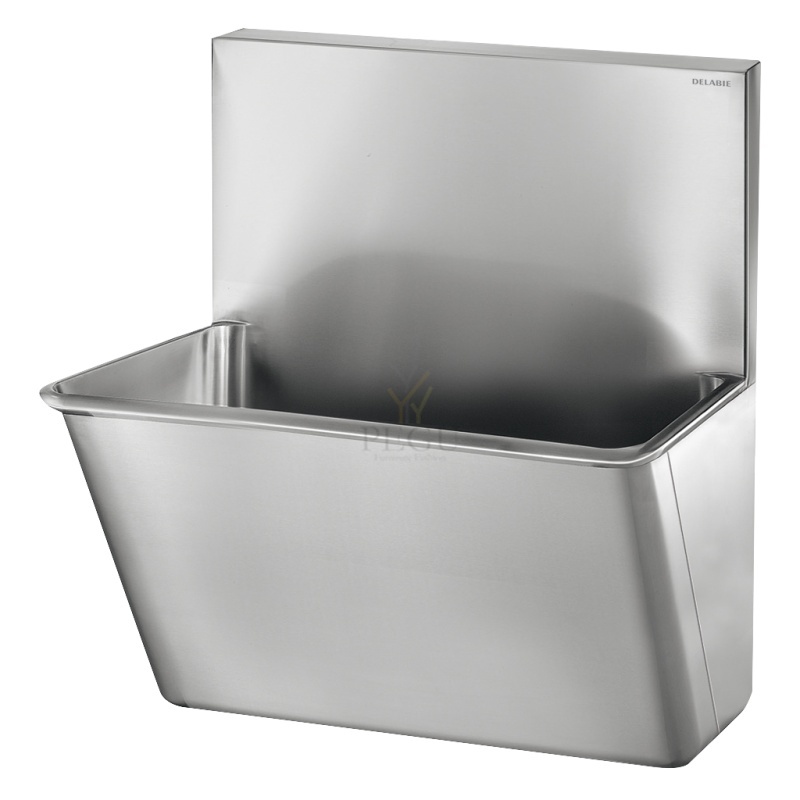

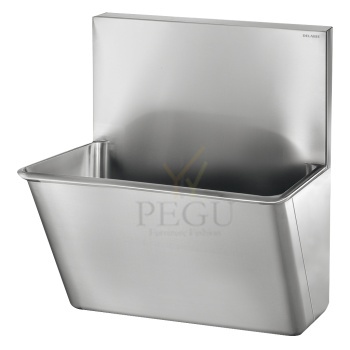

Kirurgiline valamu kõrge pritsmekaitsega pesurenn 700mm roostevaba teras satiin AISI304

Antivandaalne R/V teras piezo dušisi nupp, eelsegatud veele, ilma el.adaptorita

	AUS 11 Pressure button-controlled shower for heat regulated water

AUS 11 is a new type of shower fitting for single shower control. The fitting is designated for premixed water – with one water inlet and shower outlet elbow. Water is released and closed by an anti-vandal pressure button connected to electronics and an electromagnetic valve. The fitting is covered by a rust-free anti-vandal cover to prevent damage.

The mounting system has been designed so as to make removing the cover without using tools impossible with no bolt or screw being visible. The cover can be "pushed into" the wall level even if the mount box has been walled to an incorrect depth.

AUS 11 is identical to AUS 1P with a different design and very resistant cover sheet.

Electronics can work in two modes:

1) The button works on the START/STOP basis – water release/closing. If the water is not turned off upon the time adjusted by the user or manager (e.g. 20 seconds), the electronic system itself instructs water stopping. The user must press again to start water running. This significantly saves water as the user reduces the showering time.

2) The button works on the START/STOP basis. After the time adjusted by the manager (e.g. 3 minutes) expires there is a forced break when water cannot be released. During this time, the user is forced to leave the shower or wait. This prevents needless showering – water wasting.

Basic technical information
Water input:	G 1/2“
Water pressure:	1 - 10 Bar (0,1 – 1,0 MPa)
Time of water flow:	10 s – 42,5 min in mode 1
	0 s - 42,5 min in mode 2
Power supply:	12 V, 50 Hz
Power requirement:	6 VA
Source of power supplz:	ZAC 1/20 (max. 3× AUS 11)
	ZAC 1/50 (max. 8× AUS 11)
Weight:	2,0 kg

Requirements for setting up the construction
Water installation set up as per picture Set-up alcove 150 x 75 mm for installation casket Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC

Complete delivery
installation casket input and output bolting electromagnetic valve spherical valve covering metal plate with piezo button electronics

Made to order
SP 1 – shower arm with water flow of 9 l/min SP 2 – shower arm with water flow of 7 l/min SP 3 – shower arm with water flow of 7 l/min ZAC - source of power supply 12V, 50Hz

Figure

A -	water inlet G 1/2"
C -	electricity supply cable 12 V, 50 Hz
G -	water outlet into shower armG 1/2"

Download information about the product
AUS 11 data for projectants - ( 84 kB )

Tootekood: AZP-AUS 11 , Tarneaeg: 3-4 nädalad

375,00 €

Intra ICON valamu IC1 harjatud, alt paigaldamiseks

General

Size (mm):	525 x 334 x 97
Large bowl (mm):	500 x 310 x 83
Designer:	Halvor Thorsen

Description

Icon hand wash basin IC1-22 in stainless steel 18/10, is designed for under mounting.The hand wash basin is pressed in one piece and has laser-cut integrated outlet holes that are concealed by a removable outlet cover.The basin is supplied with waste. Without overflow.

Brushed finish.

Tootekood: I-IC1 32N , Tarneaeg: 14-21 päeva

439,00 €

Pissuaari mehhanism infra-red paigalduse karbiga, adaptoriga 230V/AC

SLP 02NZ

Urinal infra-red flushing unit with a mounting box and integrated power supply, 230 V AC

Characteristics

system reacts to the user attendance in front of the urinal at a maximum distance of 0,7 m, minimum stay time in active range is 7,5 s
water flows after the user leaves active range
adjustable flushing time 0,5 - 15,5 s
parameters adjustment by remote control SLD 03
automatic hygiene flushing after 24 hours non-use
possibility to regulate a water flow by the ball valve

Order number	42023
Code	SLP 02NZ

Supply specification

SLP 02NZ - Supply No. 42023 - stainless steel cover with electronics, plastic mounting box with brass screw coupling, electromagnetic valve and ball valve, power supply

Technical information

Stainless steel cover dimension: 170 x 170 x 10 mm
Mounting box dimension: 140 x 140 x 75 mm
Operating voltage: 230 V AC/50 Hz
Active range: 0,6 - 0,75 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 3/4“
Water outlet: male thread G 3/4“

Tootekood: SA-SLP02NZ , Tarneaeg: 14-21 päeva

415,00 €

Joogifontään seinale sensoriga R/V teras AISI304 6V(4x1.5V)

AFO 01.Yst. steel sensor controlled drinking fountain

AFO 01.Y is st. stainless wall hung drinking fountain controlled by sensor. Water runs after disrupting the scanning zone.

Fountain is made by welding all components together.

Fountain is suppplied with safety power 12 V, 50 Hz from power supply ZAC (AFO 01.Y) or with 4x AA battery (AFO 01.YB).

Material is standardly st. steel AISI 304 or can be AISI 316 (AFO 01.Y.CL or AFO 01.YB.CL).

St. steel driking fountain AFO 01.Y is based on favourite model AFO 01 with manual control.

The sensor, located on the right side of the fountain, is reacting on the approach of the user. Water starts to run from the nozzle, located in the middle of the fountain bowl, and runs over the time when the user´s head is in the scanning zone (max. 30 sec.) + preset time (max. 4 sec.) to clean the nozzle.

Package contents

st. steel drinking fountain
nozzle
sensor and electronic
electromagnetic valve
connecting flexible hose
corner valve with filters
siphon
mounting material

water inlet	G 1/2"
water pressure	1 - 10 Bar (AFO 01.Y; AFO 01.Y.CL)
	2 - 8 Bar (AFO 01.YB; AFO 01.YB.CL)
outlet	d = 40 mm
bowl inner dimension	d = 245 mm
weigth	4 kg
suppply	12 V, 50 Hz (AFO 01.Y; AFO 01.Y.CL)
	6 V - 4 x AA battery (AFO 01.YB; AFO 01.YB.CL)
power supply	ZAC 1/20 (max. 3 x AFO 01.Y ; AFO 01.Y.CL)

Tootekood: AZP-AFO01.YB , Tarneaeg: 3-4 nädala

927,00 €

Joogifontään veejahutussüsteemiga, pudeli taitmisega põrand/sein piezo nupp, R/V teras AISI304 230V/50Hz

AFO 01.SCL

drinking fountain with cooling and spout for filling bottles designed to stand and to be attached to wall

AFO 01.SCL is a drinking fountain with cooling and spout for filling bottles designed to stand and to be attached to wall. User can select between uncooled water and water running through a flow cooler. Uncooled water is used for bottle filling as a standard – can be changed. Start/stop control by piezo-buttons – resistant solution. Facility keeper can set a time period after which the water flow automatically stops.

The product contains a flow cooler. It is not a design with cooled tank only where – after the pre-cooled amount of water is pumped out – the user has to wait for the next charge to be cooled.

Water supply is provided by a flexible hose, trap comprises an elastic flexible couple. Flexible design of water supply and outflow allows variable and easy connection of the drinking fountain as well as its dismounting.

Automatic drinking fountain (with a sensor) can be supplied per order.

AFO 01.SCL is manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order. For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

Package contents

Stainless housing with cone
Electronics and control piezo-buttons
Water supply and electromagnetic valves
Flow cooler
Flexible hose outflow
Fixing and connecting material

dimensions	330 x 900 x 365 mm
water outlet	d = 40 mm
water inlet	G 1/2"
water pressure	0,2 – 0,6 MPa, recommended 0,3 MPa
power supply	230 V, 50 Hz
power input	830 W
weight	25 kg

Set up water outlet d = 40 mm
Set up water inlet G 1/2"
Electric socket 230 V, or set up electric cable CYKY 3C x 1,5

Tootekood: AZP-AFO01.SCL , Tarneaeg: 3-4 недели

5765,00 €
