448 x 1348 x 220 mm
1 paper roll / 48 l

• Combination consisting of a sensor paper roll dispenser (mains-operated) and a waste bin in robust, germ-reducing and easy-care stainless steel (AISI 304).
• All-stainless steel housing; all corners fully welded, visible surfaces satin finished and brushed.
  Further available surfaces: see below.
• Paper roll dispenser with touch-free operated, capacitive sensor technology, sensor distance approx. 3.5 cm. Paper length and idle time adjustable.
  Mains-operated 230 V / 50 Hz; power rating 7 Watt; mains cable on site. TÜV/GS-tested and certified.
• Designed for one paper roll with dimensions:
  Width 215 mm, outer diameter max. 180 mm, inner diameter 50 mm.
• Inspection slot to indicate fill level, residual roll function allows a reserve roll to be inserted before residual roll is completely used up.
• Waste bin equipped with removable mesh basket.
  Capacity approx. 48 l.
• Accessible through lockable doors.
• Keyed alike cylinder locks in corrosion-resistant zinc die-casting.
• Wear parts and front panels can be replaced as modules.
• Installation dimensions: 450 x 1350 x 210 mm (when fully fitted).
• Mounting: With six screws in wall opening through fixing holes in the side walls.
• Delivery includes fixing material and first fill with one paper roll.

• Weight (in kg): 25,8

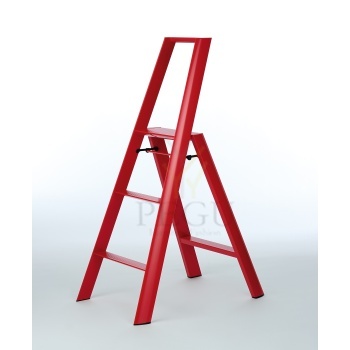

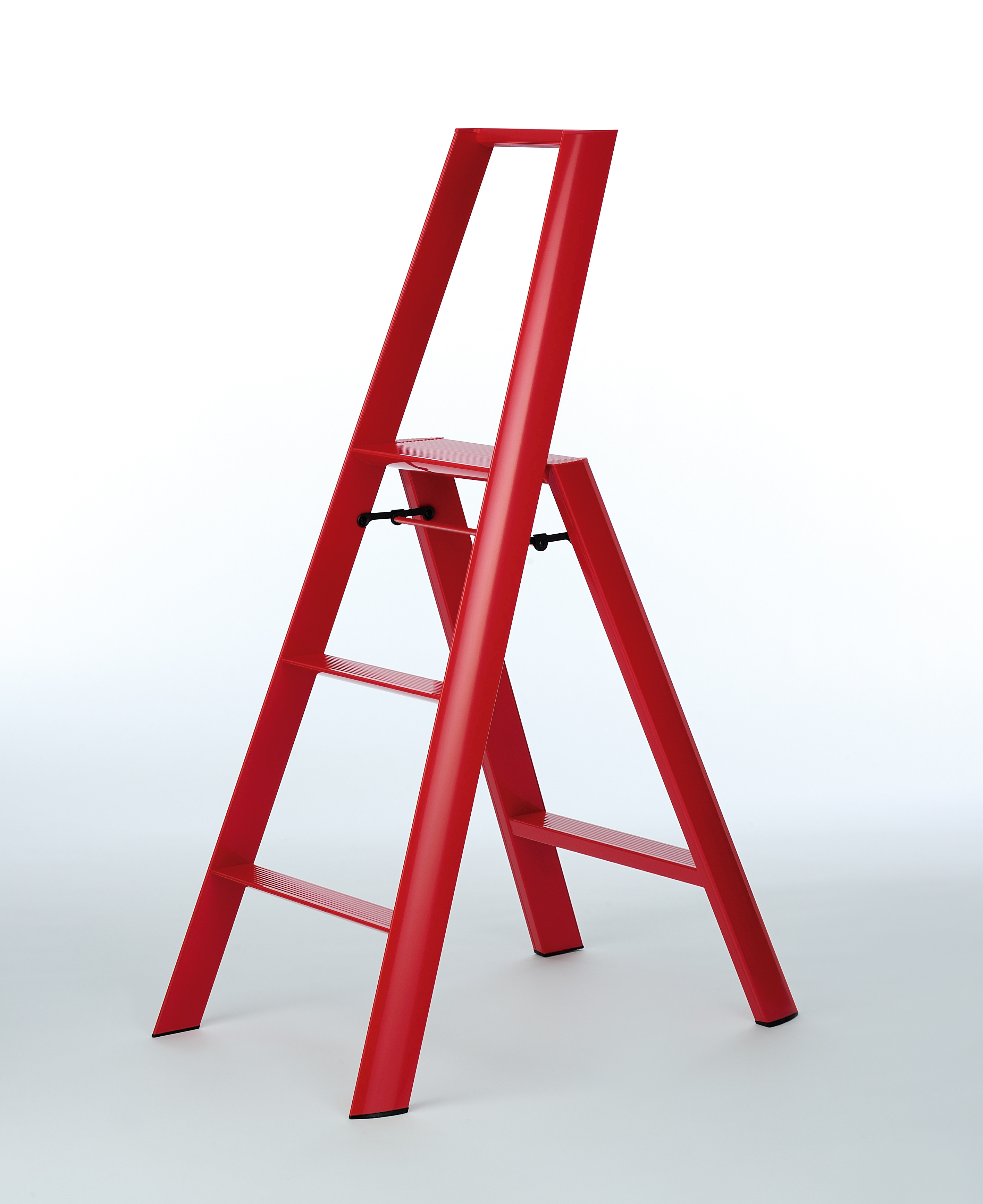

Kaheastmeline kokkupandav treppredel Hasegawa punane
