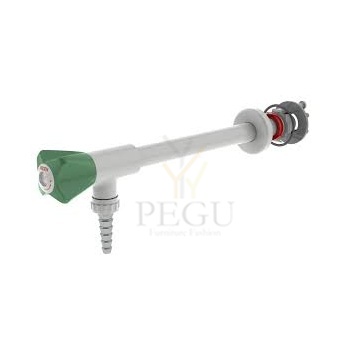

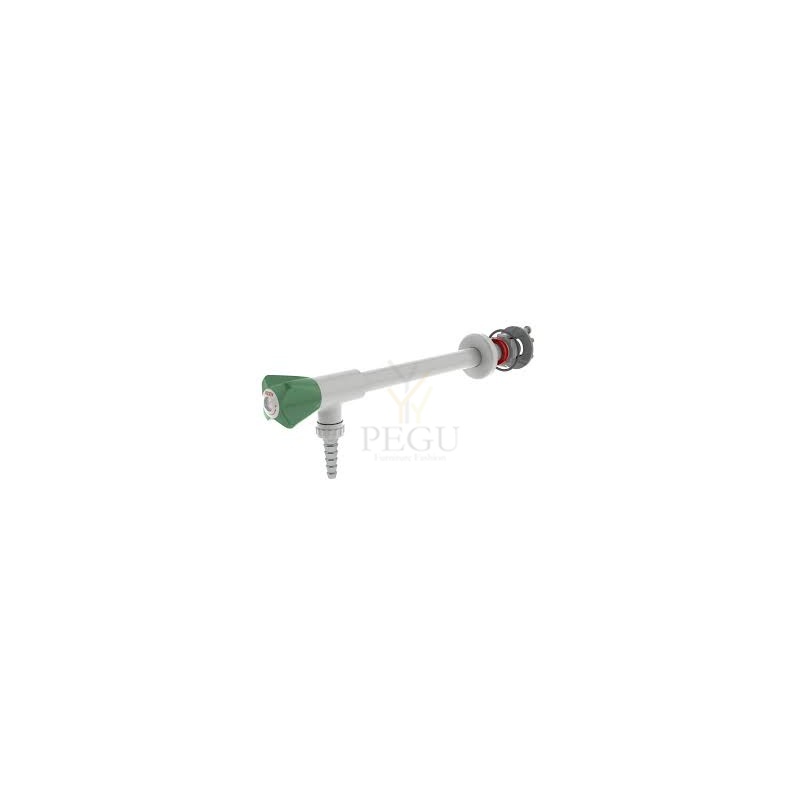

Broen Lab Kraan deioniseeritud vesi S150mm, seinast WDC
S P E C I F I C AT I O N S
Handle: Metal, BROEN-LAB POLYCOAT powder coated
with media indication according to EN13792

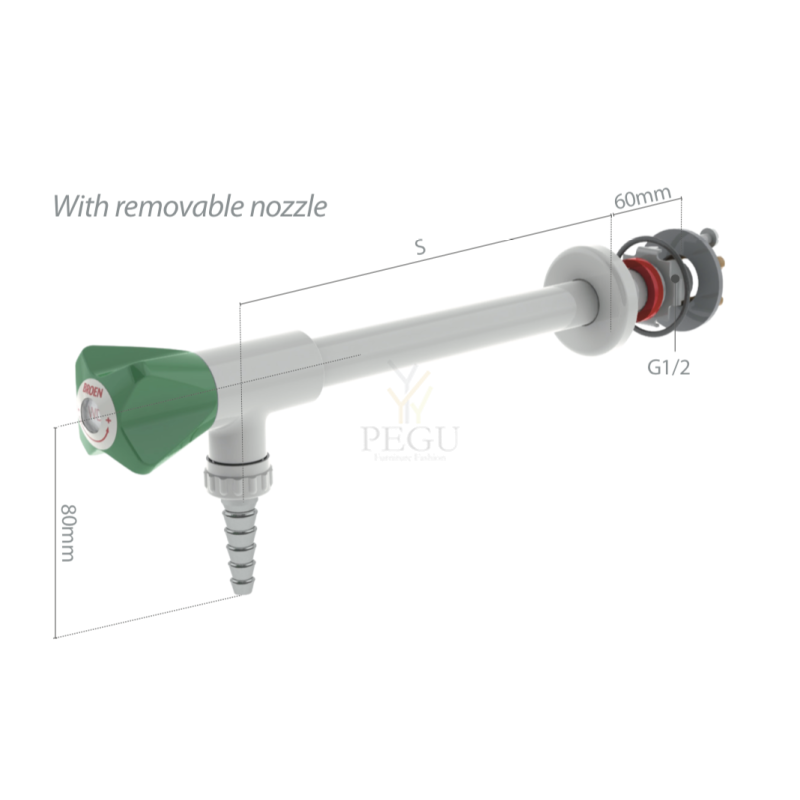

Hose nozzle: Removable/external G3/4 thread, metalHeadwork: Diaphragm type
Opening/closing function: 1 1/2 x 360°Temperature range: 0-90°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 0.9 kg
MATERIALS WITH MEDIA CONTACT
Metals: Stainless Steel, AISI 316Diaphragm: PTFE
Rubber: EPDM
ORDERING INFORMATION
For standard configuration please refer to the item numbers below.
SOS dušš, seinale kinnituv 3/4"
567,30 €
Wall mounted double eye wash
Wall mounted eye shower with a two 45° angled heads, incl. 1.5m inlet hose.
Trigger operated including a built-in check valve and FLOWFIX for regulation of water flow (14 l/min).
Description
Wall Mount Double Eye Wash
SAFETY
Improved trigger lock
Improved activation of the shower
OPERATION
Stay-open dust cap
Light weight
Well-balanced construction
Better spray pattern
RELIABILITY
Easy-to-clean spray head
Anti-limescale design and material choice
Improved functionality
Longer lifetime
Eye wash and safety shower combination
Ref. 9203
Free-standing eye wash and safety shower combination with manual or foot control includes:
Frost-free system as standard.
304 stainless steel basin Ø 250mm with green finish.
Eye wash spray heads fitted with protective caps in shock-resistant green ABS; will eject automatically when activated.
Flow rate 20 lpm at 3 bar, aerators have stainless steel double filters.
Circular shower head Ø 250mm in green, shock-resistant ABS.
Flow rate 70 lpm at 1 bar dynamic pressure (120 lpm at 3 bar dynamic pressure).
Water supply F1".
Pipework made from galvanised steel, grey powder-coated finish. Triangular pull handle in green powder-coated brass. Hand and foot controls in green powder-coated galvanised steel.
Fixed to the floor by a brass base plate (screws not included).
Supplied with identification signs for first aid equipment: "Safety Shower" and "Eye Wash".
Operation:
1/4-turn, nickel plated brass valves open and close quickly.
Simultaneous Eye Wash and Shower:
Water flows simply by pulling on the triangular handle.
The flow will continue even when the handle is released.
The flow will stop when the handle is returned to its original position.
Eye Wash only:
Water flow is operated by the foot pedal or the hand control. The eye wash will continue to flow when the pedal or hand control is released.
The water flow will stop when the hand control is pulled towards the user or the foot pedal is raised.
10-year warranty.
The water does not shut off automatically, allowing the injured person to have both hands free (to remove their clothing, keep their eyes open, etc.).
TECHNICAL FEATURES
Eye wash and safety shower combination
Ref. 9203
Supply | F1" |
---|---|
Height | 2207mm |
Length | 660mm |
Drop height | 2115mm |
Flow rate | 120 lpm at 3 bar dynamic pressure |
Wall-mounted safety shower
Ref. 9108
Wall-mounted safety shower with manual control includes:
Frost-free system as standard.
Circular shower head Ø 250mm in green, shock-resistant ABS.
1/4-turn, nickel-plated brass valve opens and closes quickly.
Water flows simply by pulling on the triangular handle.
The flow will continue even when the handle is released.
The flow will stop when the handle is returned to its original position.
Flow rate 70 lpm at 1 bar dynamic pressure (120 lpm at 3 bar dynamic pressure).
Water supply F1".
Pipework made from galvanised steel, grey powder-coated finish. Triangular pull handle in green powder-coated brass.
Supplied with identification sign for first aid equipment: "Safety Shower".
For cross wall installation, with recessed supply, or for mounting on a false ceiling (we recommend a 1" mounting bracket).
TECHNICAL FEATURES
Wall-mounted safety shower
Ref. 9108
Supply | F1" |
---|---|
Height | 450mm |
Length | 625mm |
Flow rate | 120 lpm at 3 bar dynamic pressure |
Finish | Epoxy |
Free-standing eye wash station
Ref. 9201
Free-standing eye wash station with manual and pedal control includes:
Frost-free system as standard.
304 stainless steel basin Ø 250mm, green powder-coated finish.
2 eye wash spray heads fitted with protective caps in shock-resistant green ABS; will eject automatically when activated.
1/4-turn, nickel-plated brass valves open and close quickly.
Water flow is activated by hand or foot control. The eye wash will continue to operate when the hand or foot control is released. The flow stops when the hand control is pulled towards the user or the foot pedal is raised.
Flow rate 20 lpm at 3 bar.
Aerators with stainless steel double filters.
Water supply F1".
Pipework made from galvanised steel, grey powder-coated finish.
Hand and foot controls in green powder-coated galvanised steel.
Fixed to the floor by a triangular brass plate (screws not included.)
Supplied with identification sign for first aid equipment: "Eye Wash".
TECHNICAL FEATURES
Free-standing eye wash station
Ref. 9201
Height | 1050mm |
---|---|
Depth | 500mm |
Flow rate | 20 lpm |
Finish | Epoxy |
