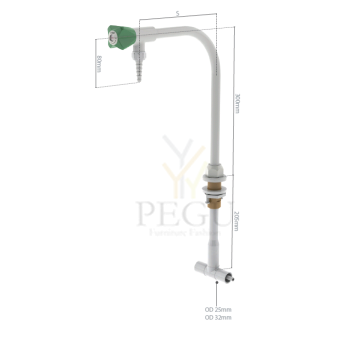

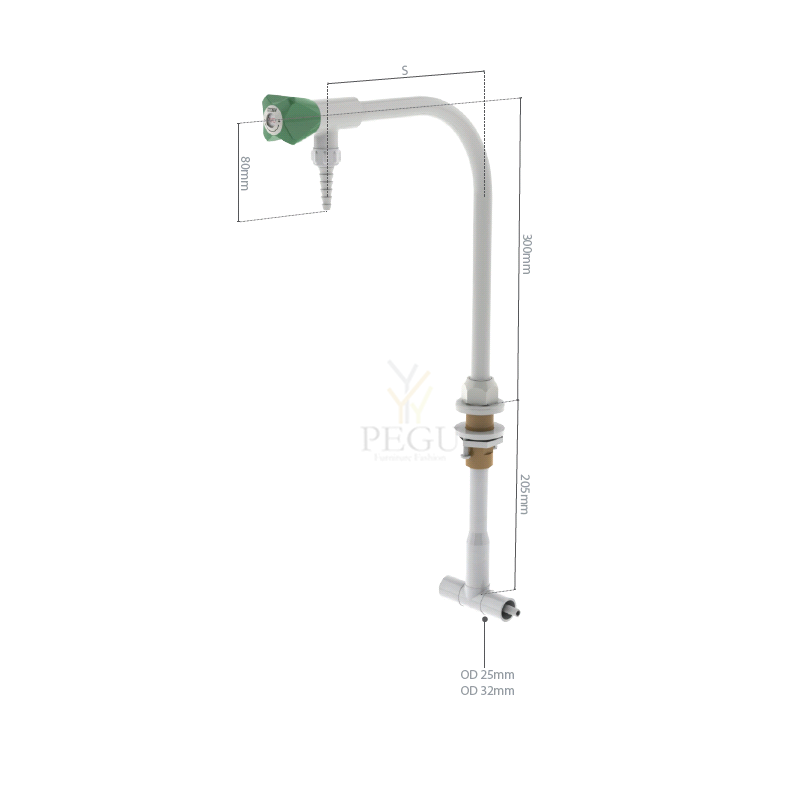

Kraan destilleeritud vesi S150mm, recirkulatsioon d25mm WDI

Tootekood: B-25330431003
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Hind: 599,00 €
539,10 €
Kuumakse alates: 45,82 €
Kogus: - +

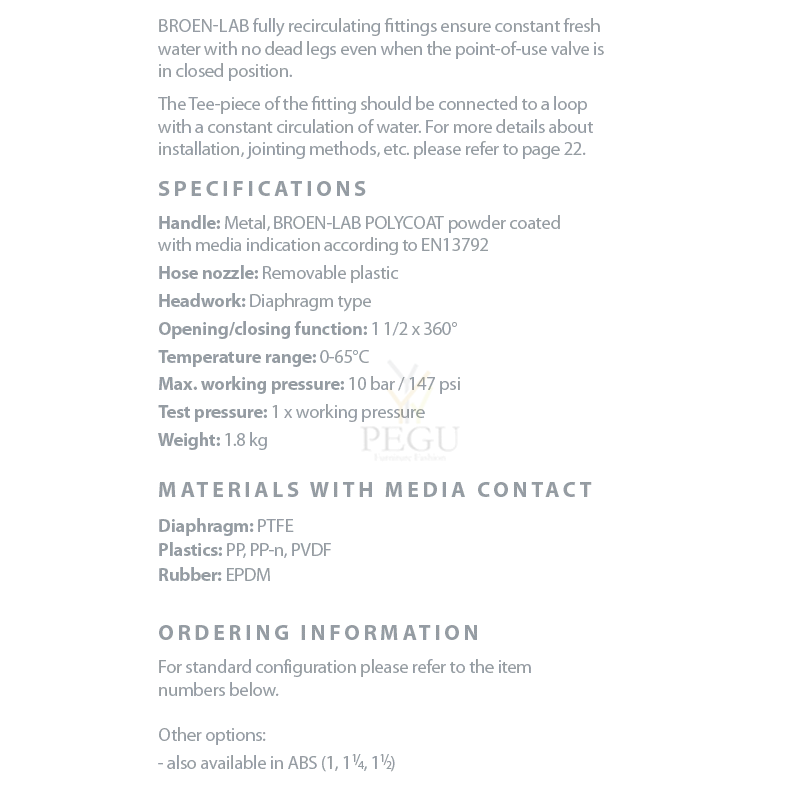

BROEN-LAB fully recirculating fittings ensure constant fresh
water with no dead legs even when the point-of-use valve is in closed position.
The Tee-piece of the fitting should be connected to a loop with a constant circulation of water. For more details about installation, jointing methods, etc. please refer to page 22.
SPECIFICATIONS
Handle: Metal, BROEN-LAB POLYCOAT powder coated
with media indication according to EN13792
Hose nozzle: Removable plastic
Headwork: Diaphragm type
Opening/closing function: 1 1/2 x 360°
Temperature range: 0-65°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 1.8 kg
MATERIALS WITH MEDIA CONTACT
Diaphragm: PTFE
Plastics: PP, PP-n, PVDF
Rubber: EPDM
ORDERING INFORMATION
For standard configuration please refer to the item
numbers below.
Other options:
- also available in ABS (1, 11/4 , 11/2)
Sarnased tooted
S P E C I F I CATIONS
The fitting is delivered with an integrated BALLOFIX® ball valve.
Handle: Metal, BROEN POLYCOAT powder coated
with media indication according to EN13792
Spout: Full swivel action
Hose nozzle: Removable metal
Headwork: Ceramic
Opening/closing function: 180° (wrist action lever: 90°)
Temperature range: 0-90°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 3 kg
MATERIALS WITH MEDIA CONTACT
Metals: Brass
Plastics: POM, PTFE, SPX (hose)
Sealing: EPDM
Lubricant: Silicone based
Ceramics: Al2O3 96%
Solder: DIN L-Ag55:Sn
ORDERING INFORMATION
For standard configuration please refer to the item
numbers below.
Other options:
- aerator
- fixed hose nozzle
- integrated non-return valve
- alternative hose inlet connection / without a hose
- other inlet options (type, length)
- national approvals
Tootekood: B-25360011039-52B ,   Tarneaeg: 3-4 päeva
323,10 € (10%)
359,00 €
S P E C I F I CATIONS
The fitting is delivered with an integrated BALLOFIX® ball valve.
Handle: Metal, BROEN POLYCOAT powder coated
with media indication according to EN13792
Spout: Full swivel action
Hose nozzle: Removable metal
Headwork: Ceramic
Opening/closing function: 180° (wrist action lever: 90°)
Temperature range: 0-90°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 1.4 kg
MATERIALS WITH MEDIA CONTACT
Metals: Brass
Plastics: POM, PTFE, SPX (hose)
Sealing: EPDM
Lubricant: Silicone based
Ceramics: Al2O3 96%
ORDERING INFORMATION
For standard configuration please refer to the item
numbers below.
Other options:
- aerator
- fixed hose nozzle
- integrated non-return valve
- fixed spout
- alternative hose inlet connection / without a hose
- other inlet options (type, length)
- national approvals
- WPH (Water Potable Hot)
- WNH (Water Non-Potable Hot)
Tootekood: B-25340011001-52B ,   Tarneaeg: 3-7 päeva
225,00 € (10%)
250,00 €
Ögondusch för infällning i vägg

Ögon/ansiktsdusch med uppsamlingskärl för inbyggnad i vägg
Alla delar är ytbehandlade med BROEN-LABs POLYCOAT som inte bara gör att ögon-& ansiktsduschen syns väldigt bra, den står även emot de flesta kemikalier, UV blekning och värme. Utrustad med FLOWFIX som gör spolbilden stadig i varierande vattentryck.

• Min. arbetstryck: 1,5 bar
• Väggmontage
• POLYCOAT står emot de flesta kemikalier
• FLOWFIX: 14 l/min
• 2-sidig efterlysande skylt, dekal & testkort
• Vikt: ca. 8 kg
• Anslutning: inv. DN15
• Avlopp: 1 1/2"
• Inbyggnaddjup: 90 mm

Kontakta oss för ritning!

Artikel nummer: 17 150 009

Tootekood: B-17150009 ,   Tarneaeg: 3-4 nädalad
2137,50 € (10%)
2375,00 €

Wall mounted double eye wash

Wall mounted eye shower with a two 45° angled heads, incl. 1.5m inlet hose.

Trigger operated including a built-in check valve and FLOWFIX for regulation of water flow (14 l/min).



Description

Wall Mount Double Eye Wash

SAFETY

Improved trigger lock

Improved activation of the shower

OPERATION

Stay-open dust cap

Light weight

Well-balanced construction

Better spray pattern

RELIABILITY

Easy-to-clean spray head

Anti-limescale design and material choice

Improved functionality

Longer lifetime

Tootekood: B-27100091003011 ,   Tarneaeg: 14-21 päeva
440,10 € (10%)
489,00 €
S P E C I F I CATIONS
Handle: Metal, BROEN POLYCOAT powder coated
Spout: Swivel action
Hose nozzle: Aerator
Cartridge: Ceramic (temperature and flow regulation type)
Opening/closing function: 25°, mixing function: ±45°
Temperature range: 0°C - 90°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 2.4 kg
MATERIALS WITH MEDIA CONTACT
Metals: Brass
Plastics: POM, PTFE, SPX (hose)
Sealing: EPDM
Lubricant: Silicone based
Ceramics: Al2O3 96%
ORDERING INFORMATION
For standard configuration please refer to the item
numbers below.
Other options:
- removable hose nozzle
MOUNTING INFORMATION
Tootekood: B-25350421035-52C ,   Tarneaeg: 2-4 nädalad
710,10 € (10%)
789,00 €
