Tootegrupid
08210.jpg Zoom

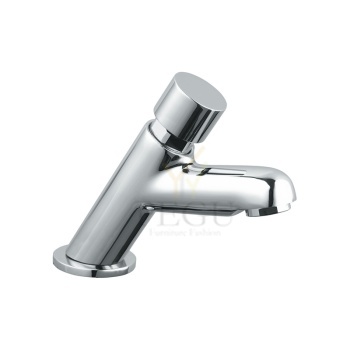

Kraanikaussi kraan eelsegatud veele, isesulguv, 15sek 3bar

Tootekood: IDR-08210
Kaubamärk:
Ühik: tk
Tarneaeg: 7-14 päeva
Hind: 115,00 €
103,50 €
Kuumakse alates: 8,80 €
Kogus: - +
   - või -

Kraanikaussi kraan eelsegatud veele, isesulguv, 15sek 3bar

Vajutava nupuga kraan

Idral

kroom

15 sek. töötsükkel 3 bar

6 l/min

Video



Sarnased tooted

Käsidušš

Tube

Tootekood Viimistlus Seeria

7666400 EAN Nr.: 5708516802853 Kroom
Käsidušš

Standardomadused:

Kummiaeraator - lihtne puhastada Veesäästu funktsioon Eco-Save
1 pihustusviis

Tootekood: D7666400 ,   Tarneaeg: 7-14 päeva
86,00 €

Sensoriga kraan Sanela R/V teras, külma/ellsegatud veele

Characteristics

  • economical aerator, rate of flow 6 l/min
  • function of automatic water stop after 5 minutes of continuous flow
  • water is flowing as long as hands are in the active range (max. range to 0,3 m)
  • water stops flowing after removal of hands from the active range of sensor after adjustable time delay from 0,25 to 7,75 sec
  • possibility of changing of time delay, active range and switching off by SLD 03
  • SLU 45 is destined for cold or premixed water under the washbasin
  • START/STOP program
Tootekood: SA-SLU 45, 24V DC ,   Tarneaeg: 14 päeva
575,00 €
Antivandaalne R/V teras piezo dušisi nupp, eelsegatud veele,  ilma el.adaptorita



AUS 11

Pressure button-controlled shower for heat regulated water










AUS 11 is a new type of shower fitting for single shower control. The fitting is designated for premixed water – with one water inlet and shower outlet elbow. Water is released and closed by an anti-vandal pressure button connected to electronics and an electromagnetic valve. The fitting is covered by a rust-free anti-vandal cover to prevent damage.

The mounting system has been designed so as to make removing the cover without using tools impossible with no bolt or screw being visible. The cover can be "pushed into" the wall level even if the mount box has been walled to an incorrect depth.

AUS 11 is identical to AUS 1P with a different design and very resistant cover sheet.

Electronics can work in two modes:

1) The button works on the START/STOP basis – water release/closing. If the water is not turned off upon the time adjusted by the user or manager (e.g. 20 seconds), the electronic system itself instructs water stopping. The user must press again to start water running. This significantly saves water as the user reduces the showering time.

2) The button works on the START/STOP basis. After the time adjusted by the manager (e.g. 3 minutes) expires there is a forced break when water cannot be released. During this time, the user is forced to leave the shower or wait. This prevents needless showering – water wasting.




Basic technical information
Water input: G 1/2“
Water pressure: 1 - 10 Bar (0,1 – 1,0 MPa)
Time of water flow: 10 s – 42,5 min in mode 1
  0 s - 42,5 min in mode 2
Power supply: 12 V, 50 Hz
Power requirement: 6 VA
Source of power supplz: ZAC 1/20 (max. 3× AUS 11)
  ZAC 1/50 (max. 8× AUS 11)
Weight: 2,0 kg


Requirements for setting up the construction
  1. Water installation set up as per picture
  2. Set-up alcove 150 x 75 mm for installation casket
  3. Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC


Complete delivery
  • installation casket
  • input and output bolting
  • electromagnetic valve
  • spherical valve
  • covering metal plate with piezo button
  • electronics


Made to order
  • SP 1 – shower arm with water flow of 9 l/min
  • SP 2 – shower arm with water flow of 7 l/min
  • SP 3 – shower arm with water flow of 7 l/min
  • ZAC - source of power supply 12V, 50Hz


Figure


A - water inlet G 1/2"
C - electricity supply cable 12 V, 50 Hz
G - water outlet into shower armG 1/2"




Download information about the product
AUS 11 data for projectants - ( 84 kB )

Tootekood: AZP-AUS 11 ,   Tarneaeg: 3-4 nädalad
375,00 €

Damixa Pine Flex Dušilifti komplekt, lift+voolik+käsidušš

Your bathroom deserves the best

Damixa's comprehensive range of shower systems and shower sets gives you the freedom of choice without compromise. Looking for a complete system with overhead shower and hand shower? Or maybe a more simple solution with just a hand shower? Whatever your need, there is a Damixa solution for your bathroom.

Beautiful Danish design and world class quality always included.

Tootekood: D766680000 ,   Tarneaeg: 7-14 päeva
127,50 € (15%)
150,00 €
Tootekood: P90597 ,   Tarneaeg: 7-14 päeva
24,70 € (5%)
26,00 €
