298 x 385 x 135 mm
ca. 500 paper towels

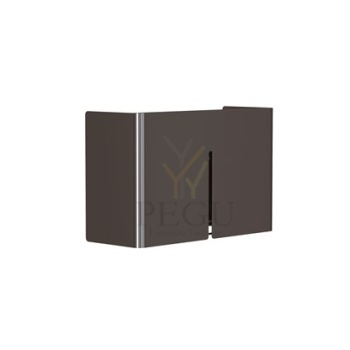

• Paper towel dispenser in robust, germ-reducing and easy-care stainless steel (AISI 304).
• For mounting behind fixed mirror on site.
• All-stainless steel housing; all corners fully welded, visible surfaces satin finished and brushed.
• With deep-drawn paper removal opening for easy paper removal.
• Designed for approx. 500 standard paper towels in zigzag fold.
  Paper size (folded): 240-250 mm x 100-115 mm. Accessible for refilling from the front through lockable drawer that can be pulled out downwards.
• Keyed alike cylinder lock in corrosion-resistant zinc die-casting.
• Wear parts can be replaced as modules.
• Mounting: With four screws.
  Depth of substructure installation: min. 140 mm.
  Height above vanity unit: min. 285 mm.
• Delivery includes fixing material, self-adhesive information label „Paper“ and one pack of paper towels.

• Weight (in kg): 5,3

General description · Towel shelf with a towel bar, chromed brass, for wall mounting · Suitable for the hotel sector, for fitting out the bathrooms in the hotel rooms. · Model suitable for public use. · With no removable components. · It normally goes along with a chromed brass tower ring or rail.

Components and Materials · 2 chromed brass arms Ø 25 mm and 1 mm thick. with a protection thickness of 9,4 µm nickel + 0,40 µm chrome. · The shelf consist of four chromed brass rods Ø 14,5 mm and 1 mm thick . · Chromed brass snap flange cover, 2 units. · Press-formed mounting flanges, 2 units. Each flange incorporates 3 screws holes of Ø 5 mm for mounting on the wall

• Square towel ring made of AISI 304 stainless steel bright finish, 0.8 mm thick, for wall mounting.

• Long lasting life thanks to the quality of its AISI 304 stainless steel construction.

• Suitable for the hotel sector, for fitting out the bathrooms in the hotel rooms and for public use.

• With no removable components.

• It normally goes along with a stainless steel soap dispenser.

• Screws and plastic plugs for brick walls are provided.
